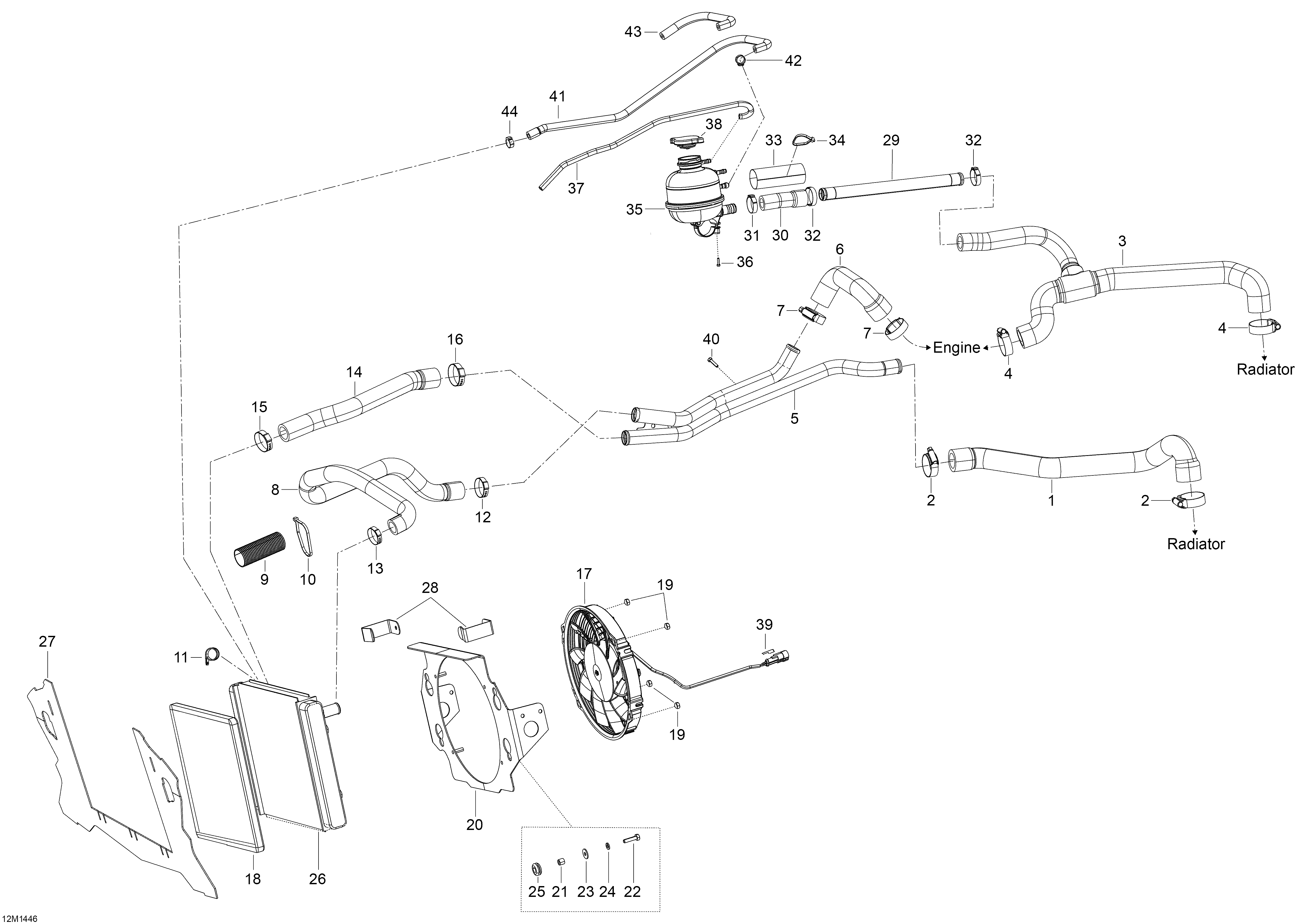

01- Cooling System для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) XU - 2014
-
№АртикулНазвание
-
1509000634 HoseHose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000805 Aba Gear ClampAba Gear Clamp
-
4509000443 Aba Gear ClampAba Gear Clamp
-
5509000800 Water PipeWater Pipe
-
6509000564 Engine Outlet HoseEngine Outlet Hose
-
7509000443 Aba Gear ClampAba Gear Clamp
-
8509000706 Hose, Engine->Air RadHose, Engine->Air Rad
-
928036 TubingTubing
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11605627008 Clamp With Rubber D=30Clamp With Rubber D=30
-
12509000443 Aba Gear ClampAba Gear Clamp
-
13293650099 Crimp ClampCrimp Clamp
-
14509000707 Hose, Front Air Rad->Tunnel RadHose, Front Air Rad->Tunnel Rad
-
15293650099 Crimp ClampCrimp Clamp
-
16509000443 Aba Gear ClampAba Gear Clamp
-
17509000838 Cooling FanCooling Fan
-
18509000718 InsulationInsulation
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20509000791 Radiator supportRadiator support
-
21605453745 BushingBushing
-
22207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
23234062410 Flat Washer 6 mmFlat Washer 6 mm
-
2420052 Spring WasherSpring Washer
-
25293720053 GrommetGrommet
-
26509000787 RadiatorRadiator
-
27509000784 Air Deflector LtsAir Deflector Lts
-
28509000703 Deflector ClipDeflector Clip
-
29509000644 PipePipe
-
30509000698 HoseHose
-
31509000442 Oetiker Gear ClampOetiker Gear Clamp
-
32293650099 Crimp ClampCrimp Clamp
-
33509000730 Protector Tube 31.75 mm - 90 mmProtector Tube 31.75 mm - 90 mm
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35509000368 Coolant TankCoolant Tank
-
36241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
37513033572 HoseHose
-
38509000180 Pressure CapPressure Cap
-
39710000992 ClipClip
-
40207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
41509000750 Breather HoseBreather Hose
-
42293650047 Crimp ClampCrimp Clamp
-
43409901800 Tubing 13 mmTubing 13 mm
-
44293650047 Crimp ClampCrimp Clamp
