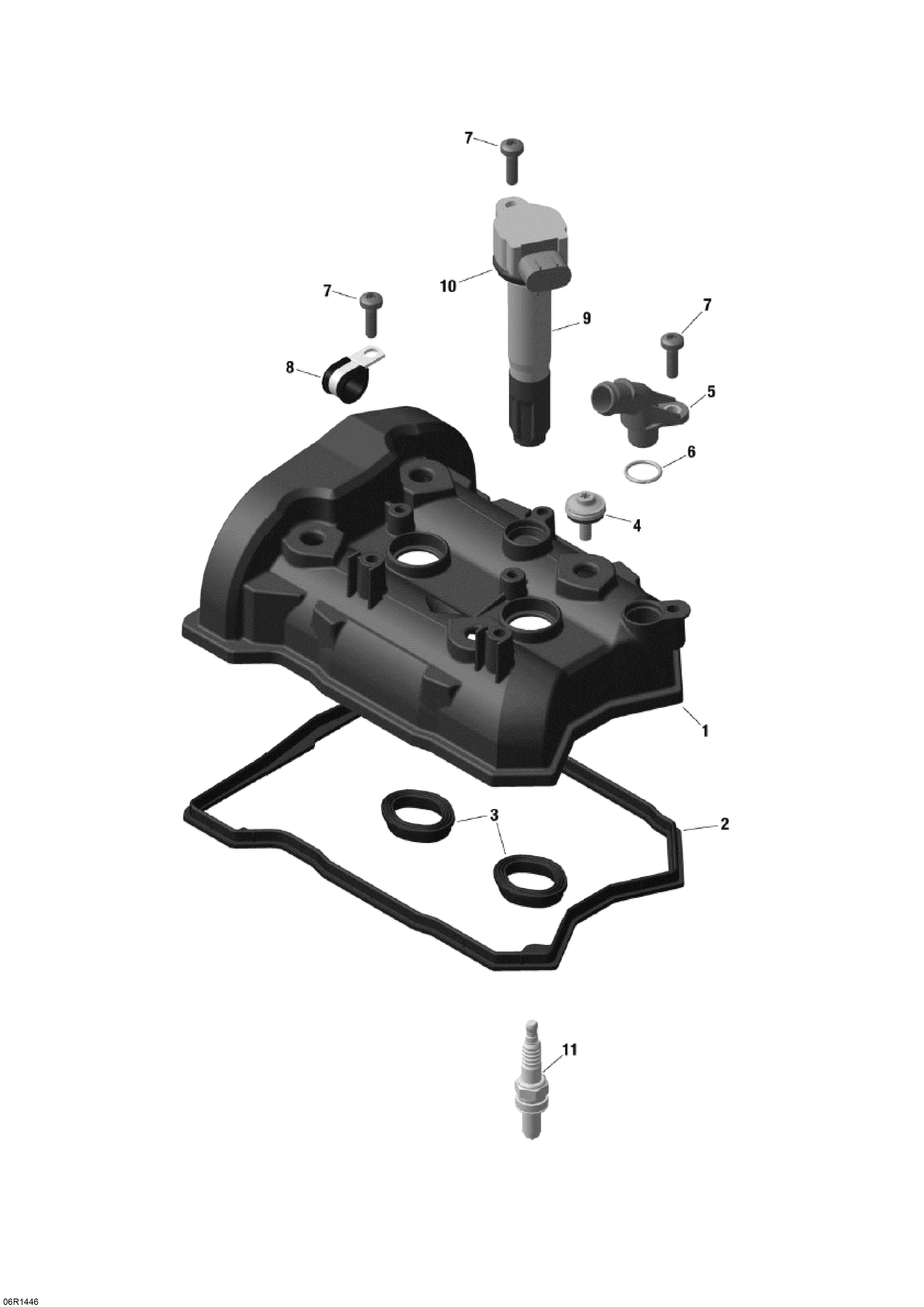

01- Valve Cover для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) XU - 2014
-
№АртикулНазвание
-
1420911040 Valve CoverValve Cover
-
2420431621 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420431750 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
4420440495 Torx Distance Screw M6Torx Distance Screw M6
-
5420611240 ConnectorConnector
-
6420631240 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
7420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420851492 Cable ClampCable Clamp
-
9420666141 Ignition CoilIgnition Coil
-
10420201430 Protection CapProtection Cap
-
11415129670 Spark Plug, NGK MR7BI-8Spark Plug, NGK MR7BI-8
