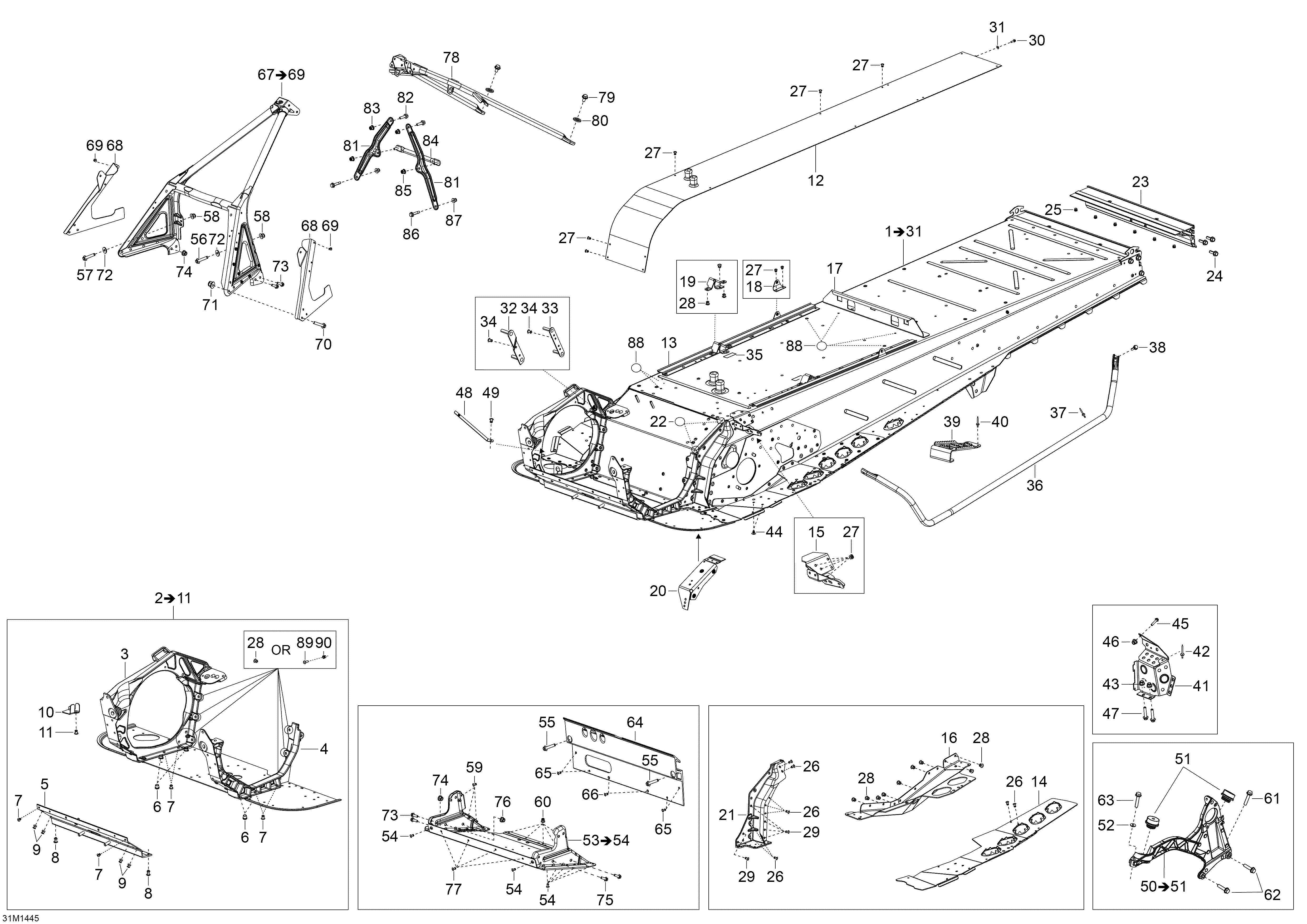

09- Frame для BRP Ski-Doo Skandic WT 600 ACE (4-strokes) XU - 2014
-
№АртикулНазвание
-
1518327873 Frame. Includes 1 To 31Frame. Includes 1 To 31
-
2518326518 E Module. Includes 2 To 11E Module. Includes 2 To 11
-
3518326328 RH Side MemberRH Side Member
-
4518326330 LH Side MemberLH Side Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10518327185 Muffler SupportMuffler Support
-
11293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
12509000867 Tunnel RadiatorTunnel Radiator
-
13518326107 Fastening railFastening rail
-
14518326895 Footrest LHFootrest LH
-
14518326896 Footrest RHFootrest RH
-
15605355235 Fastening BracketFastening Bracket
-
17518325986 Battery support plateBattery support plate
-
18518327457 Seat Box BracketSeat Box Bracket
-
19518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
19518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
20518326430 Clinch nut plateClinch nut plate
-
21518325524 Frame Corner LHFrame Corner LH
-
21518328024 Frame Corner RHFrame Corner RH
-
22518325560 Adhesive PatchAdhesive Patch
-
23518327194 Rear ProfileRear Profile
-
24207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
25293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
26390909100 Avex RivetAvex Rivet
-
27390909200 Avex RivetAvex Rivet
-
28293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
29293150183 RivetRivet
-
30205061244 Socket ScrewSocket Screw
-
32518326123 Gearbox Front PlateGearbox Front Plate
-
33518326124 Gearbox Rear PlateGearbox Rear Plate
-
34390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
35518326357 Rubber CoverRubber Cover
-
36518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
36518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
37390909100 Avex RivetAvex Rivet
-
38207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
39520000492 FootrestFootrest
-
40390909100 Avex RivetAvex Rivet
-
41518326671 Toe Hook LHToe Hook LH
-
41518326672 Toe Hook RHToe Hook RH
-
42390909200 Avex RivetAvex Rivet
-
43605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
44414644300 DartDart
-
45207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
46233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
47250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
48514054616 Spring BracketSpring Bracket
-
49390909200 Avex RivetAvex Rivet
-
50518327535 Brace Ass'y. Includes 50 To 51Brace Ass'y. Includes 50 To 51
-
51512060295 Rubber MountRubber Mount
-
52234281474 Conical Spring Washer M8Conical Spring Washer M8
-
53518326213 S Module. Includes 53 To 54S Module. Includes 53 To 54
-
54390909200 Avex RivetAvex Rivet
-
55210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
56207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
57207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
58233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
59390909100 Avex RivetAvex Rivet
-
60390909200 Avex RivetAvex Rivet
-
61207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
62207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
63207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
64518326140 Engine SupportEngine Support
-
65390909100 Avex RivetAvex Rivet
-
66293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
67518326754 Front Member Ass'y. Includes 67 To 69Front Member Ass'y. Includes 67 To 69
-
68502007077 Bumper Fastener LHBumper Fastener LH
-
68502007078 Bumper Fastener RHBumper Fastener RH
-
69390909200 Avex RivetAvex Rivet
-
70207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
71233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
72224061201 Flat WasherFlat Washer
-
73207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
74233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
75207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
76233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
77390909200 Avex RivetAvex Rivet
-
78518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
79207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
81518326848 Upper Column SupportUpper Column Support
-
82207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
83233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
84518326355 Center Column SupportCenter Column Support
-
85233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
86250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
87233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
88518325560 Adhesive PatchAdhesive Patch
-
89207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
90233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
