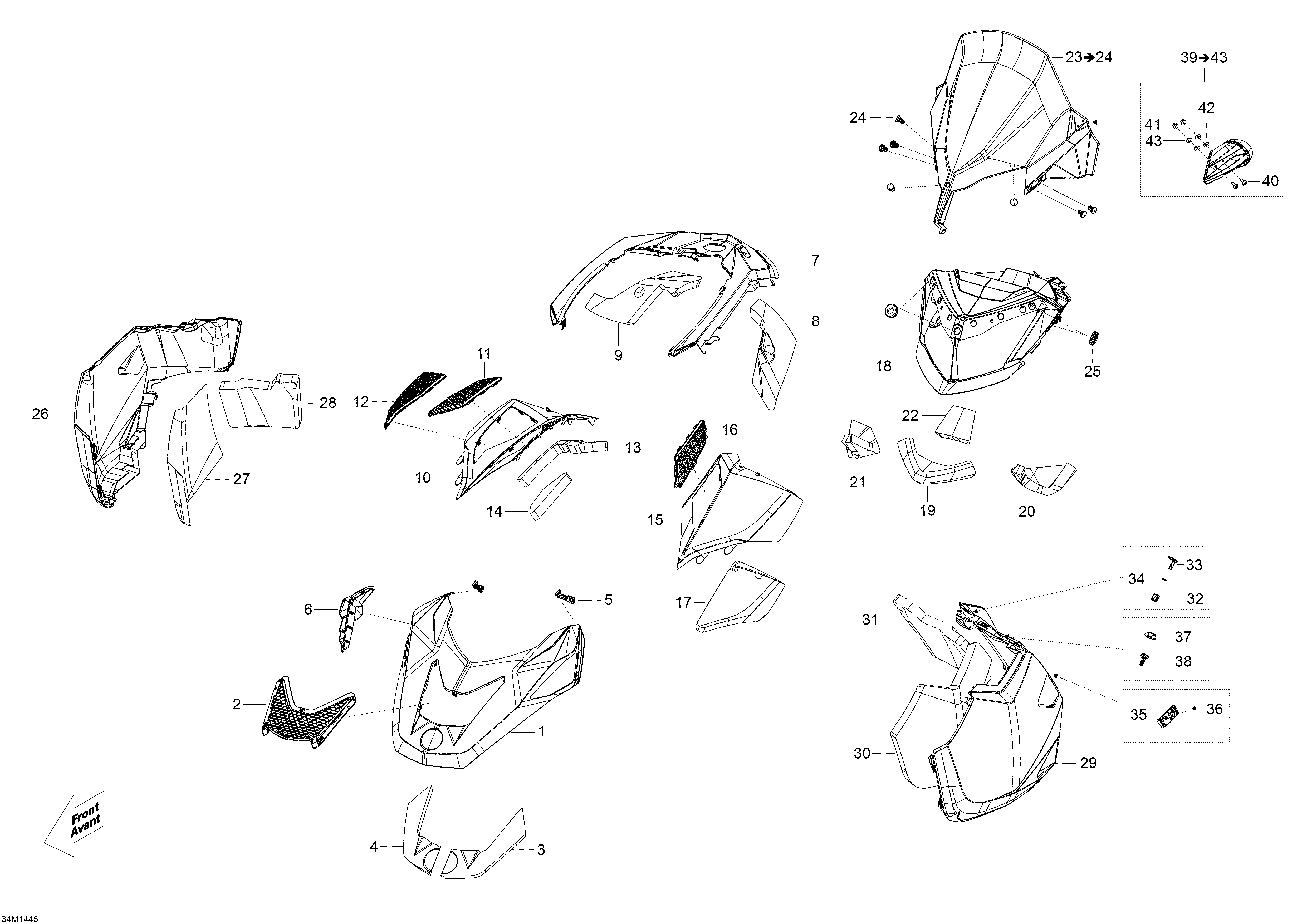

09- Hood, Windshield And Console для BRP Ski-Doo Skandic WT 600 ACE (4-strokes) XU - 2014
-
№АртикулНазвание
-
1517305523 Yellow HoodYellow Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 Latch PannelLatch Pannel
-
6517304155 Scoop GrillScoop Grill
-
7517304820 Black ConsoleBlack Console
-
8517304317 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517305525 Yellow Side Access Panel RHYellow Side Access Panel RH
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Lower Acces GrillRH Lower Acces Grill
-
13517304311 InsulatorInsulator
-
14517304312 InsulatorInsulator
-
15517305527 Yellow Side Access Panel LHYellow Side Access Panel LH
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517304272 Indicator SupportIndicator Support
-
19517304314 InsulatorInsulator
-
20517304315 InsulatorInsulator
-
21517304316 InsulatorInsulator
-
22517304319 InsulatorInsulator
-
23860200555 Windshield Ass'y. Includes 23 To 24Windshield Ass'y. Includes 23 To 24
-
24517304744 ButtonButton
-
25517303756 GrommetGrommet
-
26517304328 Black Side Panel-RhBlack Side Panel-Rh
-
27517304709 Foam RightFoam Right
-
28517304310 RH Rear FoamRH Rear Foam
-
29517304329 Black Side Panel-LHBlack Side Panel-LH
-
30517304707 Foam LHFoam LH
-
31517304309 LH Rear FoamLH Rear Foam
-
32517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
33517304296 Quarter-Turn HandleQuarter-Turn Handle
-
34517304538 Locking PlateLocking Plate
-
35517304497 Side Panel SupportSide Panel Support
-
36M36005 RivetRivet
-
37860200239 Black Latch KitBlack Latch Kit
-
38517304573 Latch-PanelLatch-Panel
-
39517304628 Mirror RH/LH. Includes 39 To 43Mirror RH/LH. Includes 39 To 43
-
40250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
41232361493 Domed Nut M6Domed Nut M6
-
42250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
43M20117 WasherWasher
