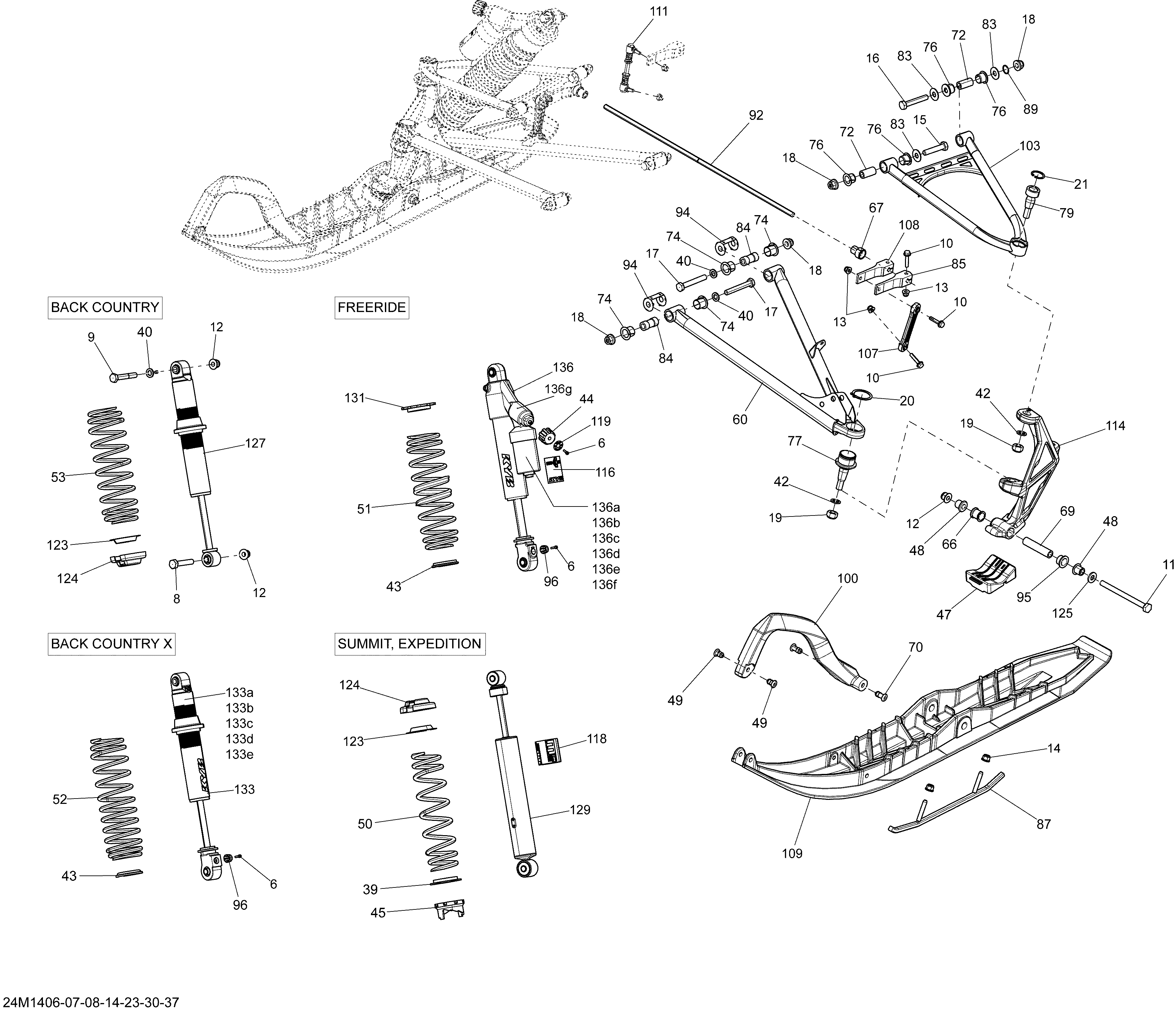

07- Front Suspension And Ski для BRP Ski-Doo SUMMIT SPORT 600 XP 146 - 2014
-
№АртикулНазвание
-
8207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
9207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
10207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
11230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
12233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
13233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
16250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
17250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
18250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
19232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
20293370035 CirclipCirclip
-
21293370070 CirclipCirclip
-
39503187500 Spring GuideSpring Guide
-
40503189564 WasherWasher
-
42503192491 WasherWasher
-
45505070150 Adjustment CamAdjustment Cam
-
47505072594 Ski StopperSki Stopper
-
48505071781 CushionCushion
-
49505071812 RetainerRetainer
-
50505072763 Deep Black SpringDeep Black Spring
-
60505072497 Black RH Lower ArmBlack RH Lower Arm
-
60505072498 Black LH Lower ArmBlack LH Lower Arm
-
66503193651 SpacerSpacer
-
67505072786 BushingBushing
-
69506133300 SpacerSpacer
-
70505072133 RetainerRetainer
-
72505072143 BushingBushing
-
74505072208 BushingBushing
-
76505072250 BushingBushing
-
77505072682 Lower Ball JointLower Ball Joint
-
83505072392 WasherWasher
-
84505072393 BushingBushing
-
87860501900 Carbide RunnerCarbide Runner
-
89505072448 O-RingO-Ring
-
92505072785 StabilisatorStabilisator
-
94505072634 Wear PlateWear Plate
-
95505072690 Leg CushionLeg Cushion
-
100505072976 Black HandleBlack Handle
-
103505073468 LH Upper Arm 39''LH Upper Arm 39''
-
103505073469 RH Upper Arm 39''RH Upper Arm 39''
-
107505073172 Double Ball Joint LinkDouble Ball Joint Link
-
108505073176 Stabilisator LeverStabilisator Lever
-
109505073281 Black DS Ski 2Black DS Ski 2
-
114505073559 White LH Ski LegWhite LH Ski Leg
-
114505073560 White RH Ski LegWhite RH Ski Leg
-
118516005535 Shock Decal, McShock Decal, Mc
-
123706200785 CapCap
-
124706200881 Spring StopperSpring Stopper
-
125503192496 WasherWasher
-
129505073181 Front ShockFront Shock
