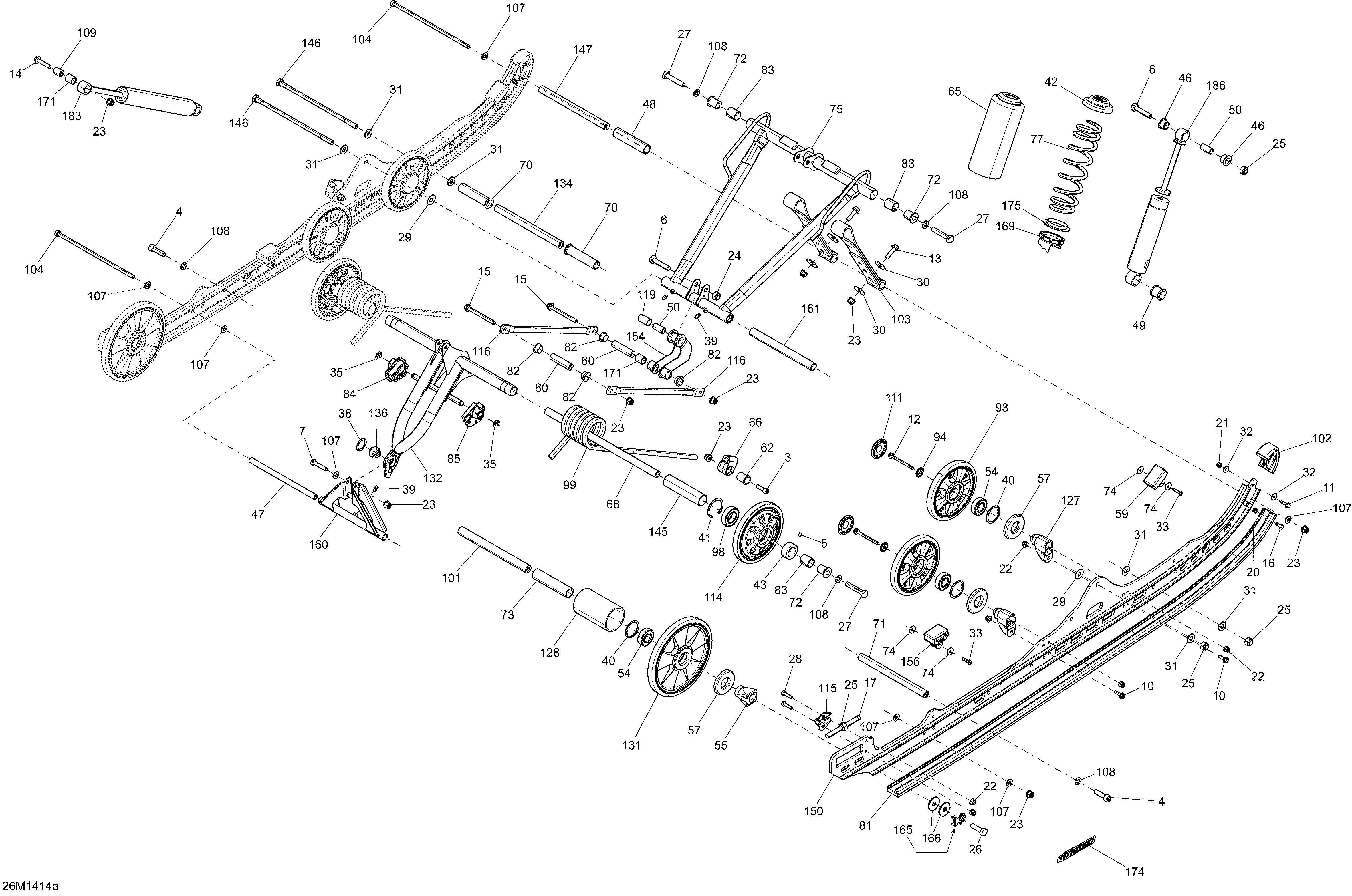

08- Rear Suspension SPORT 600, 146 для BRP Ski-Doo SUMMIT SPORT 600 XP 146 - 2014
-
№АртикулНазвание
-
3205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
4205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
5206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
6207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
7207084056 Hexagonal Screw M8 X 40Hexagonal Screw M8 X 40
-
10207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
11207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
12207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
13207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
14207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
15207688544 Hex. Flanged ScewHex. Flanged Scew
-
16208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
17230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
20232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
21233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
22233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
26250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
27250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
27250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
28250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
29250200032 WasherWasher
-
30250200128 Flat Washer 8 mmFlat Washer 8 mm
-
31250200138 WasherWasher
-
32250200140 WasherWasher
-
33293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
35293370013 E-CirclipE-Circlip
-
38293370090 Inner CirclipInner Circlip
-
39408200700 Grease FittingGrease Fitting
-
40415129371 Retaining RingRetaining Ring
-
41415129780 Retaining RingRetaining Ring
-
42706200881 Spring StopperSpring Stopper
-
43503168800 Retaining RingRetaining Ring
-
46503189117 CushionCushion
-
47503189156 Pivot Arm AxlePivot Arm Axle
-
48503189265 SpacerSpacer
-
49503189271 CushionCushion
-
50503189282 BushingBushing
-
54503190396 Ball BearingBall Bearing
-
55503190428 Rear Wheel SpacerRear Wheel Spacer
-
57503190434 Labyrinth SealLabyrinth Seal
-
59503190576 Rubber StopperRubber Stopper
-
60503190643 Axle Bar (Long)Axle Bar (Long)
-
62503190754 Retainer CushionRetainer Cushion
-
65503193663 ProtectorProtector
-
66503191183 Spring SupportSpring Support
-
68503191215 Upper ShaftUpper Shaft
-
70503191259 Center BushingCenter Bushing
-
71503191260 Axle StrapAxle Strap
-
72503191262 BushingBushing
-
73503191263 Rear SpacerRear Spacer
-
74503191273 WasherWasher
-
75503193803 Front Arm Ass'yFront Arm Ass'y
-
77503191882 Black SpringBlack Spring
-
81503191499 Slider Shoe 146''Slider Shoe 146''
-
82503191555 Swivel BushingSwivel Bushing
-
83503191556 Extended BushingExtended Bushing
-
84503191565 LH Cam AdjusterLH Cam Adjuster
-
85503191566 RH Cam AdjusterRH Cam Adjuster
-
93503191755 Black Wheel Ass'y, 152 mmBlack Wheel Ass'y, 152 mm
-
94503191820 Wheel Cup M6Wheel Cup M6
-
98503191982 Ball BearingBall Bearing
-
99503193003 Black LH Spring SquareBlack LH Spring Square
-
99503193002 Black RH Spring SquareBlack RH Spring Square
-
101503192276 Rear Wheel AxleRear Wheel Axle
-
102503192299 Runner ProtectorRunner Protector
-
103503192360 Stopper StrapStopper Strap
-
104503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
107503192494 WasherWasher
-
108503192496 WasherWasher
-
109503192606 Rear Shock AxleRear Shock Axle
-
111503192771 Black Wheel CapBlack Wheel Cap
-
114503192808 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
115503192814 TensionerTensioner
-
116503192900 Acceleration Link RodAcceleration Link Rod
-
119503193037 BushingBushing
-
127503193082 Casted SupportCasted Support
-
128503193097 BushingBushing
-
131503193098 Black Wheel Ass'y, 200 mmBlack Wheel Ass'y, 200 mm
-
132503193118 Rear ArmRear Arm
-
134503193142 Pivot AxlePivot Axle
-
136503193148 Spherical BearingSpherical Bearing
-
145503193218 BushingBushing
-
146503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
147503193332 Strap AxleStrap Axle
-
150503193345 Runner 146Runner 146
-
154503193464 RockerRocker
-
156503193504 Rubber StopperRubber Stopper
-
160503193699 Pivot ArmPivot Arm
-
161503193702 Lower AxleLower Axle
-
165503194073 Lock TabLock Tab
-
166506150000 Washer 10 mmWasher 10 mm
-
169505070150 Adjustment CamAdjustment Cam
-
171505072663 Leg CushionLeg Cushion
-
174516006381 Runner DecalRunner Decal
-
175503191872 Spring GuideSpring Guide
-
183503193189 Rear ShockRear Shock
-
186503192209 Center ShockCenter Shock
