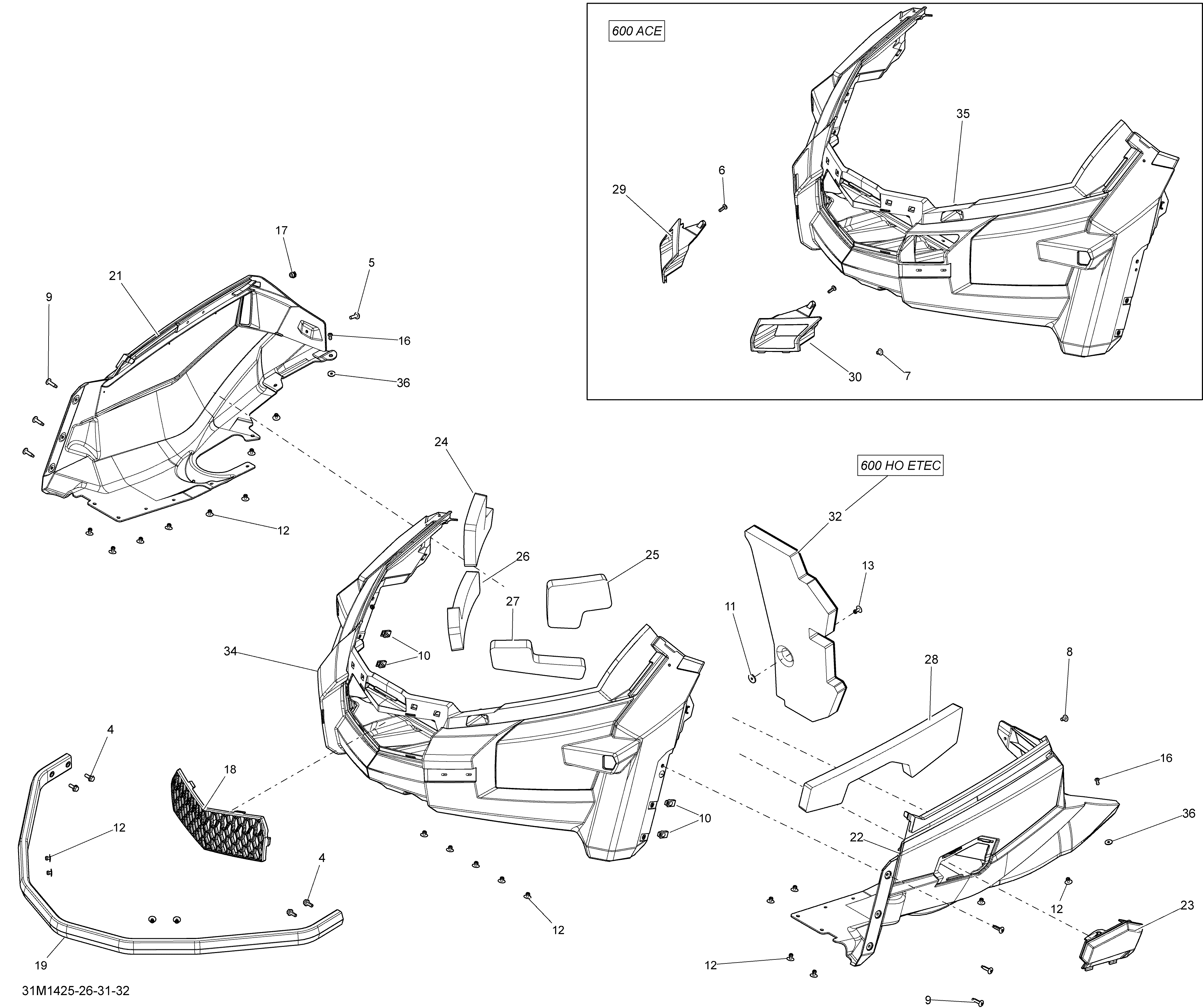

09- Bottom Pan для BRP Ski-Doo TUNDRA SPORT 600ACE XU - 2014
-
№АртикулНазвание
-
4207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
7250000210 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
8250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
9250000618 Torx Screw M6 X 25Torx Screw M6 X 25
-
10250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
18502006887 Botton Pan GrillBotton Pan Grill
-
19502006963 Anodized- Front BumperAnodized- Front Bumper
-
21502006965 Black RH Bottom PanBlack RH Bottom Pan
-
22502006966 Black LH Bottom PanBlack LH Bottom Pan
-
23502006970 Black Bottom Pan DoorBlack Bottom Pan Door
-
24502007204 RH Upper Bottom Pan FoamRH Upper Bottom Pan Foam
-
25502007205 LH Upper Bottom Pan FoamLH Upper Bottom Pan Foam
-
26502007206 RH Lower Bottom Pan FoamRH Lower Bottom Pan Foam
-
27502007207 LH Lower Bottom Pan FoamLH Lower Bottom Pan Foam
-
28502007208 LH Bottom Pan FoamLH Bottom Pan Foam
-
29502007127 RH Air InletRH Air Inlet
-
30502007128 LH Air InletLH Air Inlet
-
35502007362 Bottom PanBottom Pan
-
36517124300 WasherWasher
