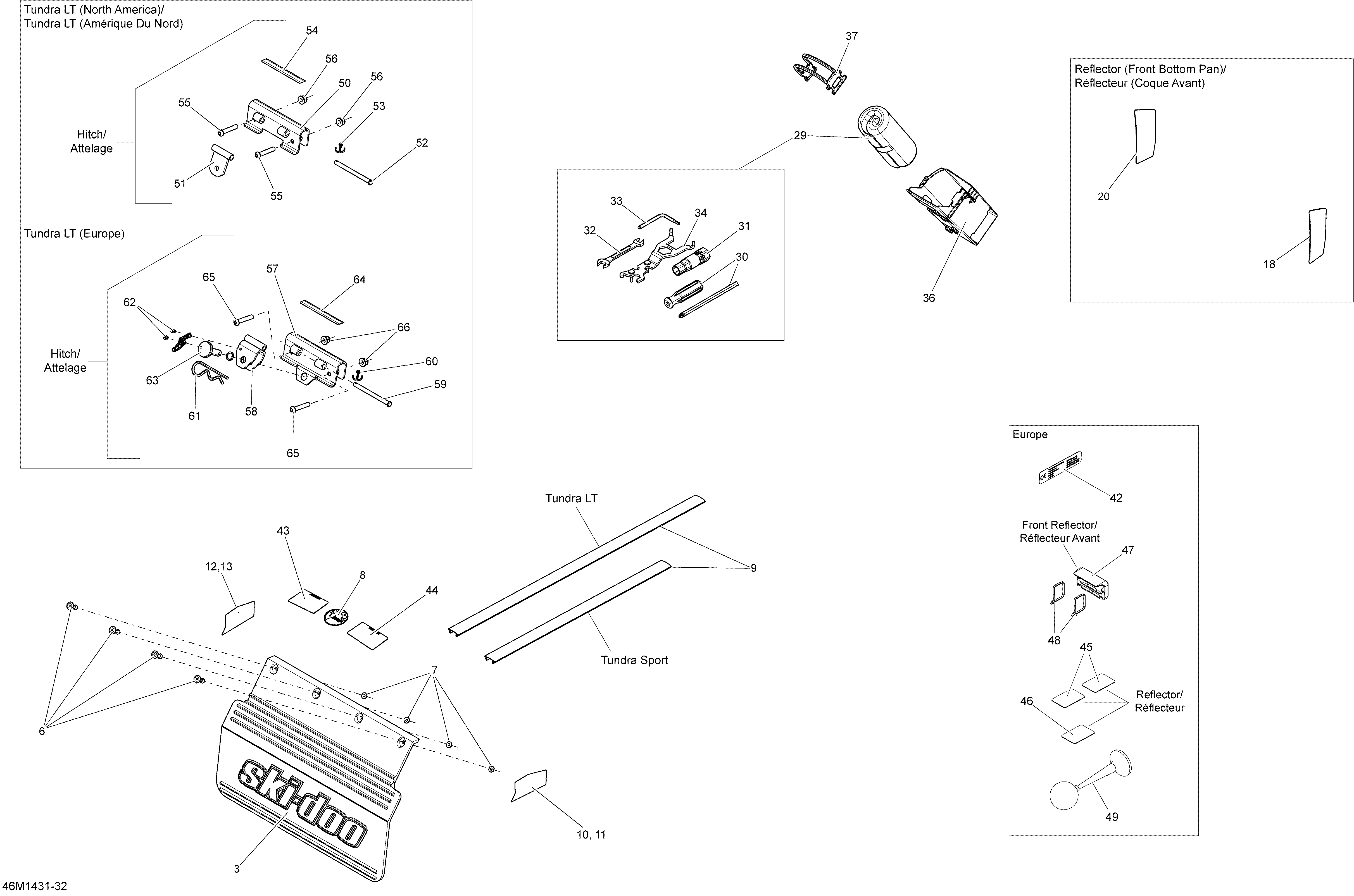

09- Utilities для BRP Ski-Doo TUNDRA SPORT 600ACE XU - 2014
-
№АртикулНазвание
-
3520000949 Snow GuardSnow Guard
-
7517124300 WasherWasher
-
8219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
9520000829 Radiator TrimRadiator Trim
-
10520000881 Red RH Rear Reflector. Model-North AmericaRed RH Rear Reflector. Model-North America
-
12520000880 Red LH Rear Reflector. Model-North AmericaRed LH Rear Reflector. Model-North America
-
18520000891 Yellow RH Front ReflectorYellow RH Front Reflector
-
20520000892 Yellow LH Front ReflectorYellow LH Front Reflector
-
29529000066 Tool Kit. Includes 29 to 34Tool Kit. Includes 29 to 34
-
30529000004 Screw DriverScrew Driver
-
31529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
32529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
33520001142 Spacing ToolSpacing Tool
-
34520000988 Wrench SuspensionWrench Suspension
-
36520000894 Tool Kit RackTool Kit Rack
-
37520000528 LatchLatch
-
43516006431 LH Warning Decal, SafetyLH Warning Decal, Safety
-
44516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
