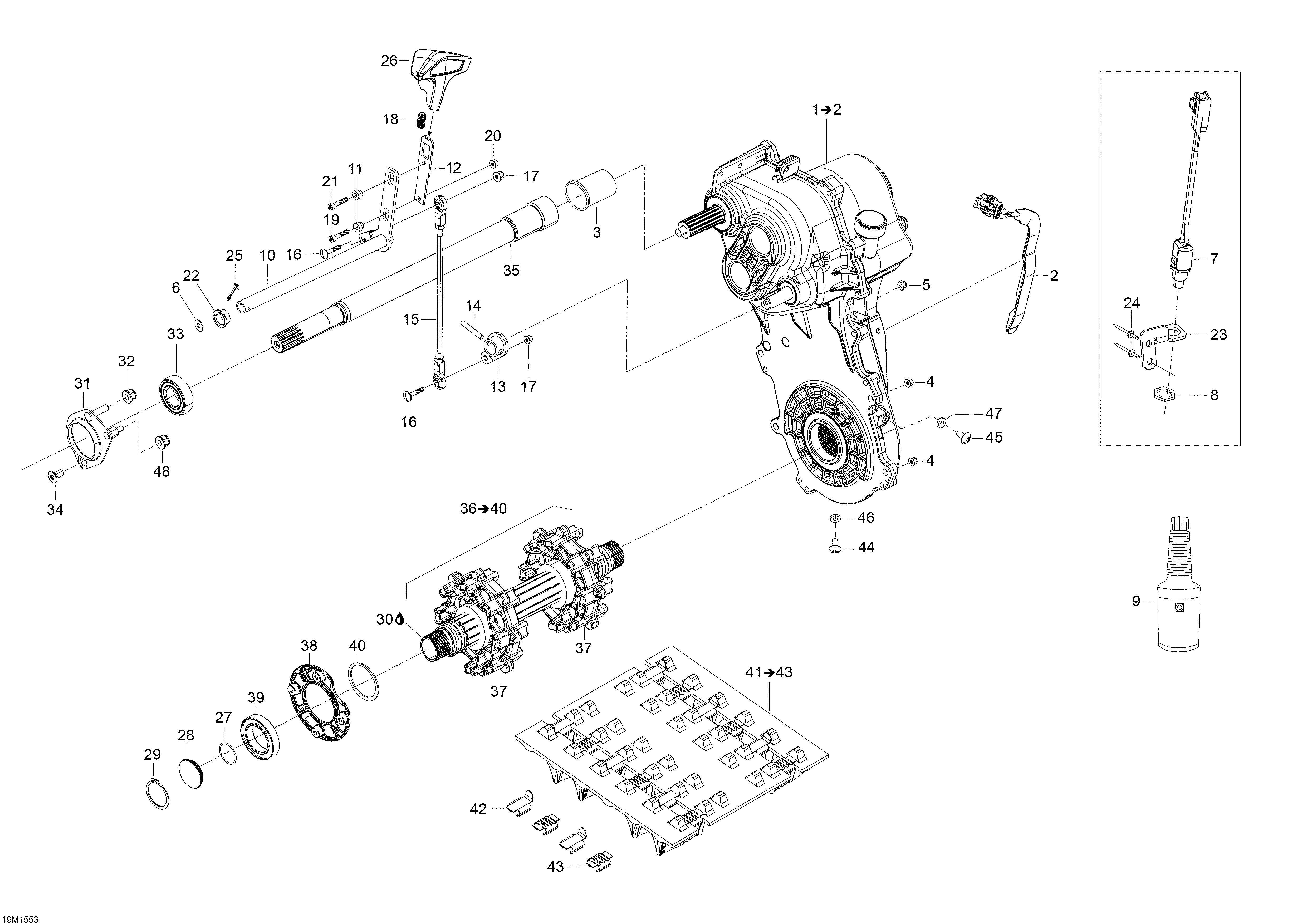

05- Drive System _19M1553 для BRP Ski-Doo Expedition LE 600 E-TEC - 2015
-
№АртикулНазвание
-
1619230059 Transmission Ass'y (High Ratio). Includes 1 To 2Transmission Ass'y (High Ratio). Includes 1 To 2
-
2504152896 SensorSensor
-
3504153054 Protective RubberProtective Rubber
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
6503189273 WasherWasher
-
7515176472 Switch Ass'ySwitch Ass'y
-
8250000373 Brass NutBrass Nut
-
10504153288 Lever ShifterLever Shifter
-
11504152787 SleeveSleeve
-
12504153287 Shifter ArmShifter Arm
-
13504153280 Welded LeverWelded Lever
-
1441012 PinPin
-
15504153258 Shifter RodShifter Rod
-
16250000677 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
17232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
18504152882 SpringSpring
-
19205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
20233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
21250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
22504152890 BearingBearing
-
23504152902 Sensor BracketSensor Bracket
-
24293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
25250400035 Cotter PinCotter Pin
-
26504152837 HandleHandle
-
27293300122 O-RingO-Ring
-
28504152619 Magnetic CapMagnetic Cap
-
29504152572 CirclipCirclip
-
31504153187 Bearing HousingBearing Housing
-
32233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
33293350074 Ball BearingBall Bearing
-
34235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
35504152963 Counter ShaftCounter Shaft
-
36504153210 Drive Axle Ass'y. Includes 36 To 40Drive Axle Ass'y. Includes 36 To 40
-
38504152949 Housing BearingHousing Bearing
-
39293350059 Ball BearingBall Bearing
-
40504153207 ShimShim
-
41605613004 Track 500x39xx (38). Model-Europe, Includes 41 To 43Track 500x39xx (38). Model-Europe, Includes 41 To 43
-
41504152817 Track Ass'y. Model-North-America, Includes 41 To 43Track Ass'y. Model-North-America, Includes 41 To 43
-
42415129528 Track GuideTrack Guide
-
43504152651 CleatCleat
-
44619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
45619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
46615580812 Gasket RingGasket Ring
-
47619230047 Seal RingSeal Ring
-
48233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
