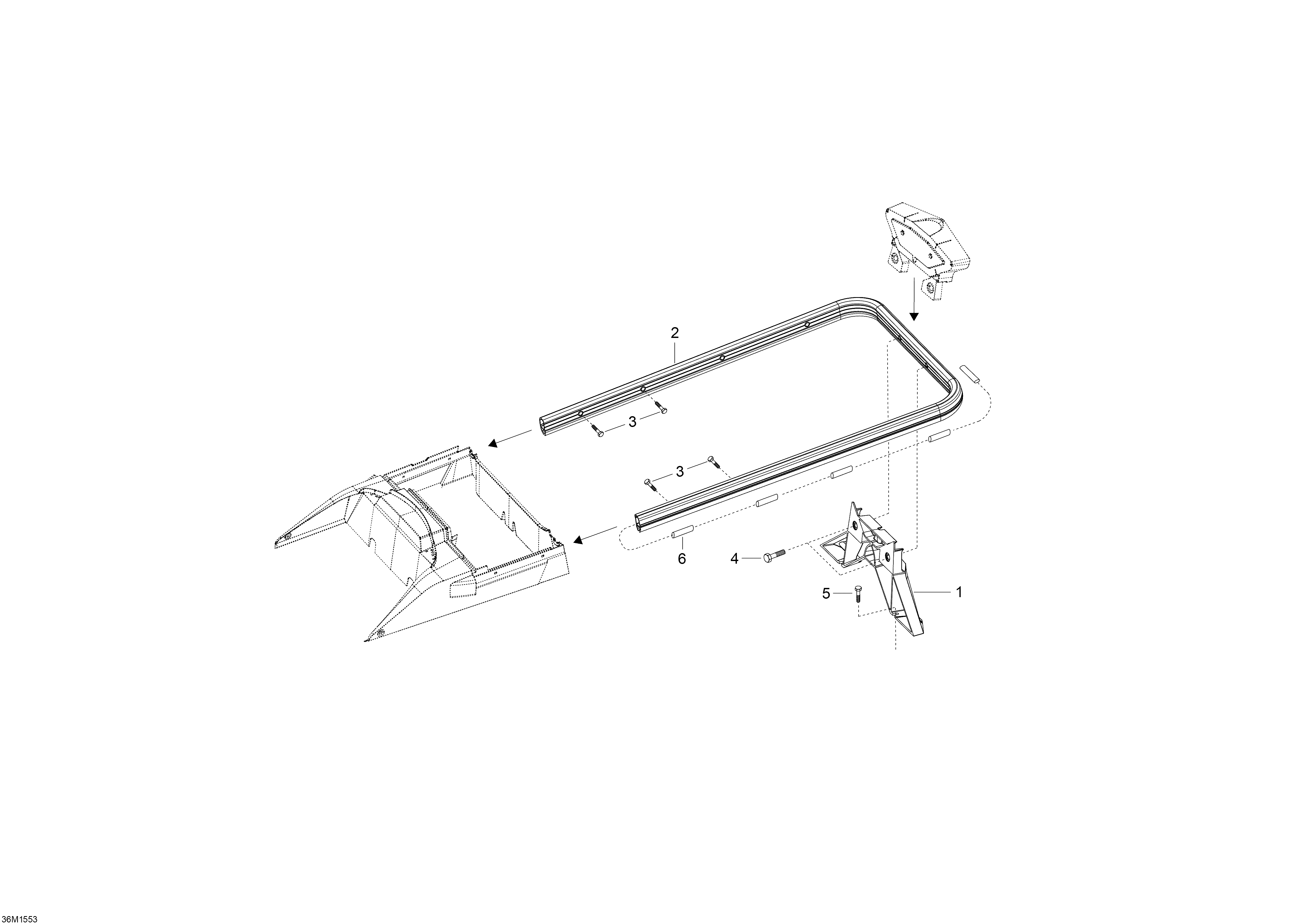

09- Luggage Rack _36M1553 для BRP Ski-Doo Expedition LE 600 E-TEC - 2015
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000563 Black Rear BumperBlack Rear Bumper
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207663094 Hex. Flanged ScrewHex. Flanged Screw
-
5207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
6511000657 Support HoseSupport Hose
