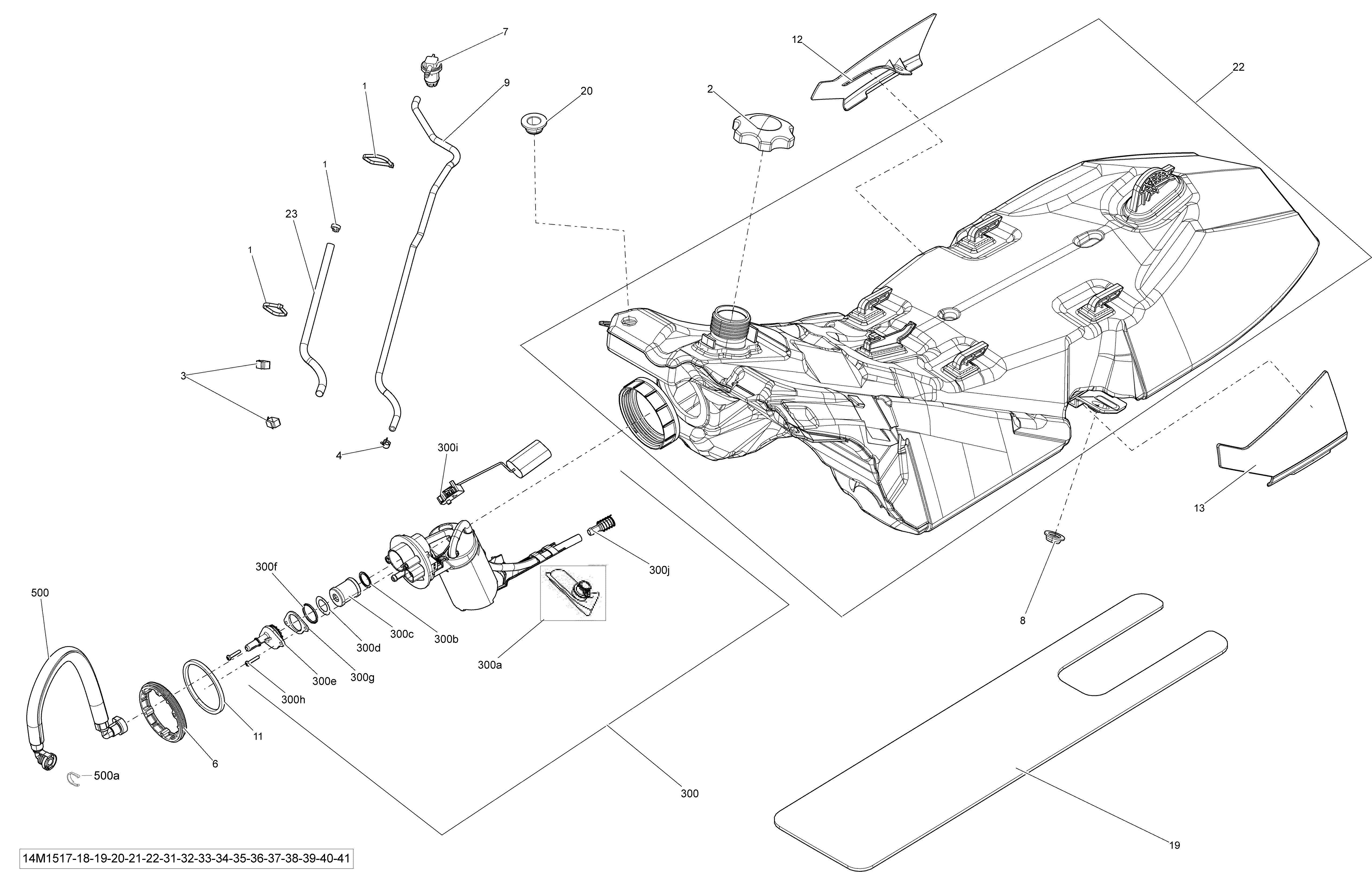

02- Fuel System _14M1541 для BRP Ski-Doo Expedition Sport 900ACE XS154 - 2015
-
№АртикулНазвание
-
1414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2513033720 Fuel Tank Cap. Model-North AmericaFuel Tank Cap. Model-North America
-
2513033721 Fuel Tank Cap. Model-EuropeFuel Tank Cap. Model-Europe
-
4414554800 Spring ClampSpring Clamp
-
6513033180 RingRing
-
7513033188 Check ValveCheck Valve
-
8513033326 Shoulder BushingShoulder Bushing
-
9415080200 Hose, PolyurethaneHose, Polyurethane
-
11513033334 GasketGasket
-
19513033588 Insulating FoamInsulating Foam
-
20513033596 GrommetGrommet
-
22513033667 Fuel TankFuel Tank
-
23504153074 Protector TubeProtector Tube
-
300513033654 Fuel Pump Ass'y. Includes 300 To 300jFuel Pump Ass'y. Includes 300 To 300j
-
300a415129451 Fuel FilterFuel Filter
-
300b415129511 O-RingO-Ring
-
300c415129510 Fuel FilterFuel Filter
-
300d415129512 Wave WasherWave Washer
-
300e415129685 CoverCover
-
300f415129509 O-RingO-Ring
-
300g415129569 Fuel Pump RingFuel Pump Ring
-
300h415129513 ScrewScrew
-
300i415129671 Fuel Level SensorFuel Level Sensor
-
300j414872100 Fuel FilterFuel Filter
-
500513033582 Hose Ass'y. Includes 500 To 500aHose Ass'y. Includes 500 To 500a
-
500a513033135 Locking ClipLocking Clip
