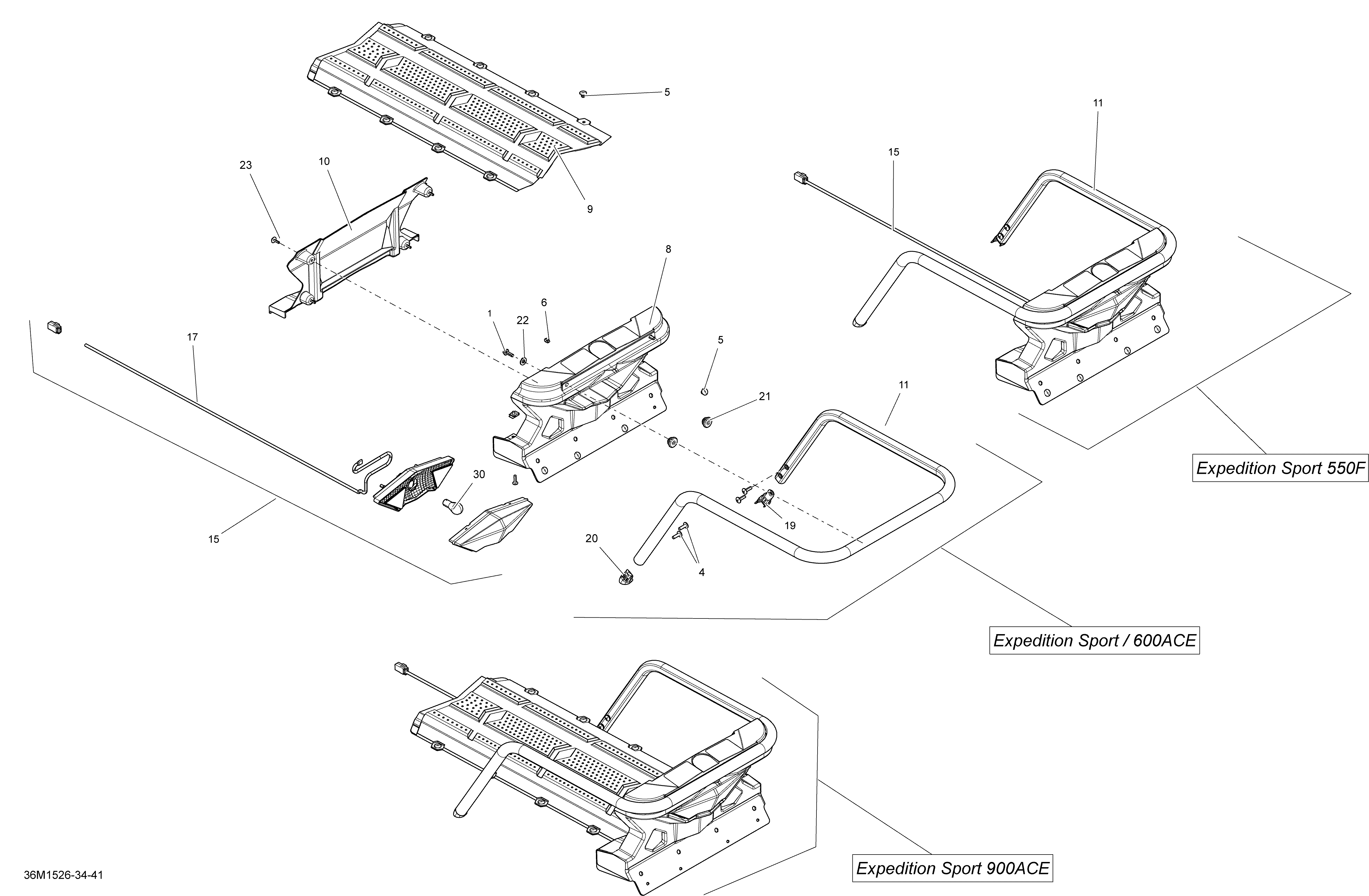

09- Luggage Rack _36M1541 для BRP Ski-Doo Expedition Sport 900ACE XS154 - 2015
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
4250000420 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
5293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
6293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
8511000625 Rear Light SupportRear Light Support
-
9511000681 Radiator Cover, 154''Radiator Cover, 154''
-
10511000701 Rear Cover SupportRear Cover Support
-
11511000705 Luggage RackLuggage Rack
-
15520000679 Rear Light Ass'yRear Light Ass'y
-
17520000680 Wiring Harness Ass'yWiring Harness Ass'y
-
19520000985 RH CapRH Cap
-
20520000986 LH CapLH Cap
-
21705003666 Rubber GrommetRubber Grommet
-
22234062410 Flat Washer 6 mmFlat Washer 6 mm
-
23250000725 Screw M4 X 16Screw M4 X 16
-
30520000758 BulbBulb
