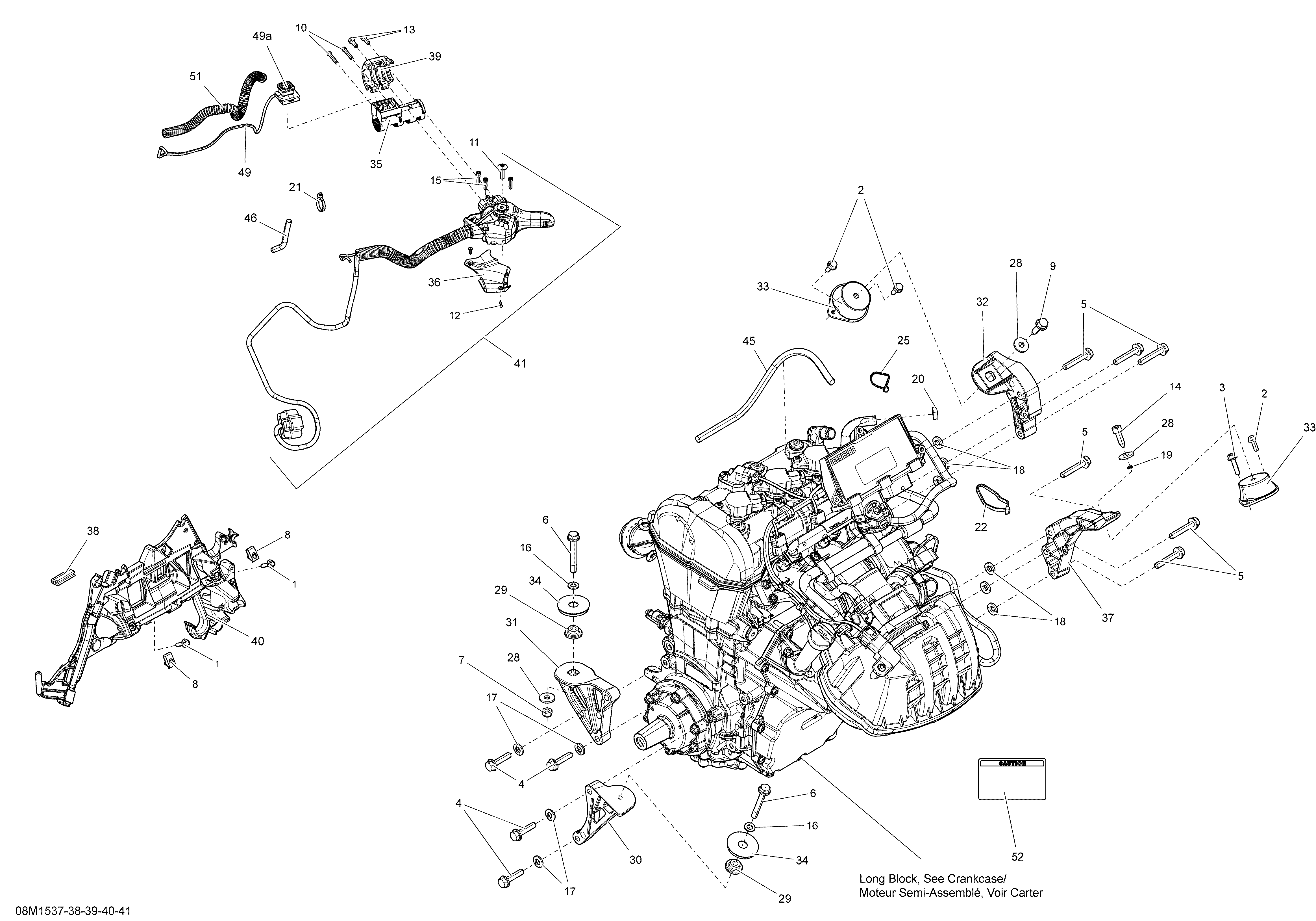

01- Engine _08M1539 для BRP Ski-Doo GSX LE 900ACE XS120 - 2015
-
№АртикулНазвание
-
1207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
2207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
3207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
5207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
6207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
7232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
8250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
9250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
10250000263 Torx Screw #8-18Torx Screw #8-18
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000623 Torx Screw M2.9 x 9.5Torx Screw M2.9 x 9.5
-
13250000632 Torx Screw M5 X 14Torx Screw M5 X 14
-
14250000639 Cone Screw, M8 X 25Cone Screw, M8 X 25
-
15250000671 Torx ScrewTorx Screw
-
16250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
17250200146 Conical Spring Washer M8Conical Spring Washer M8
-
18250200157 Conical Spring Washer M8Conical Spring Washer M8
-
19293300123 O-RingO-Ring
-
20293650025 Oetiker Gear ClampOetiker Gear Clamp
-
21293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
22293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28503183200 Washer, YellowWasher, Yellow
-
29512060285 SpacerSpacer
-
30512060660 Rear Support, PTORear Support, PTO
-
31512060661 Front Support, PTOFront Support, PTO
-
32512060663 Front Support, MAGFront Support, MAG
-
33512060729 Rubber MountRubber Mount
-
34512060826 StopperStopper
-
35512060844 SupportSupport
-
36512060862 CapCap
-
37512060894 Rear Support, MAGRear Support, MAG
-
38271000110 Protection TrimProtection Trim
-
39512060987 Front HousingFront Housing
-
40512060994 Module SupportModule Support
-
41512061017 Housing Ass'y. Include 41aHousing Ass'y. Include 41a
-
41a415130047 Handle Assembly kitHandle Assembly kit
-
45512061067 Protector TubeProtector Tube
-
46219702532 Protector Tube 25 mm - 210 mmProtector Tube 25 mm - 210 mm
-
49515177362 Kill Switch. Includes 49 To 49aKill Switch. Includes 49 To 49a
-
49a515175232 Male TerminalMale Terminal
-
51515177716 Protector TubeProtector Tube
-
52516005521 Caution Decal, Oil LevelCaution Decal, Oil Level
