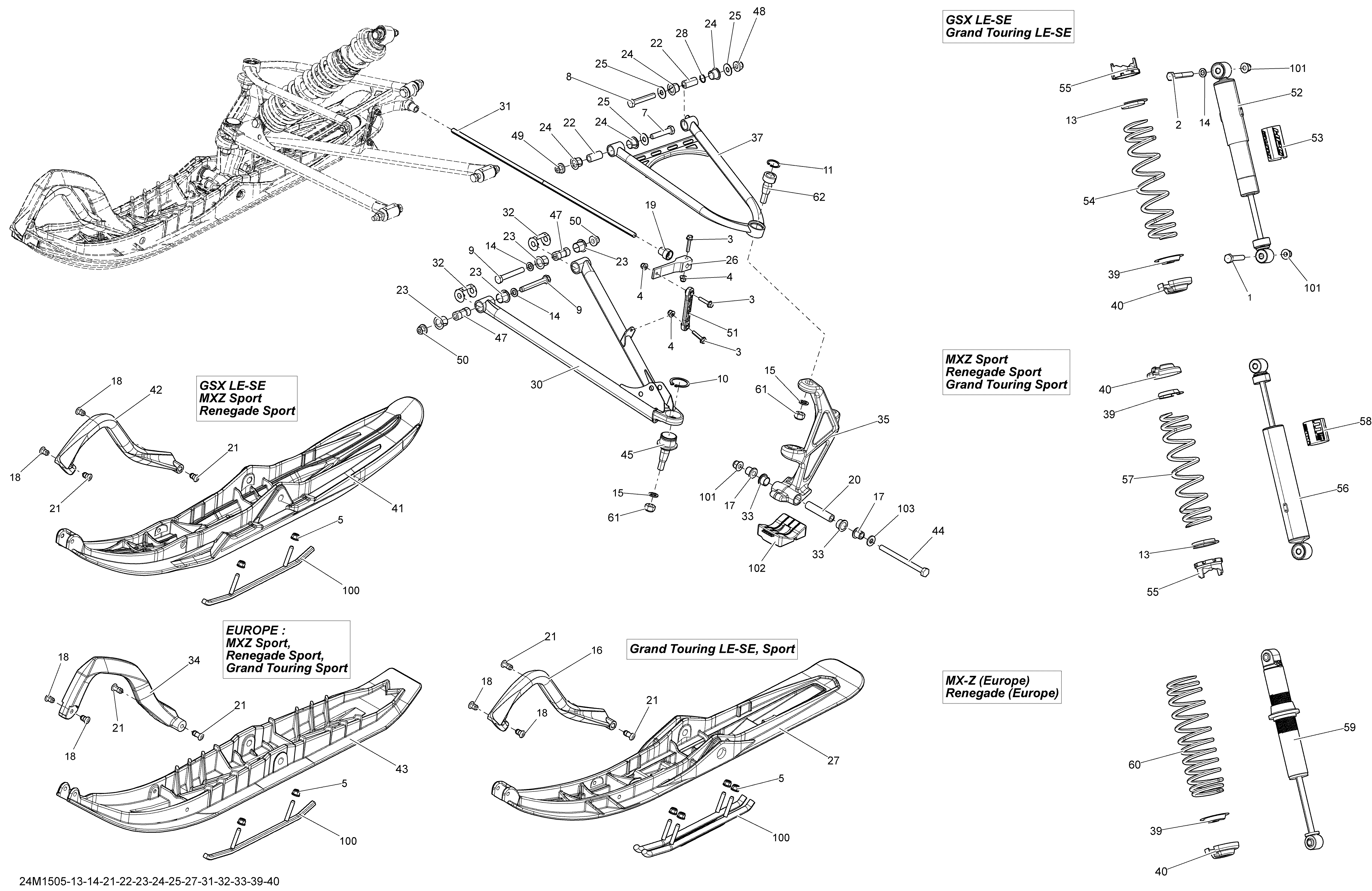

07- Front Suspension And Ski _24M1539 для BRP Ski-Doo GSX LE 900ACE XS120 - 2015
-
№АртикулНазвание
-
1207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
2207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
3207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
4233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
8250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
9250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
10293370035 CirclipCirclip
-
11293370070 CirclipCirclip
-
13503187500 Spring GuideSpring Guide
-
14503189564 WasherWasher
-
15503192491 WasherWasher
-
17505071781 CushionCushion
-
18505071812 RetainerRetainer
-
19505072064 BushingBushing
-
20506133300 SpacerSpacer
-
21505072133 RetainerRetainer
-
22505072143 BushingBushing
-
23505072208 BushingBushing
-
24505072250 BushingBushing
-
25505072392 WasherWasher
-
26505072394 Stabilisator LeverStabilisator Lever
-
28505072448 O-RingO-Ring
-
30505072664 Black RH Lower ArmBlack RH Lower Arm
-
30505072665 Black LH Lower ArmBlack LH Lower Arm
-
31505072602 StabilisatorStabilisator
-
32505072634 Wear PlateWear Plate
-
33505072690 Leg CushionLeg Cushion
-
35505073007 Clear LH Ski LegClear LH Ski Leg
-
35505073008 Clear RH Ski LegClear RH Ski Leg
-
37505073462 Black LH Upper Arm, 42''Black LH Upper Arm, 42''
-
37505073463 Black RH Upper Arm, 42''Black RH Upper Arm, 42''
-
39706200785 CapCap
-
40706200881 Spring StopperSpring Stopper
-
41505072855 Deep Black RH Pilot Ski 5.7 Ass'yDeep Black RH Pilot Ski 5.7 Ass'y
-
41505072854 Deep Black LH Pilot Ski 5.7 Ass'yDeep Black LH Pilot Ski 5.7 Ass'y
-
42505071059 Viper Red HandleViper Red Handle
-
44250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
45505072682 Lower Ball JointLower Ball Joint
-
47505072209 BushingBushing
-
48250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
50250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
51505072204 Double Ball Joint LinkDouble Ball Joint Link
-
52505073235 Front ShockFront Shock
-
53516005533 Shock Decal, HPGShock Decal, HPG
-
54505072767 Deep Black SpringDeep Black Spring
-
55505073625 Adjustement CamAdjustement Cam
-
61232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
62505072913 Upper Ball JointUpper Ball Joint
-
100860201044 Carbide Runner KitCarbide Runner Kit
-
101233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
102505072594 Ski StopperSki Stopper
-
103503192496 WasherWasher
