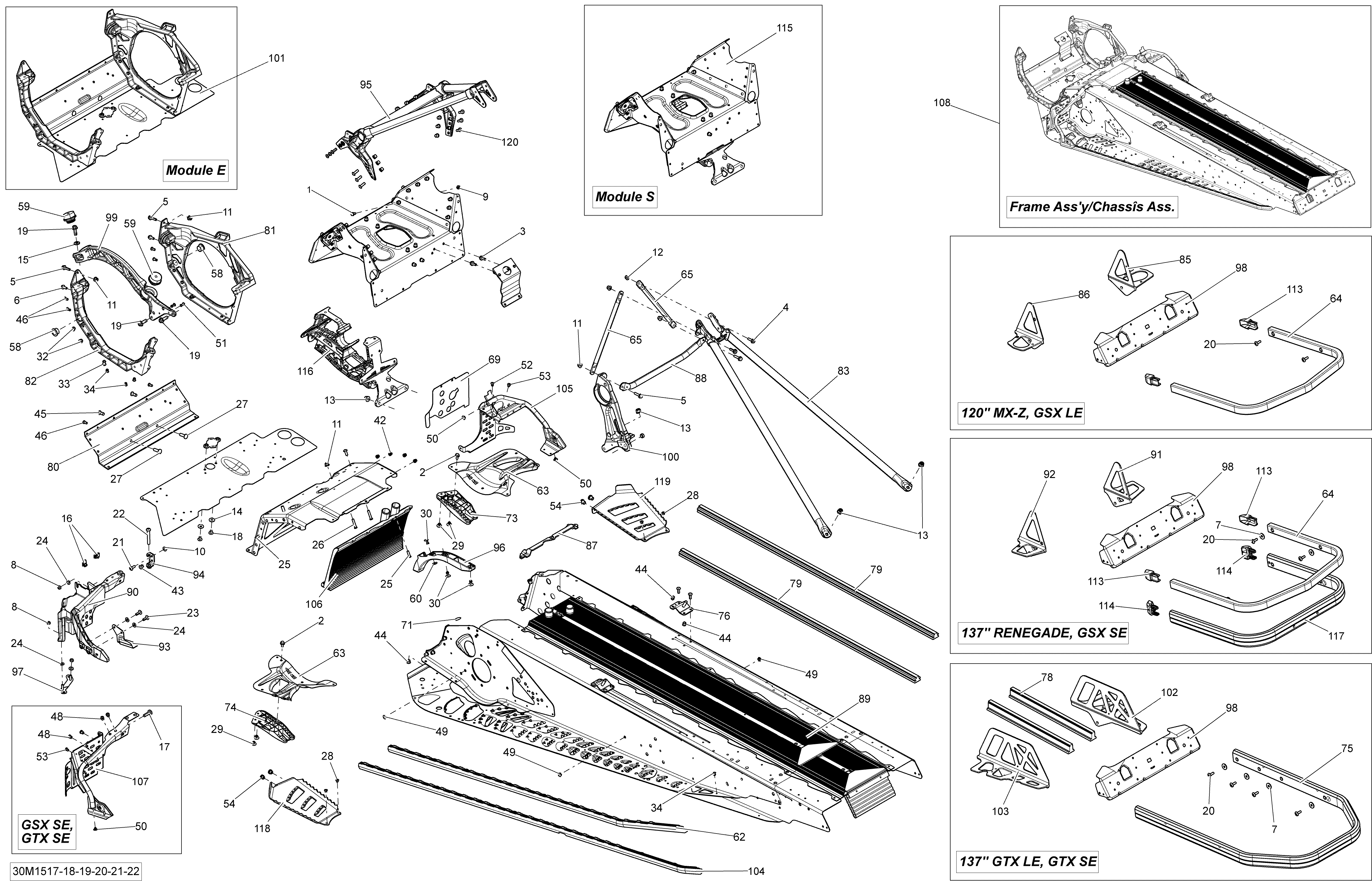

09- Frame SE_30M1521 для BRP Ski-Doo GSX SE 1200 XR137 - 2015
-
№АртикулНазвание
-
1207161444 Hex. Screw M6 X 14Hex. Screw M6 X 14
-
2207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
10233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14234062410 Flat Washer 6 mmFlat Washer 6 mm
-
15234281474 Conical Spring Washer M8Conical Spring Washer M8
-
16250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
17250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
18250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
19250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
21250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
22250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
23250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
24250200039 Flat WasherFlat Washer
-
25250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
26250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
27250300038 Clinch StudClinch Stud
-
29293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
32293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
33293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
34293150144 Stavex RivetStavex Rivet
-
42293150146 Henrob RivetHenrob Rivet
-
43293150147 Hemlock RivetHemlock Rivet
-
44293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
45293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
46293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
48293450268 InsertInsert
-
49293730047 Black Dart 8 mmBlack Dart 8 mm
-
49293730060 Black Dart 10 mmBlack Dart 10 mm
-
50293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
51390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
52390909100 Avex RivetAvex Rivet
-
53390909200 Avex RivetAvex Rivet
-
54293450275 InsertInsert
-
58505073317 Leg CushionLeg Cushion
-
59512060295 Rubber MountRubber Mount
-
60517124300 WasherWasher
-
62518324812 RH RollerRH Roller
-
62518324813 LH RollerLH Roller
-
63518324874 RH ReinforcementRH Reinforcement
-
63518324875 LH ReinforcementLH Reinforcement
-
64518325481 Black Rear BumperBlack Rear Bumper
-
65518325114 Upper Column SupportUpper Column Support
-
66518325371 MAG Engine SupportMAG Engine Support
-
69518325418 Heat ShieldHeat Shield
-
71518325560 Adhesive PatchAdhesive Patch
-
73518325782 RH DeflectorRH Deflector
-
74518325783 LH DeflectorLH Deflector
-
76518325973 RH Rear BaseRH Rear Base
-
76518325974 LH Rear BaseLH Rear Base
-
80518326198 Front MemberFront Member
-
81518326328 RH Side MemberRH Side Member
-
82518326330 LH Side MemberLH Side Member
-
83518326559 Rear MemberRear Member
-
85518326654 RH Slide Suspension BracketRH Slide Suspension Bracket
-
86518326655 LH Slide Suspension BracketLH Slide Suspension Bracket
-
87518326656 SealSeal
-
88518326657 Center Column SupportCenter Column Support
-
89518326641 Rear Radiator Ass'yRear Radiator Ass'y
-
90518326820 LH StirupLH Stirup
-
91518326954 RH Suspension BracketRH Suspension Bracket
-
92518326955 LH Suspension BracketLH Suspension Bracket
-
93518326960 SupportSupport
-
94518326961 U-AttachU-Attach
-
95518326970 Front MemberFront Member
-
96518326973 Front ProtectorFront Protector
-
97518326986 AttachAttach
-
98518327105 Rear CapRear Cap
-
99518327392 Brace Ass'yBrace Ass'y
-
100518327460 Pulley SupportPulley Support
-
101518327485 E ModuleE Module
-
104518325377 RH RollerRH Roller
-
104518327860 LH RollerLH Roller
-
105518327863 RH StirupRH Stirup
-
106518327907 Front Radiator Ass'yFront Radiator Ass'y
-
107518327935 LH StirupLH Stirup
-
108415129910 Frame Ass'yFrame Ass'y
-
113520000840 Black CapBlack Cap
-
115518328325 Cross Member S ModuleCross Member S Module
-
116518327487 Front Suspension Support. Included With 518328320 S ModuleFront Suspension Support. Included With 518328320 S Module
-
120293150146 Henrob RivetHenrob Rivet
