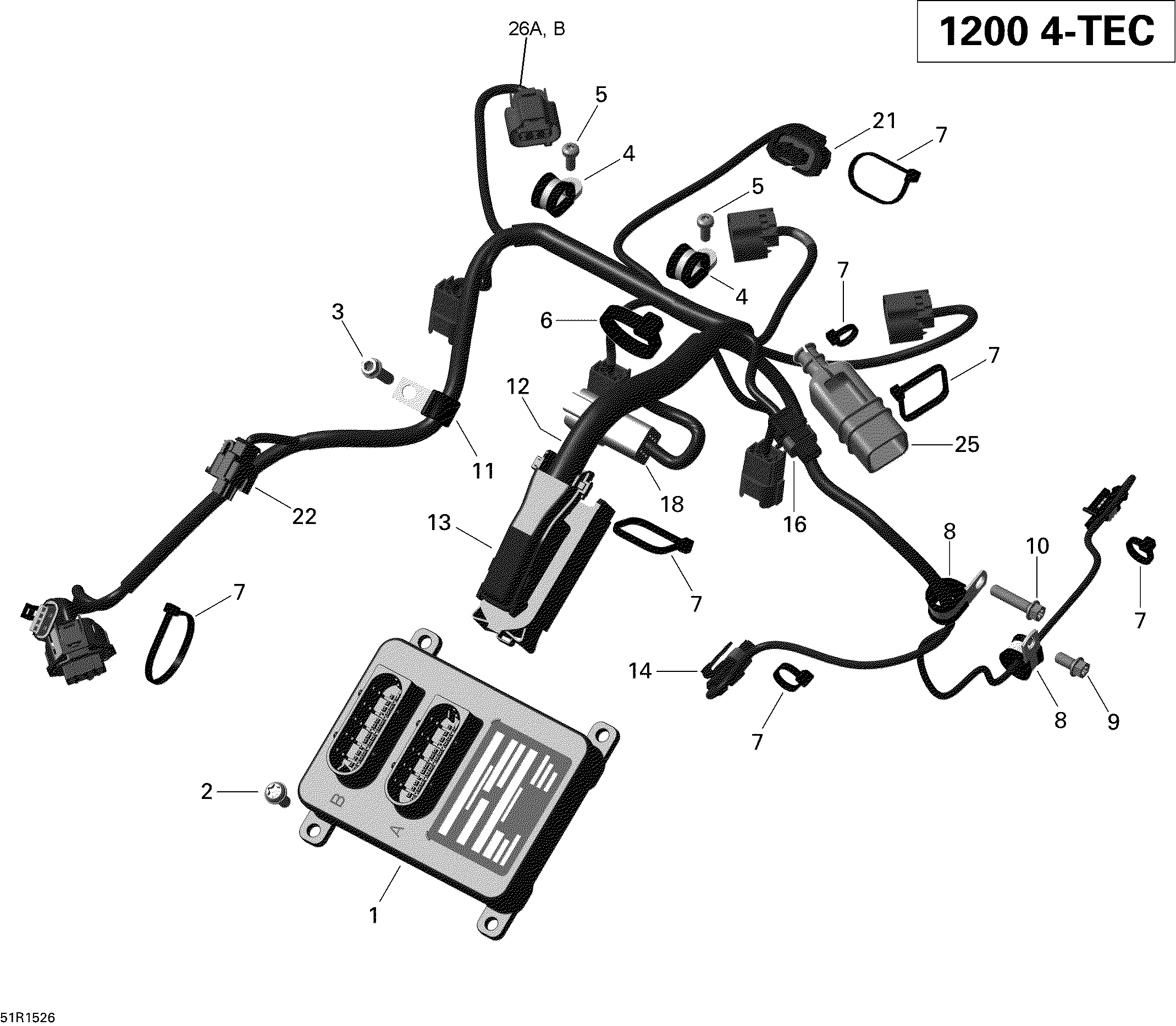

10- Engine Harness And Electronic Module _51R1526 для BRP Ski-Doo GSX SE 1200 XR137 - 2015
-
№АртикулНазвание
-
1420666128 ECM, Engine Control ModuleECM, Engine Control Module
-
2420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
3420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
4420851108 Cable ClampCable Clamp
-
5420640086 Torx Screw M5 X 12Torx Screw M5 X 12
-
6420866716 Tie-RapTie-Rap
-
7420651396 Tie RapTie Rap
-
8420851492 Cable ClampCable Clamp
-
9420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
10420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
11420251812 Cable ClampCable Clamp
-
12420665638 Engine Wiring Harness Ass'y. Includes 12 to 22Engine Wiring Harness Ass'y. Includes 12 to 22
-
13420664450 ECM ConnectorECM Connector
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
18270000137 Female Connector, 6 CircuitsFemale Connector, 6 Circuits
-
21278001830 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
22278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
25420201070 ProtectorProtector
-
26a710000335 Female TerminalFemale Terminal
-
26b409012300 SealSeal
