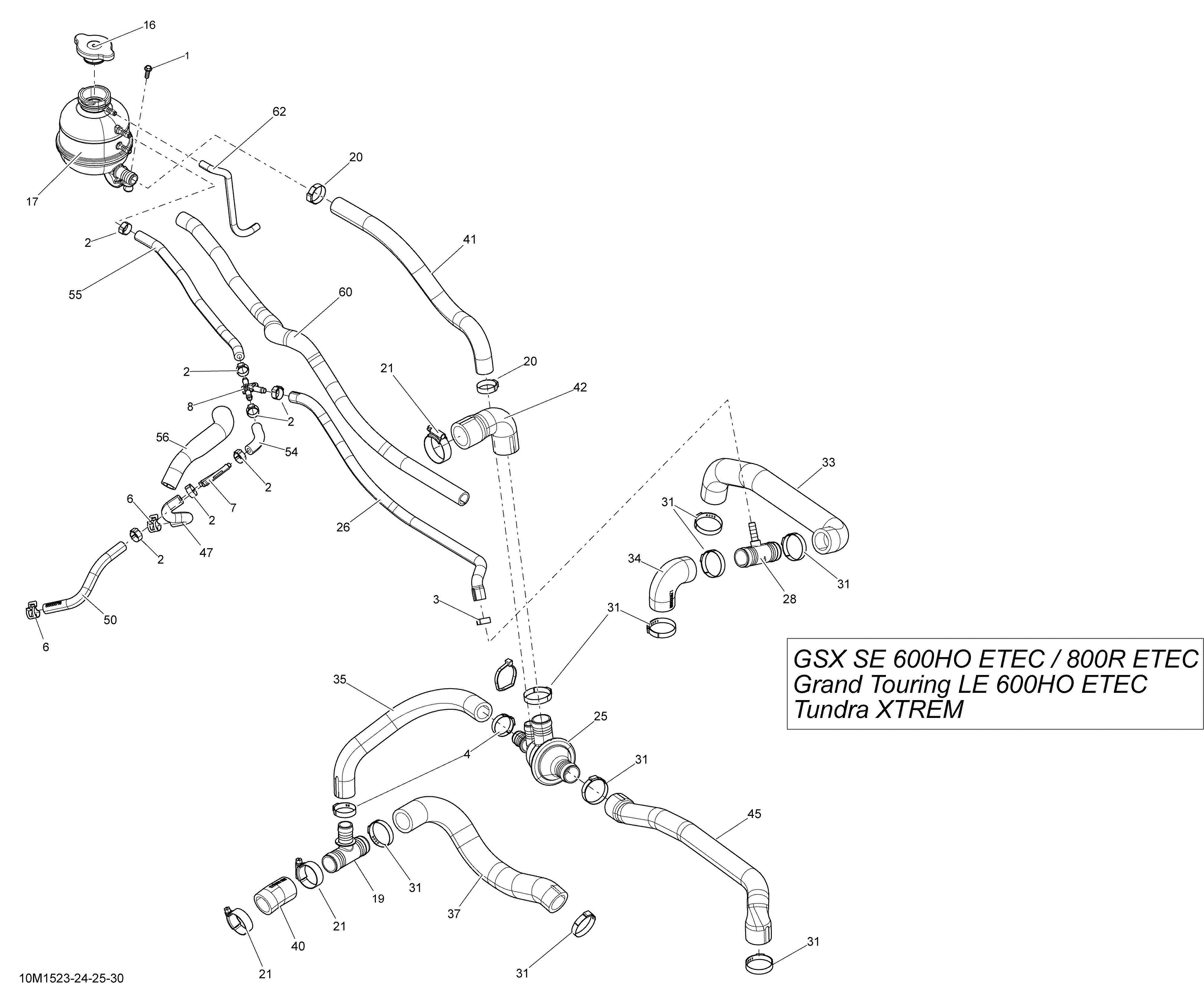

01- Cooling System _10M1525 для BRP Ski-Doo GSX SE 800RETEC XR137 - 2015
-
№АртикулНазвание
-
1241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
2293650046 Oetiker ClampOetiker Clamp
-
3293650047 Crimp ClampCrimp Clamp
-
4293650099 Crimp ClampCrimp Clamp
-
6293650210 Spring ClampSpring Clamp
-
7293710059 Y-FittingY-Fitting
-
8293710140 Y-FittingY-Fitting
-
16509000180 Pressure CapPressure Cap
-
17509000368 Coolant TankCoolant Tank
-
19509000372 T-FittingT-Fitting
-
20509000442 Oetiker Gear ClampOetiker Gear Clamp
-
21509000443 Aba Gear ClampAba Gear Clamp
-
25509000499 Thermostat HousingThermostat Housing
-
26509000502 Bleeder HoseBleeder Hose
-
28509000510 T-FittingT-Fitting
-
31509000529 Oetiker Gear ClampOetiker Gear Clamp
-
33509000670 Radiator HoseRadiator Hose
-
34509000671 Radiator HoseRadiator Hose
-
35509000672 Bypass HoseBypass Hose
-
37509000673 Radiator HoseRadiator Hose
-
40509000674 Engine Inlet HoseEngine Inlet Hose
-
41509000676 Filling HoseFilling Hose
-
42509000678 Engine Outlet HoseEngine Outlet Hose
-
45509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
47509000768 Bleeder HoseBleeder Hose
-
50509000769 Bleeder HoseBleeder Hose
-
54415129508 Bleeder HoseBleeder Hose
-
55415129508 Bleeder HoseBleeder Hose
-
56513033231 Protector Tube, 16 mmProtector Tube, 16 mm
-
60415080000 Tubing 16 mmTubing 16 mm
-
62415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
