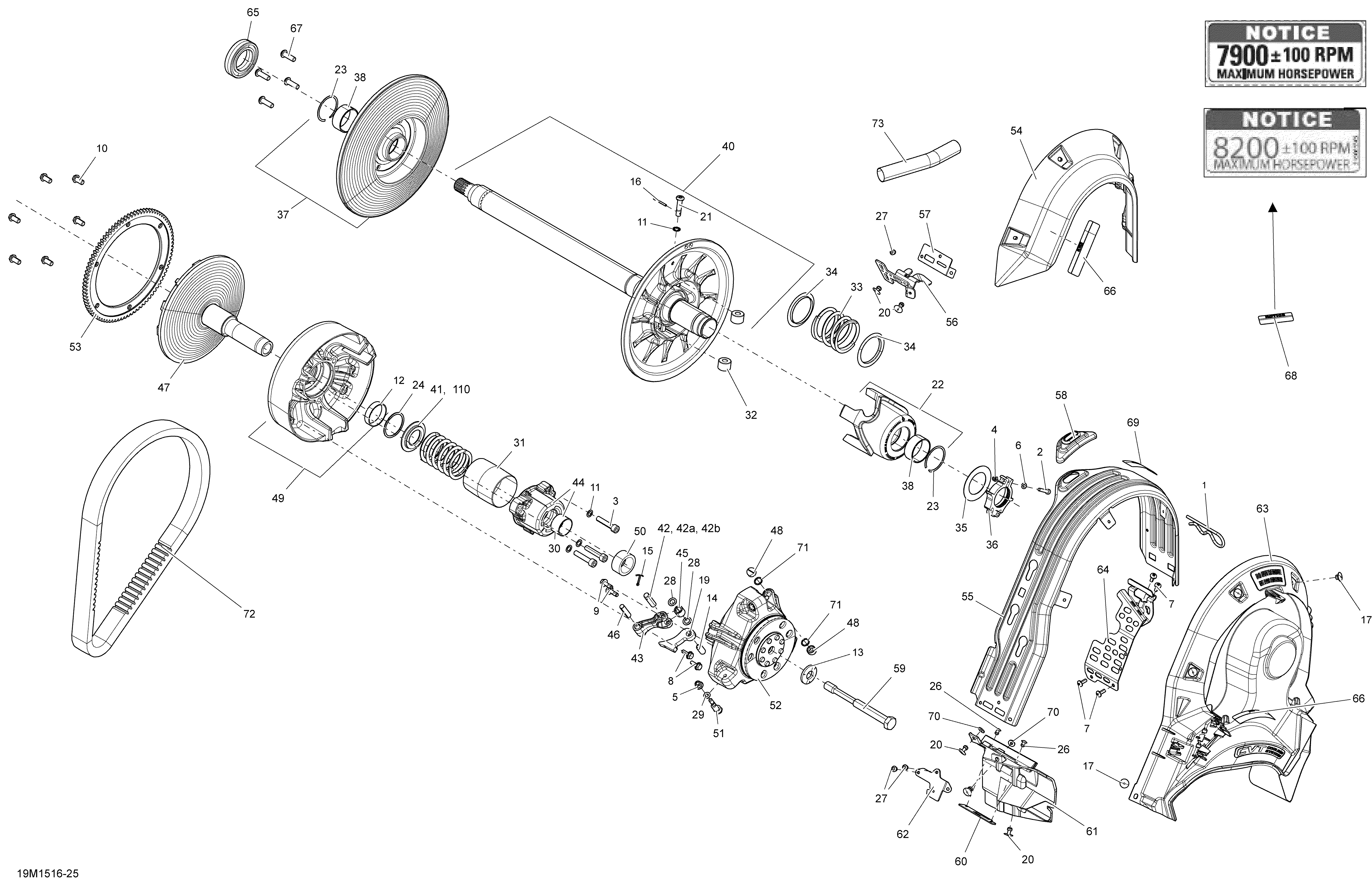

05- Pulley System _19M1525 для BRP Ski-Doo GSX SE 800RETEC XR137 - 2015
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
4232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234051410 Flat Washer M5Flat Washer M5
-
7250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
8250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
9250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
10250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
11250200009 Lock Washer 8 mmLock Washer 8 mm
-
12417223086 BushingBushing
-
13250200144 Conical Spring Washer M14Conical Spring Washer M14
-
14250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
15250400060 Cotter PinCotter Pin
-
16250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
17293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
19417222546 Ramp 414Ramp 414
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21417127294 Pivot StudPivot Stud
-
22417127379 Cam Ass'yCam Ass'y
-
23293370049 CirclipCirclip
-
24293370071 CirclipCirclip
-
27390909200 Avex RivetAvex Rivet
-
28417004302 Stopper WasherStopper Washer
-
29417005600 WasherWasher
-
30417009204 BushingBushing
-
31417009205 GuardGuard
-
32417127016 RollerRoller
-
33417127137 SpringSpring
-
34417127116 Swivel AbutmentSwivel Abutment
-
35417127155 WasherWasher
-
36415129604 Calibration Ass'yCalibration Ass'y
-
37417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
38417127318 BushingBushing
-
40417127387 Fix Flange Ass'yFix Flange Ass'y
-
41417222312 Spring SeatSpring Seat
-
42417222594 PinPin
-
43417222671 LeverLever
-
44417222759 Spring Cover Ass'ySpring Cover Ass'y
-
45417222947 RollerRoller
-
46417223164 Lever AxleLever Axle
-
47417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
48417223271 Slider ShoeSlider Shoe
-
49417223444 Sliding Flange Ass'ySliding Flange Ass'y
-
50417223471 BushingBushing
-
51417223501 Calibration ScrewCalibration Screw
-
52417223666 Governor Cup Ass'yGovernor Cup Ass'y
-
53417223739 Ring GearRing Gear
-
54417300356 Side ProtectorSide Protector
-
55417300357 Belt GuardBelt Guard
-
56417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
57417300380 ReinforcementReinforcement
-
58417300381 GuideGuide
-
59417300409 TRA 7 Bolt (M14 X 153.5 mm)TRA 7 Bolt (M14 X 153.5 mm)
-
64417300448 Belt Guard BracketBelt Guard Bracket
-
65504152574 Ball BearingBall Bearing
-
66516005503 Decal, EnglishDecal, English
-
67250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
68516005507 RPM Sticker, EnglishRPM Sticker, English
-
69516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
71732401030 O-RingO-Ring
-
72417300391 BeltBelt
-
73219702532 Protector Tube 25 mm - 210 mmProtector Tube 25 mm - 210 mm
-
110414742100 Spring Yellow/GreenSpring Yellow/Green
