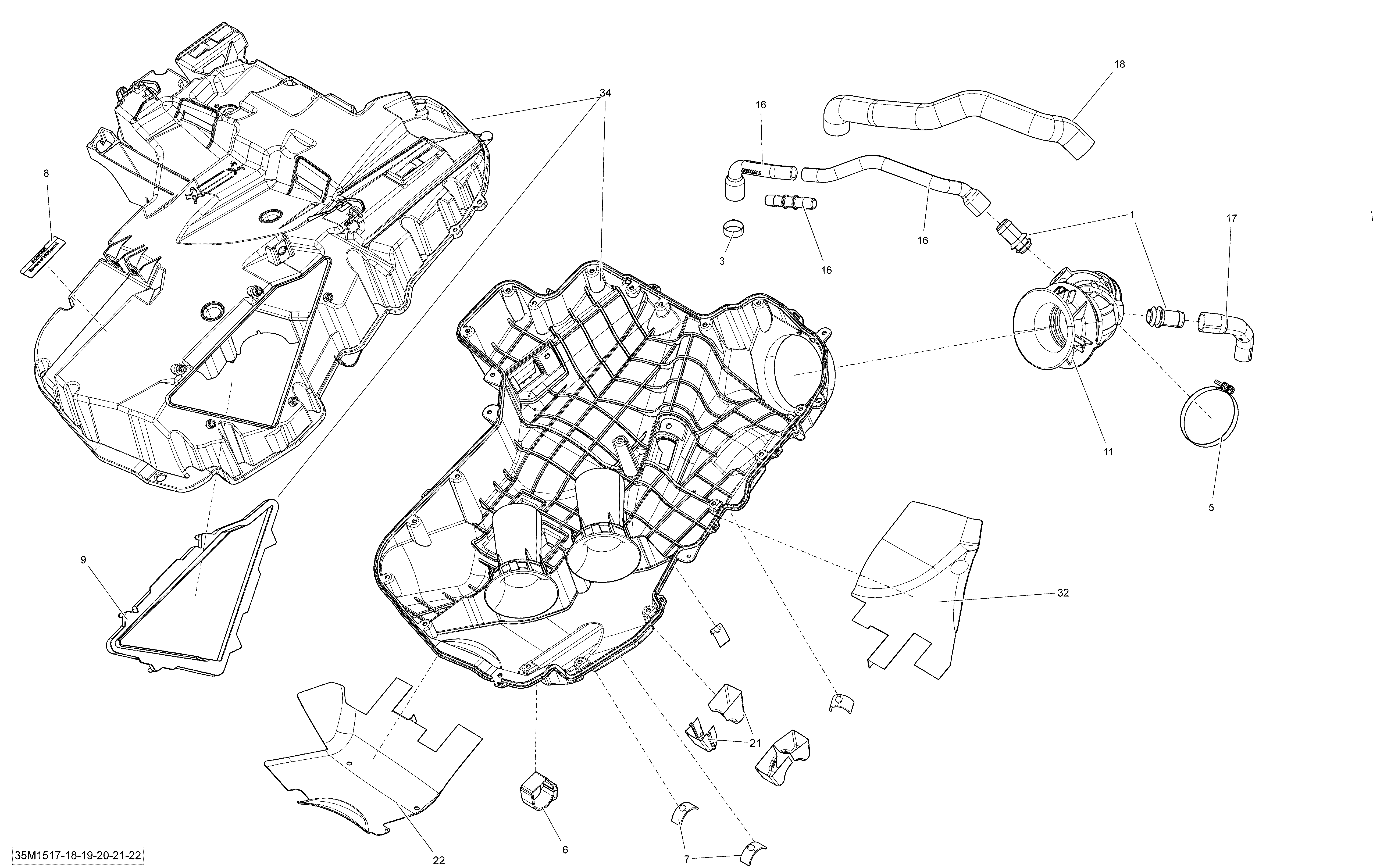

02- Air Intake System _35M1518 для BRP Ski-Doo MXZ TNT 1200 XR120 - 2015
-
№АртикулНазвание
-
1273000234 BreatherBreather
-
3293650172 Tridon Gear ClampTridon Gear Clamp
-
5508000346 Gemi ClampGemi Clamp
-
6508000532 Velcro StripVelcro Strip
-
7508000537 StopperStopper
-
8516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
9508000546 Air FilterAir Filter
-
11508000549 Intake HoseIntake Hose
-
16508000615 Vent HoseVent Hose
-
17508000616 Formed HoseFormed Hose
-
18508000648 Tube IsolatorTube Isolator
-
21508000677 Heat ShieldHeat Shield
-
22508000793 Heat ShieldHeat Shield
-
32508000776 Heat shieldHeat shield
-
34508000778 Secondary Chamber Ass'ySecondary Chamber Ass'y
