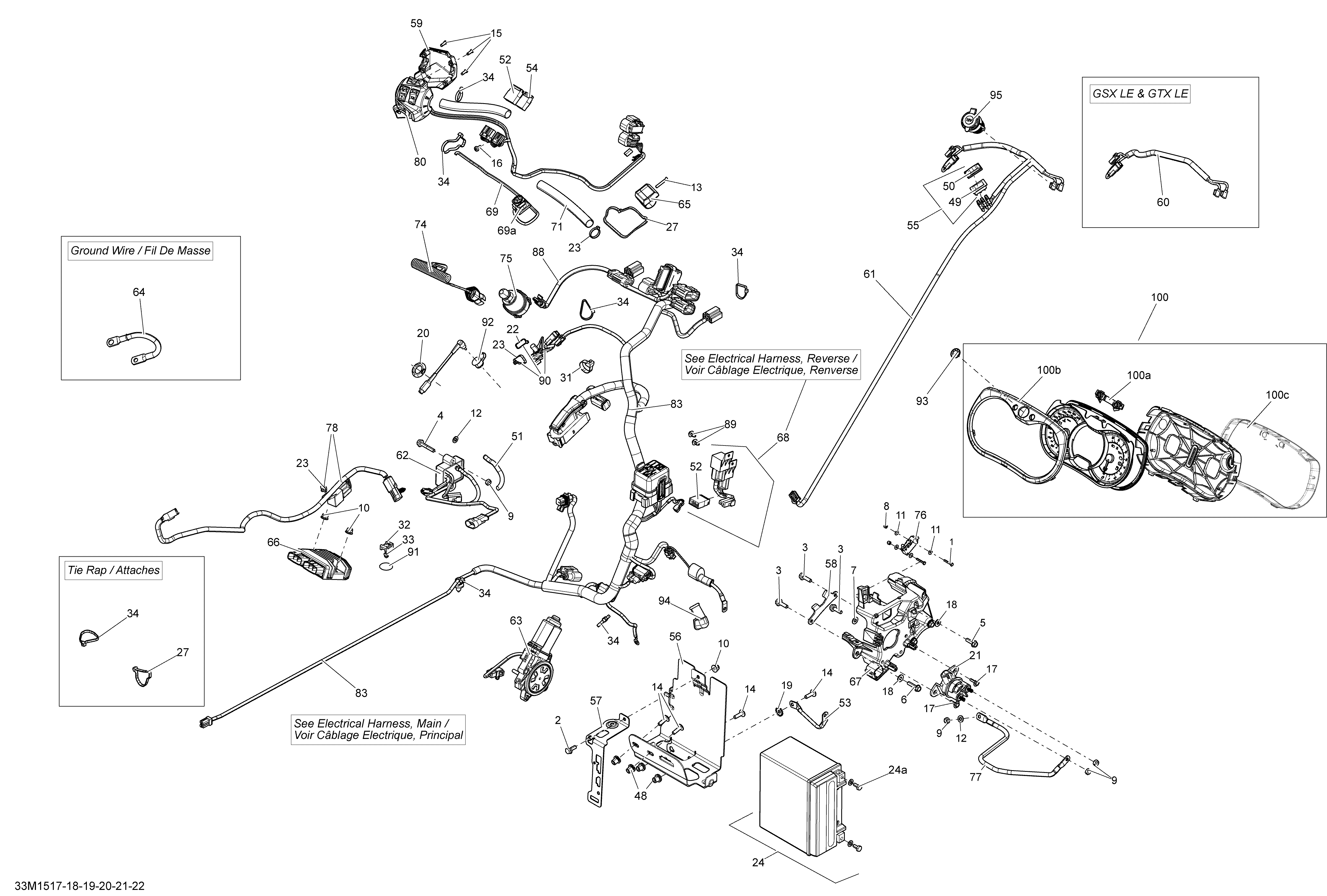

10- Electrical System _33M1518 для BRP Ski-Doo MXZ TNT 1200 XR120 - 2015
-
№АртикулНазвание
-
1207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
8232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
9232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
12234061410 Flat Washer 6 mmFlat Washer 6 mm
-
13250000263 Torx Screw #8-18Torx Screw #8-18
-
14250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
15250000671 Torx ScrewTorx Screw
-
16250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
17250000725 Screw M4 X 16Screw M4 X 16
-
18250200039 Flat WasherFlat Washer
-
19250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
20278002963 Safety NutSafety Nut
-
21278003012 Starter RelayStarter Relay
-
22293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
23293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
24415129898 Lead Battery 18 Amperes. Includes 24 To 24aLead Battery 18 Amperes. Includes 24 To 24a
-
24a250000282 Battery Bolt KitBattery Bolt Kit
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
31293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
48293450275 InsertInsert
-
52515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
53515175749 Ground WireGround Wire
-
54515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
56515176970 Battery SupportBattery Support
-
57515177008 Battery StripBattery Strip
-
59515177147 Housing PlateHousing Plate
-
64515177289 Ground WireGround Wire
-
65515177310 Kill Switch SupportKill Switch Support
-
66515177325 Voltage RegulatorVoltage Regulator
-
67515177347 PlatePlate
-
69515177362 Kill Switch. Includes 69 To 69aKill Switch. Includes 69 To 69a
-
69a515175232 Male TerminalMale Terminal
-
71415129879 Protector TubeProtector Tube
-
74515177457 KeyKey
-
75515177458 SwitchSwitch
-
76515177460 Switch Ass'ySwitch Ass'y
-
77515177535 Battery WireBattery Wire
-
80515177676 HousingHousing
-
83515177750 Main Harness Ass'yMain Harness Ass'y
-
88515177803 Main Harness Ass'yMain Harness Ass'y
-
91518325560 Adhesive PatchAdhesive Patch
-
93704904616 BRP Logo, 20mmBRP Logo, 20mm
-
94710000495 Protector CapProtector Cap
-
100515177760 Speedometer. Includes 100 To 100cSpeedometer. Includes 100 To 100c
-
100a415129355 Speedometer ButtonSpeedometer Button
-
100b415129370 Gauge RingGauge Ring
-
100c415129349 LensLens
