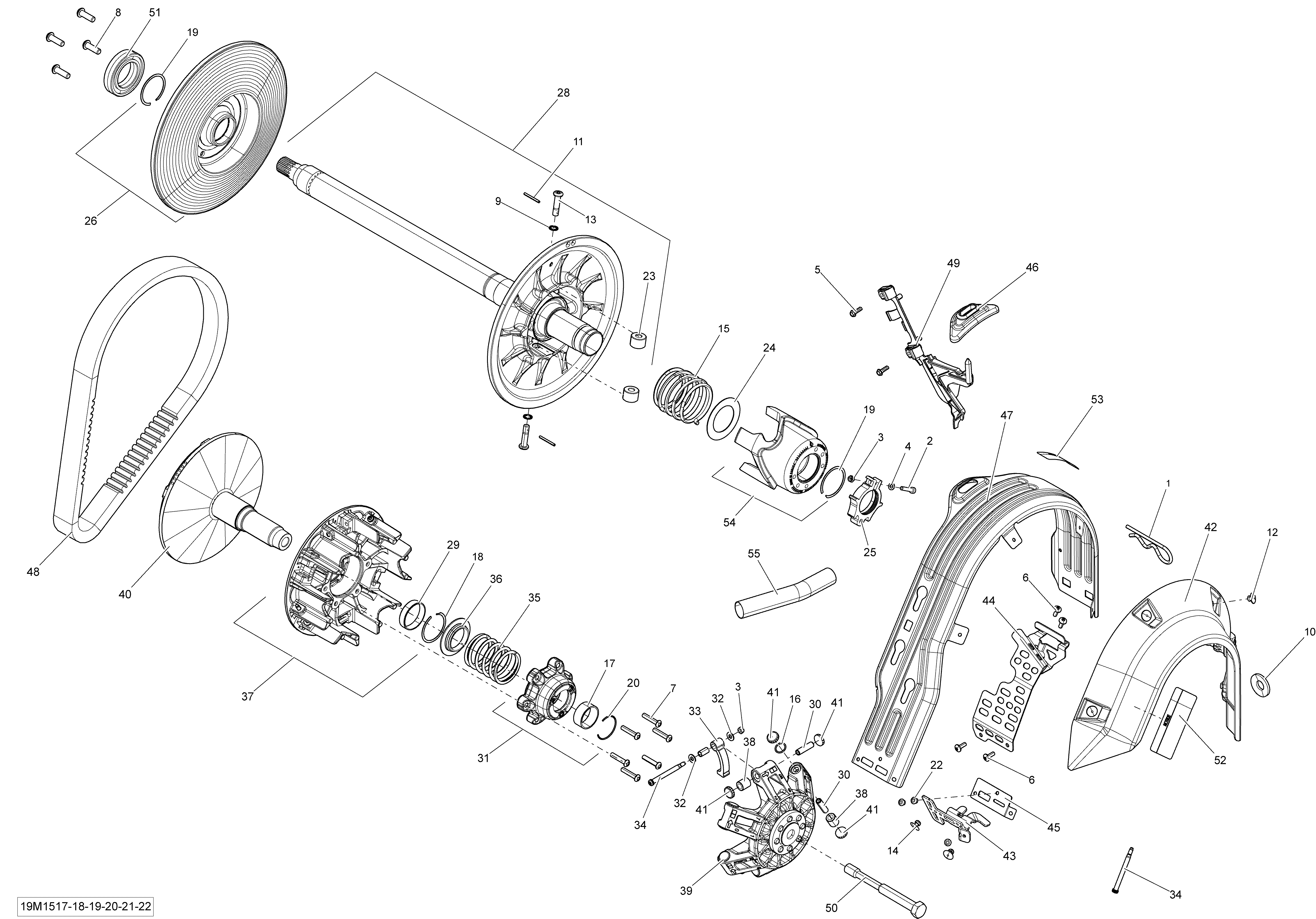

05- Pulley System _19M1517 для BRP Ski-Doo MXZ X 1200 XR120 - 2015
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
4234051410 Flat Washer M5Flat Washer M5
-
5241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
6250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
7250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
8250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
9250200009 Lock Washer 8 mmLock Washer 8 mm
-
10250200144 Conical Spring Washer M14Conical Spring Washer M14
-
11250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
12293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
13417127294 Pivot StudPivot Stud
-
14293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
15417127467 Release SpringRelease Spring
-
16293300169 O RingO Ring
-
17293350079 Journal BearingJournal Bearing
-
18293370037 CirclipCirclip
-
19293370049 CirclipCirclip
-
20293370065 CirclipCirclip
-
22390909200 Avex RivetAvex Rivet
-
23417127016 RollerRoller
-
24417127155 WasherWasher
-
25415129604 Calibration Ass'yCalibration Ass'y
-
26417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
27417127318 BushingBushing
-
28417127362 Fix Flange Ass'yFix Flange Ass'y
-
29417222758 BushingBushing
-
30417223257 Roller AxleRoller Axle
-
31417223650 Spring Cover Ass'ySpring Cover Ass'y
-
32417223660 Stopper WasherStopper Washer
-
33417223679 Rampe 735Rampe 735
-
34417223694 Ramp AxleRamp Axle
-
35417223746 Clutch SpringClutch Spring
-
36417223752 Seat SpringSeat Spring
-
37417223763 Slider Flange Ass'ySlider Flange Ass'y
-
38417223767 RollerRoller
-
39417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
40417223867 Fixe Flange Ass'yFixe Flange Ass'y
-
41417223919 Slider ShoeSlider Shoe
-
42417300356 Side ProtectorSide Protector
-
43417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
44417300361 Belt Guard BracketBelt Guard Bracket
-
45417300380 ReinforcementReinforcement
-
46417300381 GuideGuide
-
47417300382 Belt GuardBelt Guard
-
48417300383 Drive BeltDrive Belt
-
49417300396 Belt Guard BracketBelt Guard Bracket
-
50417300432 Pulley Drive BoltPulley Drive Bolt
-
51504152574 Ball BearingBall Bearing
-
52516005503 Decal, EnglishDecal, English
-
53516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
54417127476 Cam Ass'yCam Ass'y
-
55219702532 Protector Tube 25 mm - 210 mmProtector Tube 25 mm - 210 mm
