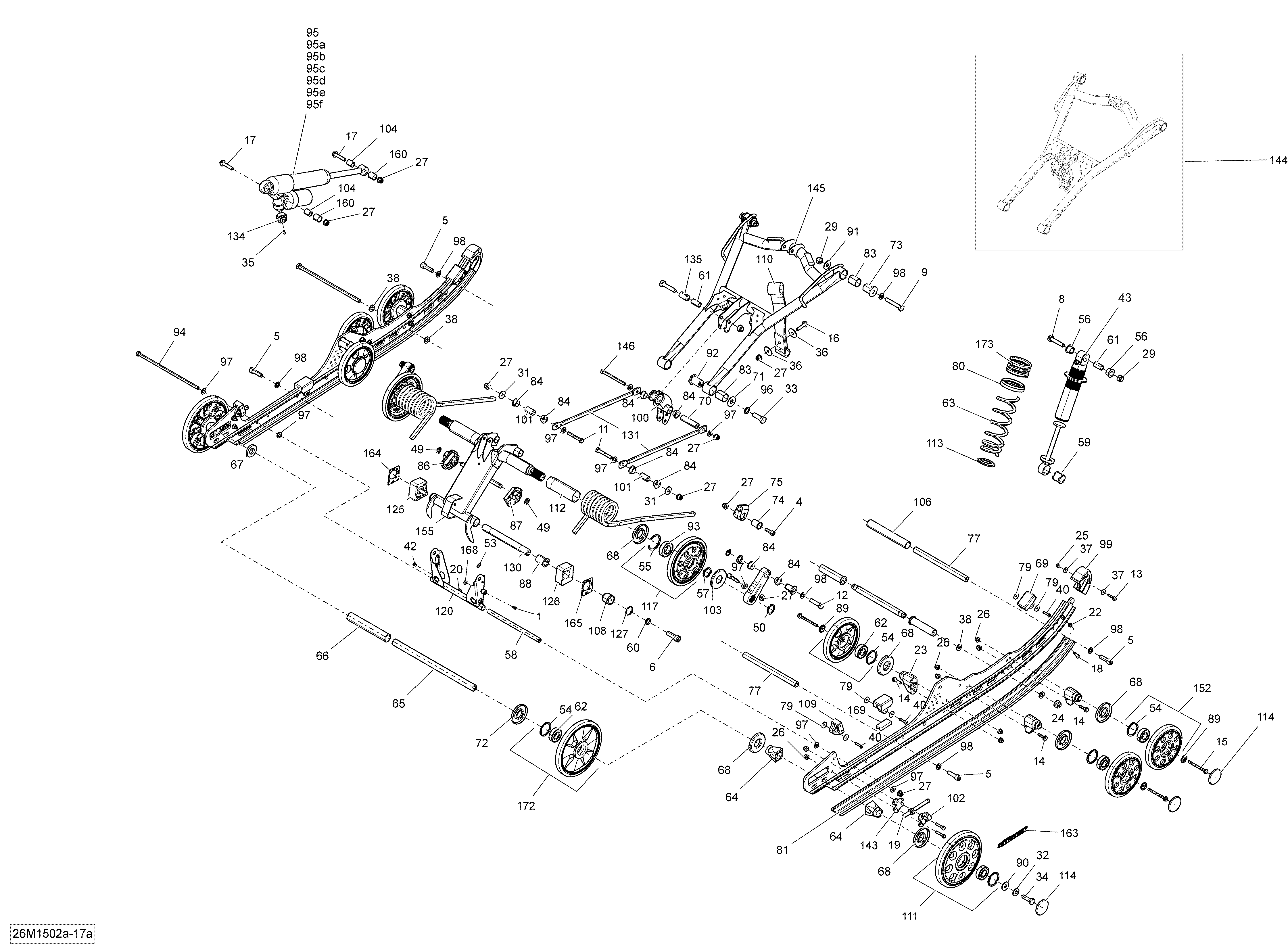

08- Rear Suspension rMotion_26M1517a для BRP Ski-Doo MXZ X 1200 XR120 - 2015
-
№АртикулНазвание
-
1205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
4205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
5205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
6205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
8207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
9207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
10207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
11207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
12207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
13207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
14207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
15207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
16207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
17207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
18208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
19230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
20232061404 Hexagonal NutHexagonal Nut
-
21503193526 Black Runner 120''Black Runner 120''
-
22232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
22232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
23503193894 Casted SupportCasted Support
-
24233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
25233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
26233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
28233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
29233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
31234082410 Flat Washer 8 mmFlat Washer 8 mm
-
32234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
33250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
34250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
35250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
36250200128 Flat Washer 8 mmFlat Washer 8 mm
-
37250200140 WasherWasher
-
38250200143 Flat WasherFlat Washer
-
40293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
42390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
43503193283 Central ShockCentral Shock
-
49293370013 E-CirclipE-Circlip
-
50293370080 Retaining RingRetaining Ring
-
53408200700 Grease FittingGrease Fitting
-
54415129371 Retaining RingRetaining Ring
-
55415129780 Retaining RingRetaining Ring
-
56503189117 CushionCushion
-
57503189146 Axle SpringAxle Spring
-
58503189156 Pivot Arm AxlePivot Arm Axle
-
59503189271 CushionCushion
-
60503189276 WasherWasher
-
61503189282 BushingBushing
-
62503190396 Ball BearingBall Bearing
-
63503193160 Black Spring (189MM Long)Black Spring (189MM Long)
-
64503190428 Rear Wheel SpacerRear Wheel Spacer
-
65503190429 Rear AxleRear Axle
-
66503190430 SpacerSpacer
-
67503190432 WasherWasher
-
68503190434 Labyrinth SealLabyrinth Seal
-
69503190576 Rubber StopperRubber Stopper
-
70503190643 Axle Bar (Long)Axle Bar (Long)
-
71503190656 WasherWasher
-
72503190682 Labyrinth SealLabyrinth Seal
-
73503190698 AxleAxle
-
74503190754 Retainer CushionRetainer Cushion
-
75503191183 Spring SupportSpring Support
-
76503191259 Center BushingCenter Bushing
-
77503191260 Axle StrapAxle Strap
-
79503191273 WasherWasher
-
80503191281 Spring SpacerSpring Spacer
-
81503191301 Black Slider Shoe 120''Black Slider Shoe 120''
-
83503191554 BushingBushing
-
84503191555 Swivel BushingSwivel Bushing
-
86503191565 LH Cam AdjusterLH Cam Adjuster
-
87503191566 RH Cam AdjusterRH Cam Adjuster
-
88503191640 CushionCushion
-
89503191820 Wheel Cup M6Wheel Cup M6
-
90503191910 WasherWasher
-
91503191926 WasherWasher
-
92503191966 Lower AxleLower Axle
-
93503191982 Ball BearingBall Bearing
-
94503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
95503192456 Rear Shock. Includes 95 To 95f, North AmericaRear Shock. Includes 95 To 95f, North America
-
95503193470 Rear Shock Ass'y. Includes 95 To 95f, EuropeRear Shock Ass'y. Includes 95 To 95f, Europe
-
95a415093804 O-RingO-Ring
-
95b505070400 O-RingO-Ring
-
95c505070399 ScrewScrew
-
95d505070398 Air ValveAir Valve
-
95e415093806 Piston RingPiston Ring
-
95f415093807 O-RingO-Ring
-
96503192491 WasherWasher
-
97503192494 WasherWasher
-
98503192496 WasherWasher
-
99503192530 Slide ProtectorSlide Protector
-
100503192531 RockerRocker
-
101503192555 Axle BarAxle Bar
-
102503192583 TensionerTensioner
-
103503192592 Labyrinth RingLabyrinth Ring
-
104503192606 Rear Shock AxleRear Shock Axle
-
106503192678 SpacerSpacer
-
108503192749 Guide BlockGuide Block
-
109503192750 Rubber StopperRubber Stopper
-
110503192759 Stopper StrapStopper Strap
-
111503192766 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
112503192767 BushingBushing
-
113503192608 Spring StopperSpring Stopper
-
114503192771 Black Wheel CapBlack Wheel Cap
-
115503192794 Deep Black Wheel Ass'y, 141 mmDeep Black Wheel Ass'y, 141 mm
-
117503192808 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
120503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
125503192918 LH Cam BlockLH Cam Block
-
126503192919 RH Cam BlockRH Cam Block
-
127503192921 O-RingO-Ring
-
130503192981 Lower ShaftLower Shaft
-
131503193010 Link RodLink Rod
-
134503193033 Shock Adjuster KnobShock Adjuster Knob
-
135503193037 BushingBushing
-
137503193101 Rubber StopperRubber Stopper
-
142503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
143503193250 SpacerSpacer
-
144503193264 Front Arm Ass'yFront Arm Ass'y
-
145503193265 Front ArmFront Arm
-
146503193372 Screw M8 X 90Screw M8 X 90
-
148503193435 Pivot AxlePivot Axle
-
152503193477 Deep Black Wheel Ass'y, 141 mmDeep Black Wheel Ass'y, 141 mm
-
154503193533 Link Ass'yLink Ass'y
-
155503193617 Rear Arm Ass'yRear Arm Ass'y
-
160505072663 Leg CushionLeg Cushion
-
163516004755 Runner DecalRunner Decal
-
164516004900 LH Block Sticker DecalLH Block Sticker Decal
-
165516004901 RH Block Sticker DecalRH Block Sticker Decal
-
168517225900 Flat WasherFlat Washer
-
169572084800 Reinforcement StopperReinforcement Stopper
-
172503194050 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
173503193837 Black Spring (Short)Black Spring (Short)
