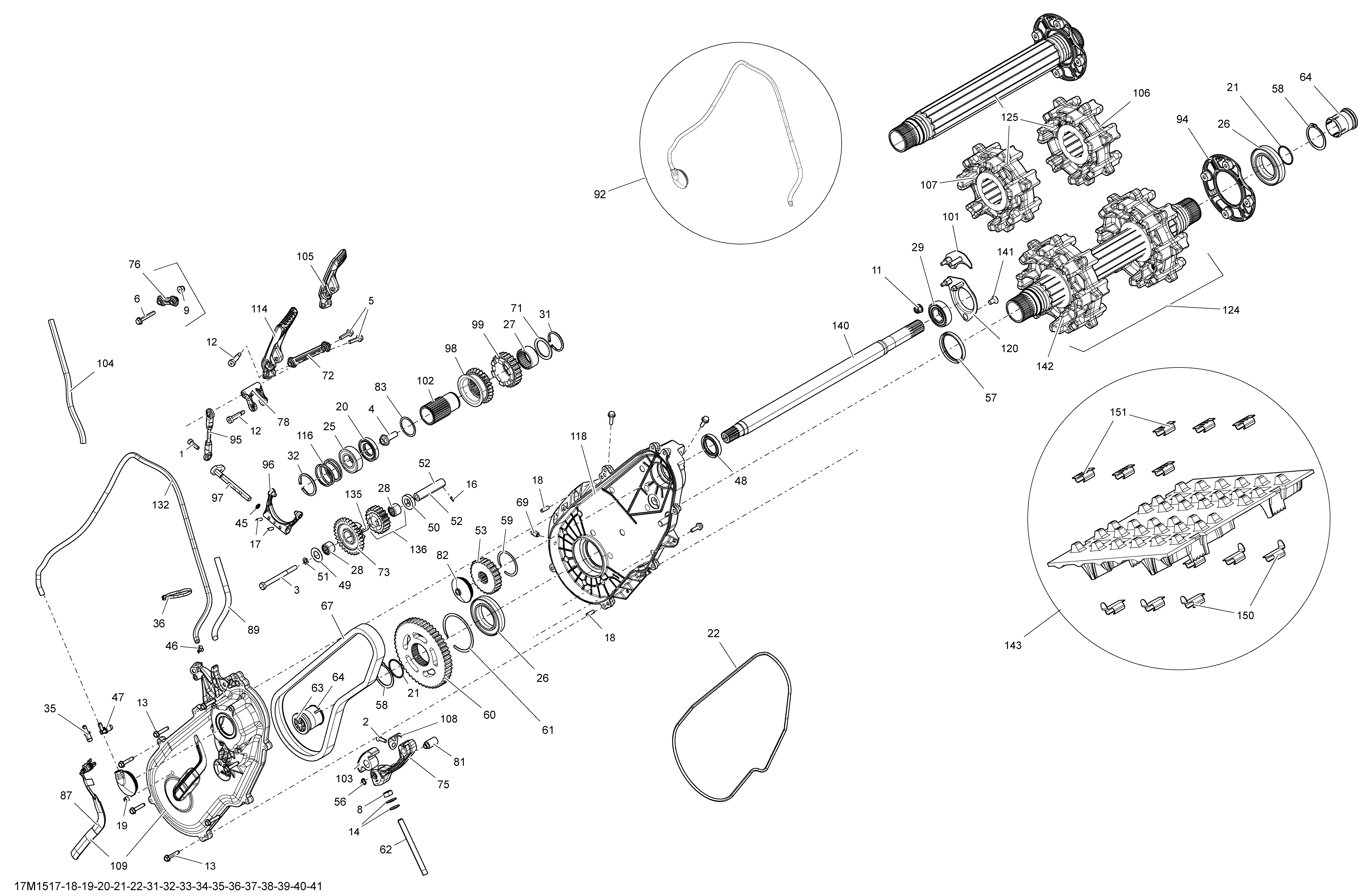

05- Drive System _17M1520 для BRP Ski-Doo Renegade Adrenaline 1200 XR137 - 2015
-
№АртикулНазвание
-
1205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
2205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
3207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
4207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
5207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
8232006414 Hex. Nut M10Hex. Nut M10
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12250000340 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
14250200100 Bonded WasherBonded Washer
-
16250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
17250400045 Spring Pin M5 X 16Spring Pin M5 X 16
-
18250400048 Dowel PinDowel Pin
-
19250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
21293300122 O-RingO-Ring
-
22293300130 O-RingO-Ring
-
25293350055 Ball BearingBall Bearing
-
26293350059 Ball BearingBall Bearing
-
27293350063 Needle BearingNeedle Bearing
-
28293350064 Needle BearingNeedle Bearing
-
31293370054 CirclipCirclip
-
32293370055 CirclipCirclip
-
36414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
45414484400 O-RingO-Ring
-
46414554800 Spring ClampSpring Clamp
-
47414580700 Male ConnectorMale Connector
-
48415049300 Oil SealOil Seal
-
49504077300 SpacerSpacer
-
50504078700 RingRing
-
51504082900 WasherWasher
-
52504083100 Reverse ShaftReverse Shaft
-
56504152282 CirclipCirclip
-
57504152571 SealSeal
-
58504152572 CirclipCirclip
-
59504152576 CirclipCirclip
-
61504152582 CirclipCirclip
-
62504152602 Adjustment ScrewAdjustment Screw
-
63504152619 Magnetic CapMagnetic Cap
-
64504152619 Magnetic CapMagnetic Cap
-
67504152629 Drive Chain, 104 LinksDrive Chain, 104 Links
-
69504152854 Magnetic PlugMagnetic Plug
-
71504152689 WasherWasher
-
72504152710 Double Ball JointDouble Ball Joint
-
73504152724 Sprocket, 29 TeethSprocket, 29 Teeth
-
75504152748 Chain TensionerChain Tensioner
-
78504152788 LeverLever
-
81504152841 Tensionner AxleTensionner Axle
-
82504152860 CapCap
-
83504152862 WasherWasher
-
87504152896 SensorSensor
-
89504152900 Protector TubeProtector Tube
-
94504152949 Housing BearingHousing Bearing
-
95504152951 Ball JointBall Joint
-
96504152954 Fork Ass'yFork Ass'y
-
97504152956 Welded Axel ForkWelded Axel Fork
-
98504152960 Slinding Gear, 27 TeethSlinding Gear, 27 Teeth
-
99504152961 Sprocket, 24 TeethSprocket, 24 Teeth
-
101504152974 Bearing HousingBearing Housing
-
102504152979 CouplingCoupling
-
103504152739 Slider ChainSlider Chain
-
105504153082 GripGrip
-
108504153122 Chain SliderChain Slider
-
109504153337 Chaincase Cover Ass'yChaincase Cover Ass'y
-
116504153178 Spring ReleaseSpring Release
-
118504153334 ChaincaseChaincase
-
124504153083 Drive Axle Ass'yDrive Axle Ass'y
-
132415080200 Hose, PolyurethaneHose, Polyurethane
-
135570048600 Alignement RodAlignement Rod
-
136581096900 Sprock Ass'y, 19 TeethSprock Ass'y, 19 Teeth
-
143504152905 Track Ass'y 15X137X1.2Track Ass'y 15X137X1.2
