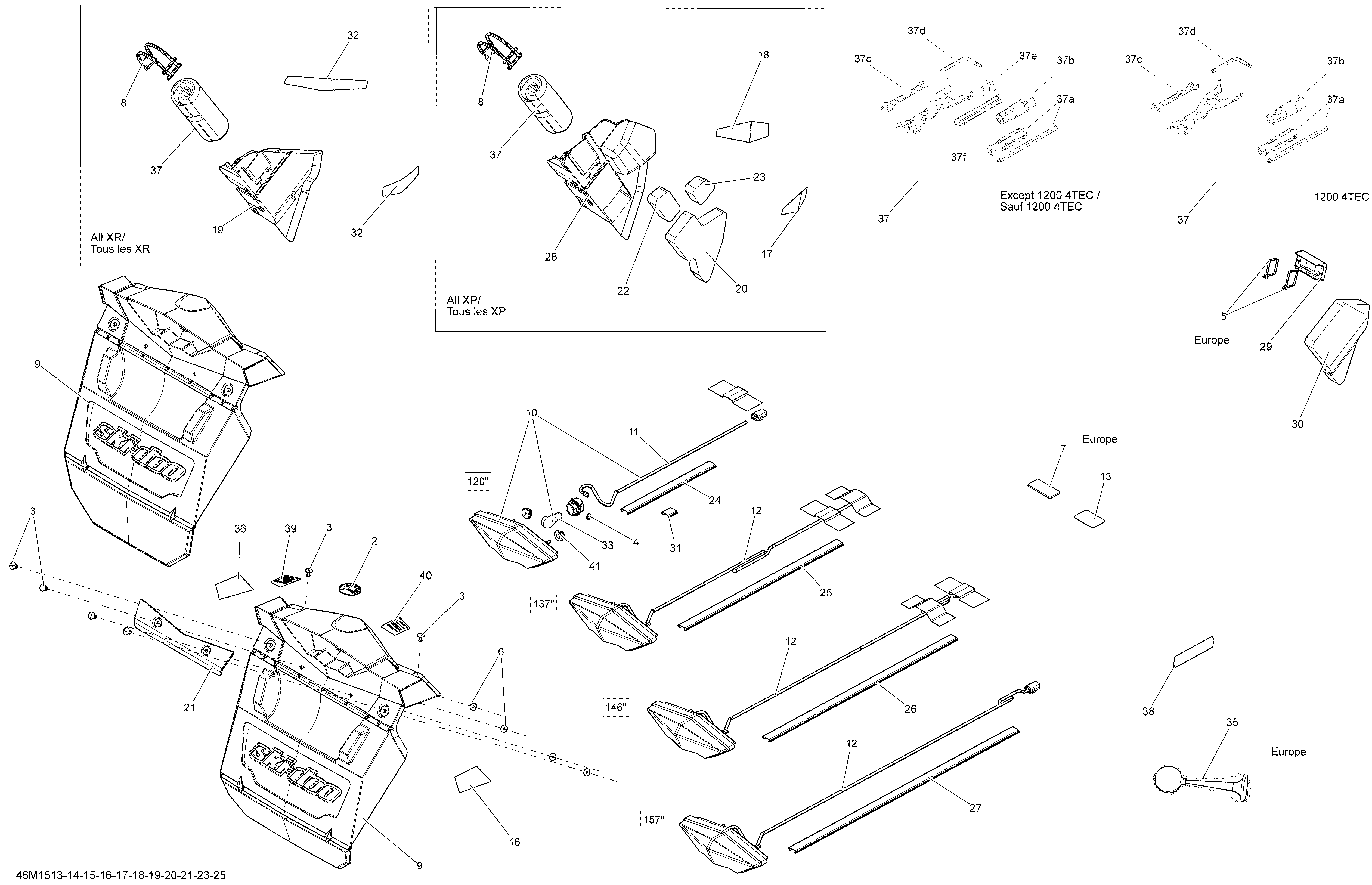

09- Utilities _46M1520 для BRP Ski-Doo Renegade Adrenaline 1200 XR137 - 2015

-
№АртикулНазвание
-
2219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
8520000528 LatchLatch
-
9520001377 Snow GuardSnow Guard
-
11520000680 Wiring Harness Ass'yWiring Harness Ass'y
-
12520000679 Rear Light Ass'yRear Light Ass'y
-
16520001162 Red RH Rear ReflectorRed RH Rear Reflector
-
19520000720 Tool Kit RackTool Kit Rack
-
21520000751 ReinforcementReinforcement
-
31520000829 Radiator TrimRadiator Trim
-
32520001234 Yellow Front Reflector XRYellow Front Reflector XR
-
33520000758 BulbBulb
-
34520001317 Plaque TrouePlaque Troue
-
36520001161 Red LH Rear ReflectorRed LH Rear Reflector
-
37529000078 Tool KitTool Kit
-
37a529000004 Screw DriverScrew Driver
-
37b529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
37c529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
37D520001142 Spacing ToolSpacing Tool
-
39516005590 Warning Decal, TrackWarning Decal, Track
-
40516005591 Warning Decal, CargoWarning Decal, Cargo
-
41705003666 Rubber GrommetRubber Grommet
