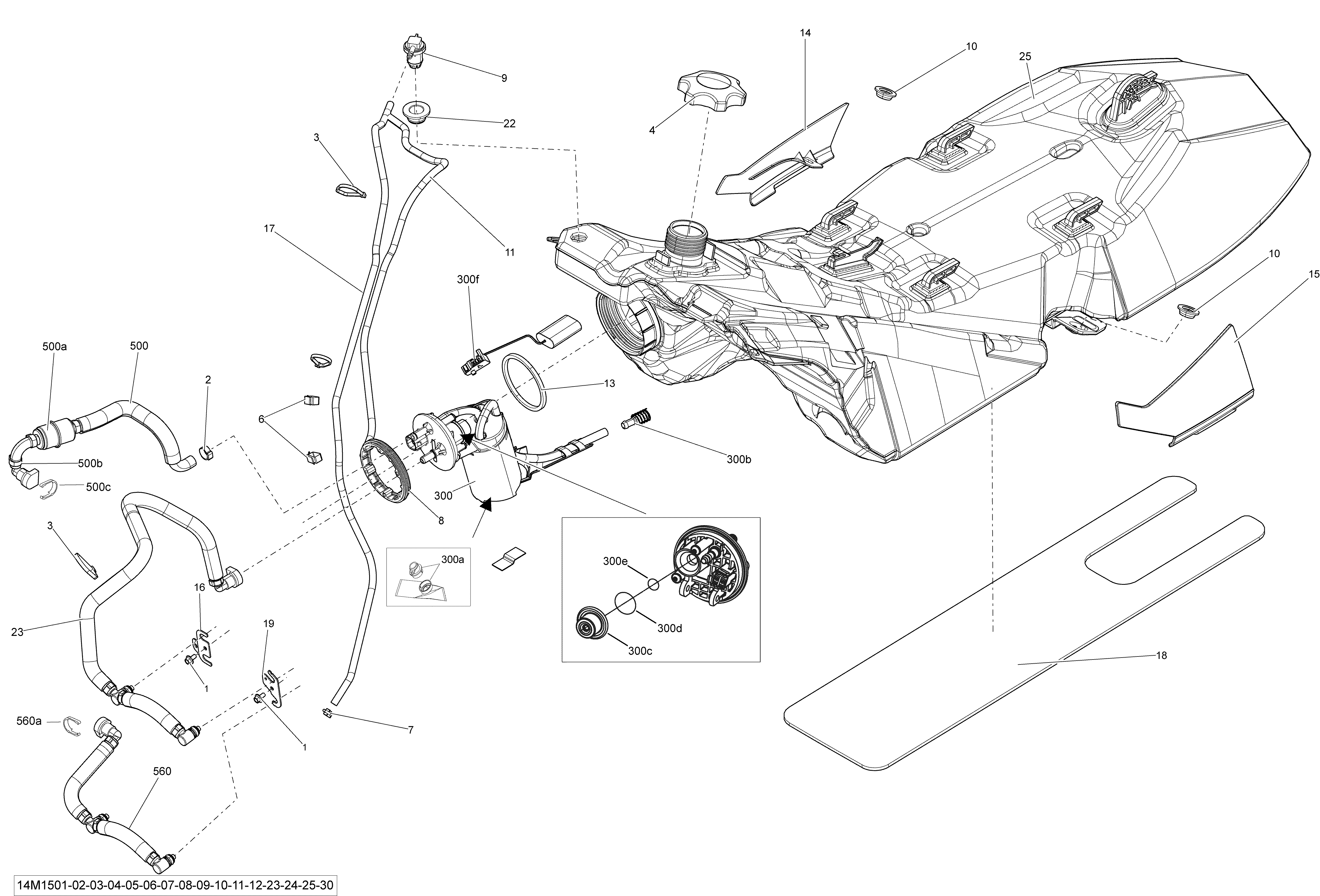

02- Fuel System _14M1508 для BRP Ski-Doo Renegade Backcountry 600HOETEC, XS137 - 2015
-
№АртикулНазвание
-
1207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
2293650053 Crimp ClampCrimp Clamp
-
4513033722 Fuel Tank CapFuel Tank Cap
-
7414554800 Spring ClampSpring Clamp
-
8513033180 RingRing
-
9513033188 Check ValveCheck Valve
-
10513033326 Shoulder BushingShoulder Bushing
-
11415080200 Hose, PolyurethaneHose, Polyurethane
-
13513033334 GasketGasket
-
14513033418 RH CapRH Cap
-
15513033419 LH CapLH Cap
-
16513033542 BracketBracket
-
18513033588 Insulating FoamInsulating Foam
-
19513033593 BracketBracket
-
22513033596 GrommetGrommet
-
23513033648 Fuel Hose Ass'yFuel Hose Ass'y
-
25513033667 Fuel TankFuel Tank
-
300513033738 Fuel Pump Ass'y. Includes 300 To 300fFuel Pump Ass'y. Includes 300 To 300f
-
300a415129451 Fuel FilterFuel Filter
-
300b414872100 Fuel FilterFuel Filter
-
300c415129821 RegulatorRegulator
-
300d415129822 O-RingO-Ring
-
300e415129823 O-RingO-Ring
-
300f415129671 Fuel Level SensorFuel Level Sensor
-
500513033715 Fuel Hose Ass'y. Includes 500 To 500cFuel Hose Ass'y. Includes 500 To 500c
-
500a513033719 FilterFilter
-
500b293650125 Oetiker ClampOetiker Clamp
-
500c513033135 Locking ClipLocking Clip
-
560513033594 Hose Ass'y. Includes 560 To 560aHose Ass'y. Includes 560 To 560a
-
560a513033135 Locking ClipLocking Clip
