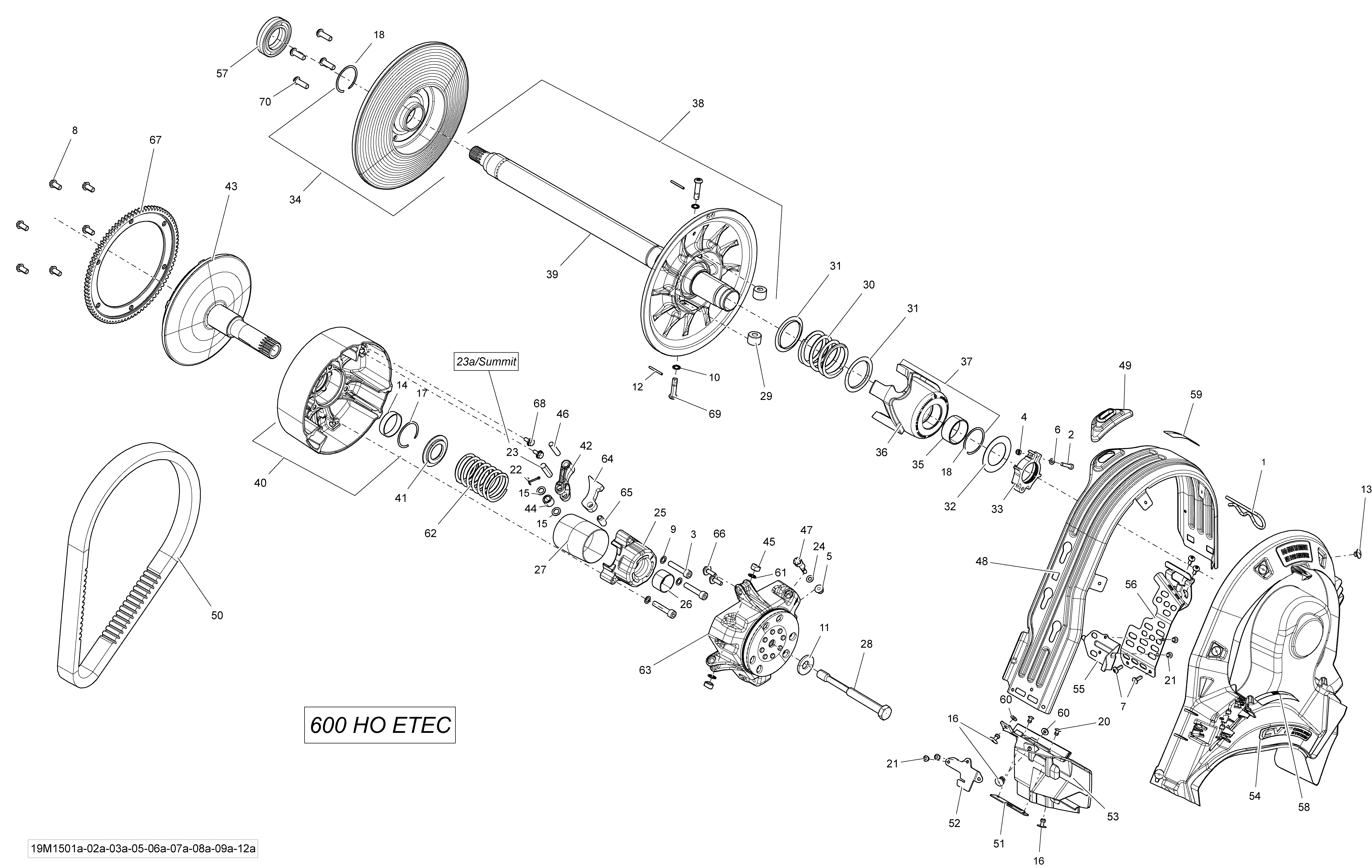

05- Pulley System 600HOETEC _19M1508a для BRP Ski-Doo Renegade Backcountry 600HOETEC, XS137 - 2015
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
4232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234051410 Flat Washer M5Flat Washer M5
-
7250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
8250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
9250200009 Lock Washer 8 mmLock Washer 8 mm
-
11250200144 Conical Spring Washer M14Conical Spring Washer M14
-
12250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
13293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
14417222758 BushingBushing
-
15417004302 Stopper WasherStopper Washer
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293370037 CirclipCirclip
-
18293370049 CirclipCirclip
-
20390909100 Avex RivetAvex Rivet
-
21390909200 Avex RivetAvex Rivet
-
22250400060 Cotter PinCotter Pin
-
23417004308 PinPin
-
24417005600 WasherWasher
-
25417007500 Spring Cover Ass'ySpring Cover Ass'y
-
26417009204 BushingBushing
-
27417009205 GuardGuard
-
28417120000 Drive Pulley BoltDrive Pulley Bolt
-
29417127016 RollerRoller
-
30417127137 SpringSpring
-
31417127116 Swivel AbutmentSwivel Abutment
-
32417127155 WasherWasher
-
33415129604 Calibration Ass'yCalibration Ass'y
-
34417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
35417127318 BushingBushing
-
37417127377 Cam Ass'yCam Ass'y
-
38417127387 Fix Flange Ass'yFix Flange Ass'y
-
40417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
41417222312 Spring SeatSpring Seat
-
42417222671 LeverLever
-
43417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
44417222947 RollerRoller
-
45417222992 Slider ShoeSlider Shoe
-
46417223164 Lever AxleLever Axle
-
47417223501 Calibration ScrewCalibration Screw
-
48417300357 Belt GuardBelt Guard
-
49417300381 GuideGuide
-
50417300383 Drive BeltDrive Belt
-
51417300421 Reinforcement PlateReinforcement Plate
-
52417300423 Front BracketFront Bracket
-
53417300430 Front SupportFront Support
-
54417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
55417300445 StopperStopper
-
56417300448 Belt Guard BracketBelt Guard Bracket
-
57504152574 Ball BearingBall Bearing
-
58516005503 Decal, EnglishDecal, English
-
59516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
60517225900 Flat WasherFlat Washer
-
61732401030 O-RingO-Ring
-
62414817700 Spring, Blue/greenSpring, Blue/green
-
63417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
64417222515 Ramp 412Ramp 412
-
65250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
66250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
67417223738 Ring GearRing Gear
-
68250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
69417127294 Pivot StudPivot Stud
-
70250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
