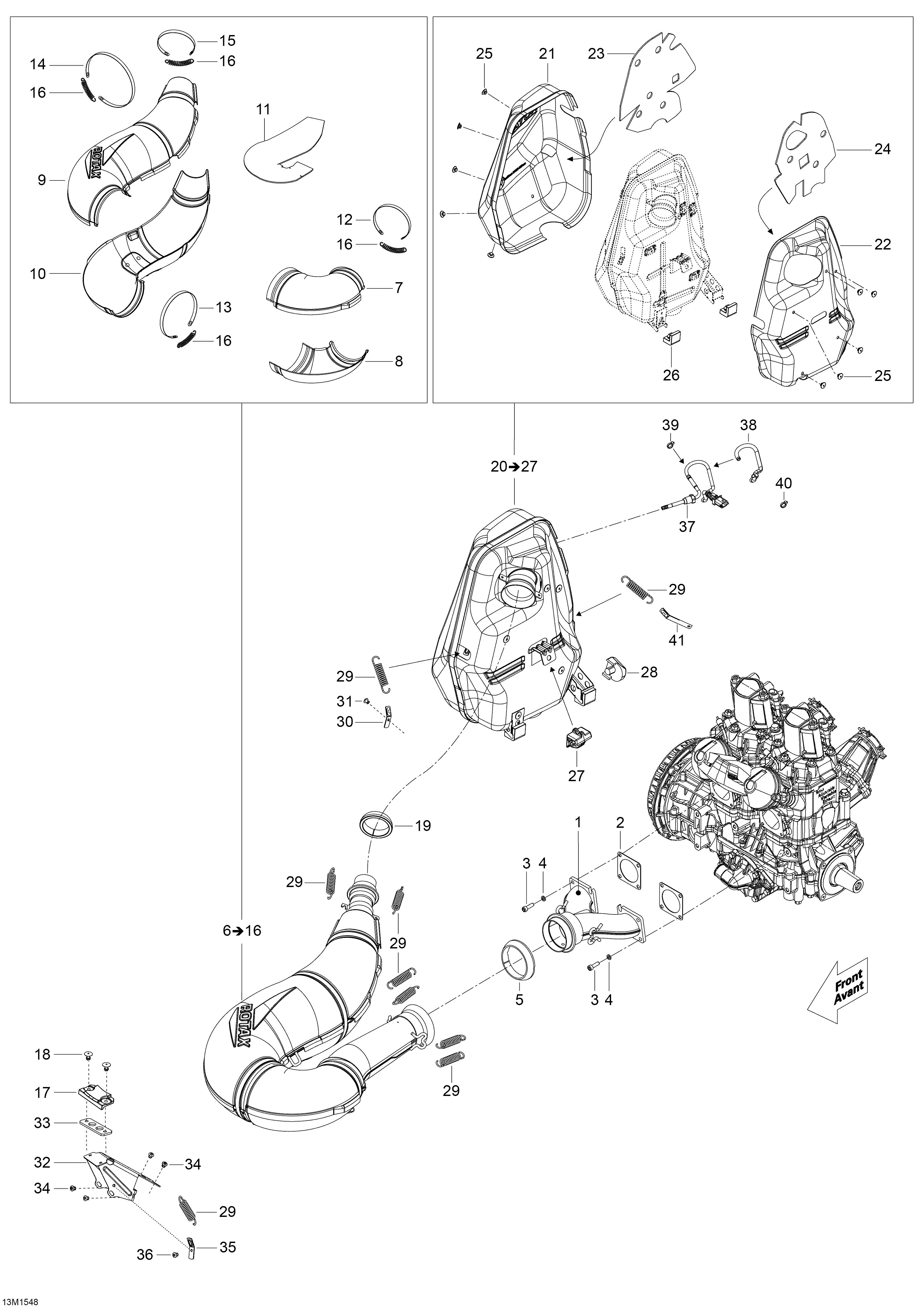

01- Exhaust System _13M1548 для BRP Ski-Doo Skandic WT 600 E-TEC - 2015
-
№АртикулНазвание
-
1420673420 Exhaust ManifoldExhaust Manifold
-
2420850552 GasketGasket
-
3514054626 Socket Head Screw M6 X 22, Scotch GripSocket Head Screw M6 X 22, Scotch Grip
-
4514053953 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514055027 Tuned Pipe Ass'y. Includes 6 To 16Tuned Pipe Ass'y. Includes 6 To 16
-
7514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
8514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
9514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054408 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
16514053643 SpringSpring
-
17514054275 BumperBumper
-
18293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
19514054174 Exhaust GasketExhaust Gasket
-
20514055025 Muffler Ass'y. Includes 20 To 27Muffler Ass'y. Includes 20 To 27
-
21514054985 RH DeflectorRH Deflector
-
22514055029 LH DeflectorLH Deflector
-
23514054711 RH Insulating WoolRH Insulating Wool
-
24514054299 LH Insulating WoolLH Insulating Wool
-
25390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
26514054529 Lower StopperLower Stopper
-
27514054606 Upper StopperUpper Stopper
-
28514055070 Rubber BumberRubber Bumber
-
29415107100 SpringSpring
-
30514054974 Spring BracketSpring Bracket
-
31390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32514054767 Exhaust Muffler SupportExhaust Muffler Support
-
33514054806 Riser ShimRiser Shim
-
34293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
35514053393 Spring BracketSpring Bracket
-
36390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
37514054856 Temperature SensorTemperature Sensor
-
38515175442 Tubing 6 mmTubing 6 mm
-
39293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41514054616 Spring BracketSpring Bracket
