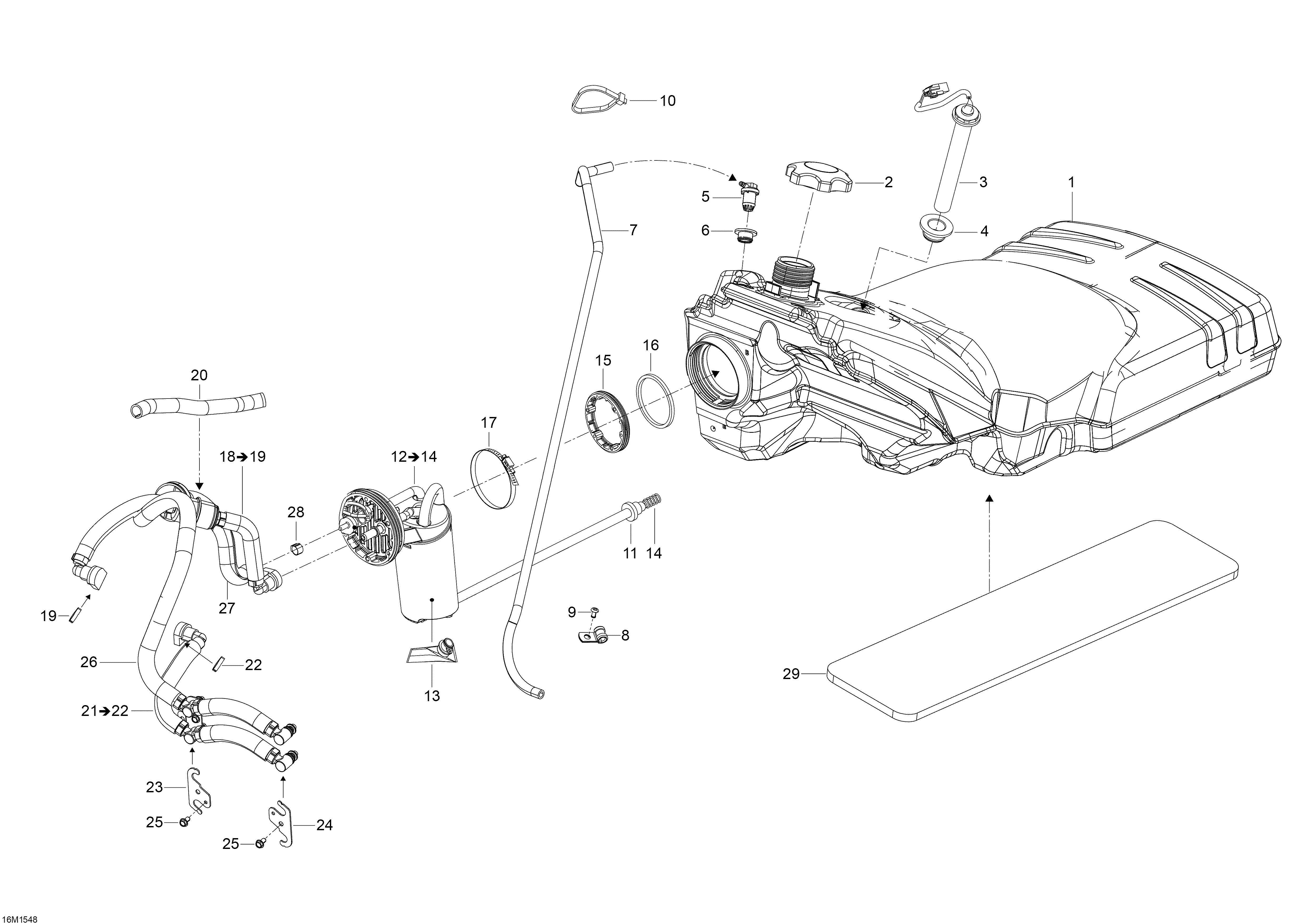

02- Fuel System _16M1548 для BRP Ski-Doo Skandic WT 600 E-TEC - 2015
-
№АртикулНазвание
-
1513033635 Fuel TankFuel Tank
-
2513033722 Fuel Tank CapFuel Tank Cap
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 Hose, PolyurethaneHose, Polyurethane
-
8715900250 Hose ClipHose Clip
-
9390909200 Avex RivetAvex Rivet
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11280000674 GrommetGrommet
-
12513033643 Fuel Pump Ass'y. Includes 12 To 14Fuel Pump Ass'y. Includes 12 To 14
-
13415129451 Fuel FilterFuel Filter
-
14414872100 Fuel FilterFuel Filter
-
15513033180 RingRing
-
16513033334 GasketGasket
-
17513033628 ClampClamp
-
18513033589 Hose Ass'y. Includes 18 To 19Hose Ass'y. Includes 18 To 19
-
19513033135 Locking ClipLocking Clip
-
20415080000 Tubing 16 mmTubing 16 mm
-
21513033594 Hose Ass'y. Includes 21 To 22Hose Ass'y. Includes 21 To 22
-
22513033135 Locking ClipLocking Clip
-
23513033542 BracketBracket
-
24513033593 BracketBracket
-
25207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
26513033631 Hose Ass`YHose Ass`Y
-
27513033544 Formed HoseFormed Hose
-
28293650047 Crimp ClampCrimp Clamp
-
29513033640 FoamFoam
