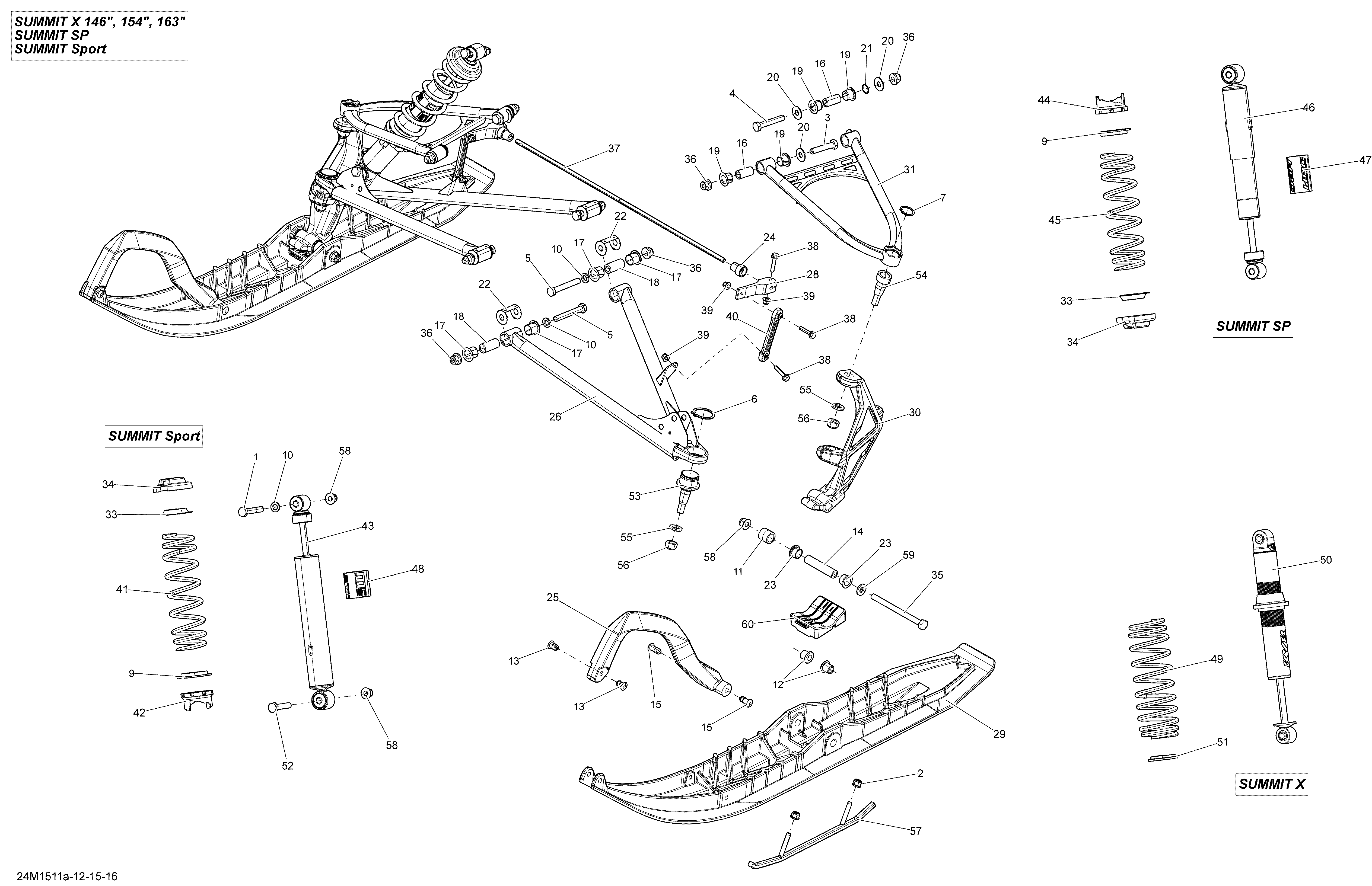

07- Front Suspension And Ski 600HOETEC_24M1512 для BRP Ski-Doo Summit SP 600HOETEC XM-146 - 2015
-
№АртикулНазвание
-
1207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
4250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
5250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
6293370035 CirclipCirclip
-
7293370070 CirclipCirclip
-
9503187500 Spring GuideSpring Guide
-
10503189564 WasherWasher
-
11503193651 SpacerSpacer
-
12505071781 CushionCushion
-
13505071812 RetainerRetainer
-
14506133300 SpacerSpacer
-
15505072133 RetainerRetainer
-
16505072143 BushingBushing
-
17505072208 BushingBushing
-
18505072209 BushingBushing
-
19505072250 BushingBushing
-
20505072392 WasherWasher
-
21505072448 O-RingO-Ring
-
22505072634 Wear PlateWear Plate
-
23505072690 Leg CushionLeg Cushion
-
24505072786 BushingBushing
-
25505072976 Black Handle. Package-SP Black-BlackBlack Handle. Package-SP Black-Black
-
25505073388 Red Handle. Package-SP Red-RedRed Handle. Package-SP Red-Red
-
26505073039 Black LH Lower ArmBlack LH Lower Arm
-
26505073040 Black RH Lower ArmBlack RH Lower Arm
-
28505073176 Stabilisator LeverStabilisator Lever
-
29505073227 Black DS Ski 2Black DS Ski 2
-
30505073238 Black LH Ski Leg. Package-SP Black-BlackBlack LH Ski Leg. Package-SP Black-Black
-
30505073360 White LH Ski Leg. Package-SP Red-RedWhite LH Ski Leg. Package-SP Red-Red
-
30505073239 Black RH Ski Leg. Package-SP Black-BlackBlack RH Ski Leg. Package-SP Black-Black
-
30505073361 White RH Ski Leg. Package-SP Red-RedWhite RH Ski Leg. Package-SP Red-Red
-
31505073466 Black LH Upper Arm 36Black LH Upper Arm 36
-
31505073467 Black RH Upper Arm 36Black RH Upper Arm 36
-
33706200785 CapCap
-
34706200881 Spring StopperSpring Stopper
-
35250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
36250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
37505073609 StabilisatorStabilisator
-
38207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
39233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40505073172 Double Ball Joint LinkDouble Ball Joint Link
-
44505073625 Adjustement CamAdjustement Cam
-
45505072792 Deep Black SpringDeep Black Spring
-
46505073236 Front Shock HPGFront Shock HPG
-
47516005533 Shock Decal, HPGShock Decal, HPG
-
52207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
53505072682 Lower Ball JointLower Ball Joint
-
54505072913 Upper Ball JointUpper Ball Joint
-
55503192491 WasherWasher
-
56232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
57860201044 Carbide Runner KitCarbide Runner Kit
-
58233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
59732900049 WasherWasher
-
60505071779 Ski StopperSki Stopper
