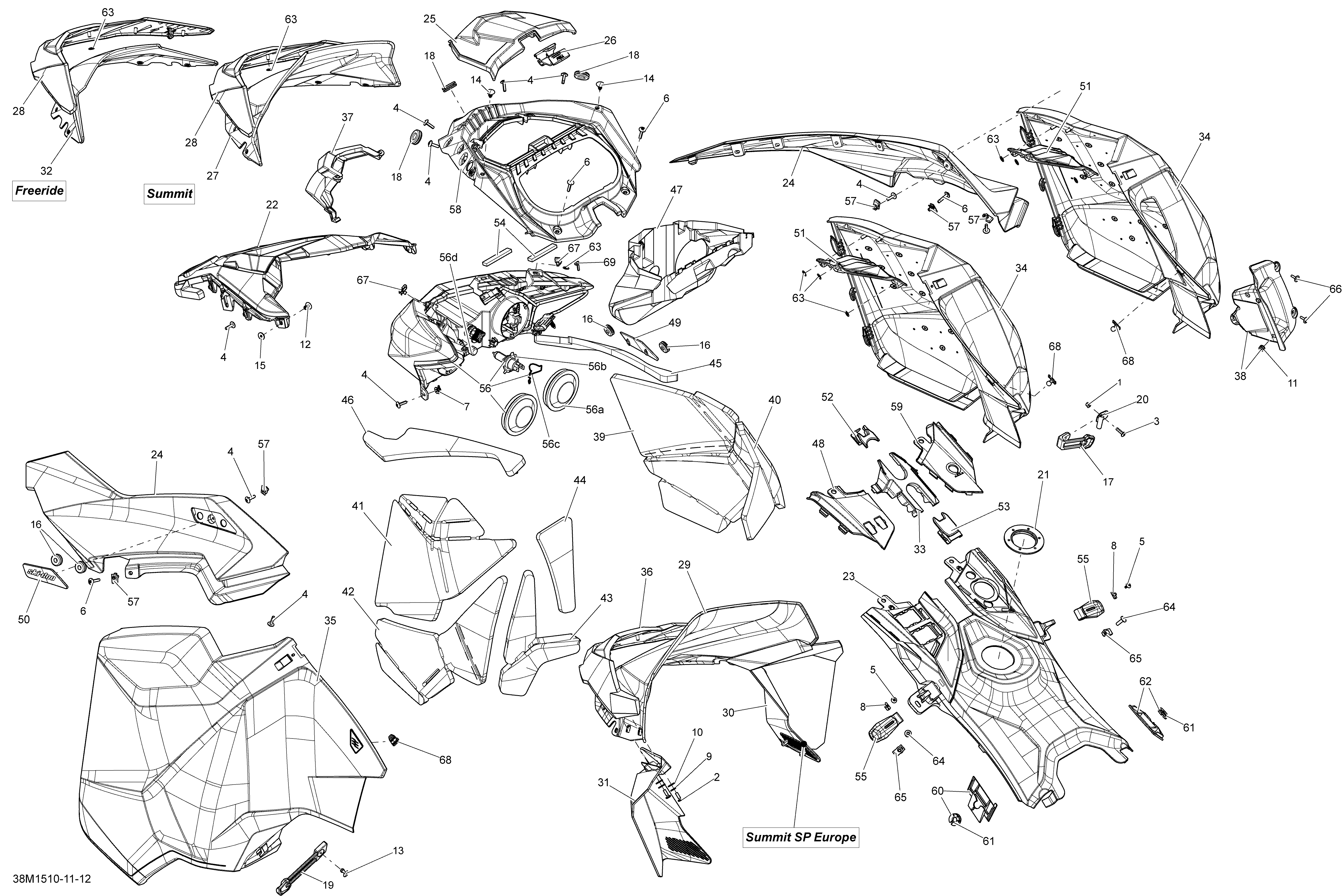

09- Hood 600HOETEC_38M1512 для BRP Ski-Doo Summit SP 600HOETEC XM-146 - 2015
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
2250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
3250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
4250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
5250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
6250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
7250100035 Jack Nut M5Jack Nut M5
-
8250100156 Weld Nut M4Weld Nut M4
-
9250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
10250200025 Washer M5Washer M5
-
11275500241 Black CapBlack Cap
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
14414644300 DartDart
-
15517124300 WasherWasher
-
16517302841 GrommetGrommet
-
17517303612 RH Panel LatchRH Panel Latch
-
18517303756 GrommetGrommet
-
19517303808 LH Panel LatchLH Panel Latch
-
20517304221 Latch SupportLatch Support
-
21517304518 Console NutConsole Nut
-
22517304796 Deep Black Center Hood. Model-Black-BlackDeep Black Center Hood. Model-Black-Black
-
22517305632 White Center Hood. Model-Red-RedWhite Center Hood. Model-Red-Red
-
23517305641 Black Rear ConsoleBlack Rear Console
-
24517305239 Deep Black RH Hood. Model-Black-BlackDeep Black RH Hood. Model-Black-Black
-
24517305240 Deep Black LH Hood. Model-Black-BlackDeep Black LH Hood. Model-Black-Black
-
24517305634 Red RH Hood. Model-Red-RedRed RH Hood. Model-Red-Red
-
24517305633 Red LH Hood. Model-Red-RedRed LH Hood. Model-Red-Red
-
25517304912 Upper Storage Access CoverUpper Storage Access Cover
-
26517304917 Cover LatchCover Latch
-
27517304921 Windshield 235mmWindshield 235mm
-
28517304922 Short Windshield SupportShort Windshield Support
-
29517304927 Windshield 345mmWindshield 345mm
-
30517304928 RH Air DeflectorRH Air Deflector
-
31517304929 LH Air DeflectorLH Air Deflector
-
33517304970 Console SupportConsole Support
-
34517305507 Deep Black RH Panel. Model-Black-Black, Electrical StartDeep Black RH Panel. Model-Black-Black, Electrical Start
-
34517305508 Black RH Panel. Model-Black-Black, Manual StartBlack RH Panel. Model-Black-Black, Manual Start
-
34517305679 Red RH Panel. Model-Red-Red, Manual StartRed RH Panel. Model-Red-Red, Manual Start
-
34517305681 Red RH Panel. Model-Red-Red, Electrical StartRed RH Panel. Model-Red-Red, Electrical Start
-
35517305510 Deep Black LH Panel. Model-Black-BlackDeep Black LH Panel. Model-Black-Black
-
35517305689 Red LH Panel. Model-Red-RedRed LH Panel. Model-Red-Red
-
36860200944 SupportSupport
-
37517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
38517305060 Deep Black RH ConsoleDeep Black RH Console
-
39517305082 RH Upper Panel FoamRH Upper Panel Foam
-
40517305085 RH Rear Panel FoamRH Rear Panel Foam
-
41517305086 LH Upper Panel FoamLH Upper Panel Foam
-
42517305087 LH Center Panel FoamLH Center Panel Foam
-
43517305088 LH Lower Panel FoamLH Lower Panel Foam
-
44517305089 LH Rear Panel FoamLH Rear Panel Foam
-
45517305090 RH Rear Hood FoamRH Rear Hood Foam
-
46517305091 LH Rear Hood FoamLH Rear Hood Foam
-
47517305095 TrunkTrunk
-
48517305128 Deep Black LH Front ConsoleDeep Black LH Front Console
-
49517305137 RH Hood Filler PlateRH Hood Filler Plate
-
50517305138 LH Hood Filler PlateLH Hood Filler Plate
-
51517305140 RH Panel Vent GridRH Panel Vent Grid
-
52517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
53517305148 Support Console CapSupport Console Cap
-
54517305157 Seal JointSeal Joint
-
55517305279 Panel LatchPanel Latch
-
56517305497 Headlamp. Includes 56 to 56dHeadlamp. Includes 56 to 56d
-
56a219400070 CapCap
-
56b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
56c219800282 Holder BracketHolder Bracket
-
56d219800281 SpringSpring
-
57250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
58517305512 Deep Black Indicator SupportDeep Black Indicator Support
-
59517305549 RH Front ConsoleRH Front Console
-
60517305722 LH Panel Clip Ass'yLH Panel Clip Ass'y
-
61517305723 RingRing
-
62517305724 RH Panel Clip Ass'yRH Panel Clip Ass'y
-
63732610072 Push NutPush Nut
-
63250100158 Push NutPush Nut
-
64250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
65250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
66250000725 Screw M4 X 16Screw M4 X 16
-
67250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
68517305734 PinPin
-
69250000725 Screw M4 X 16Screw M4 X 16
