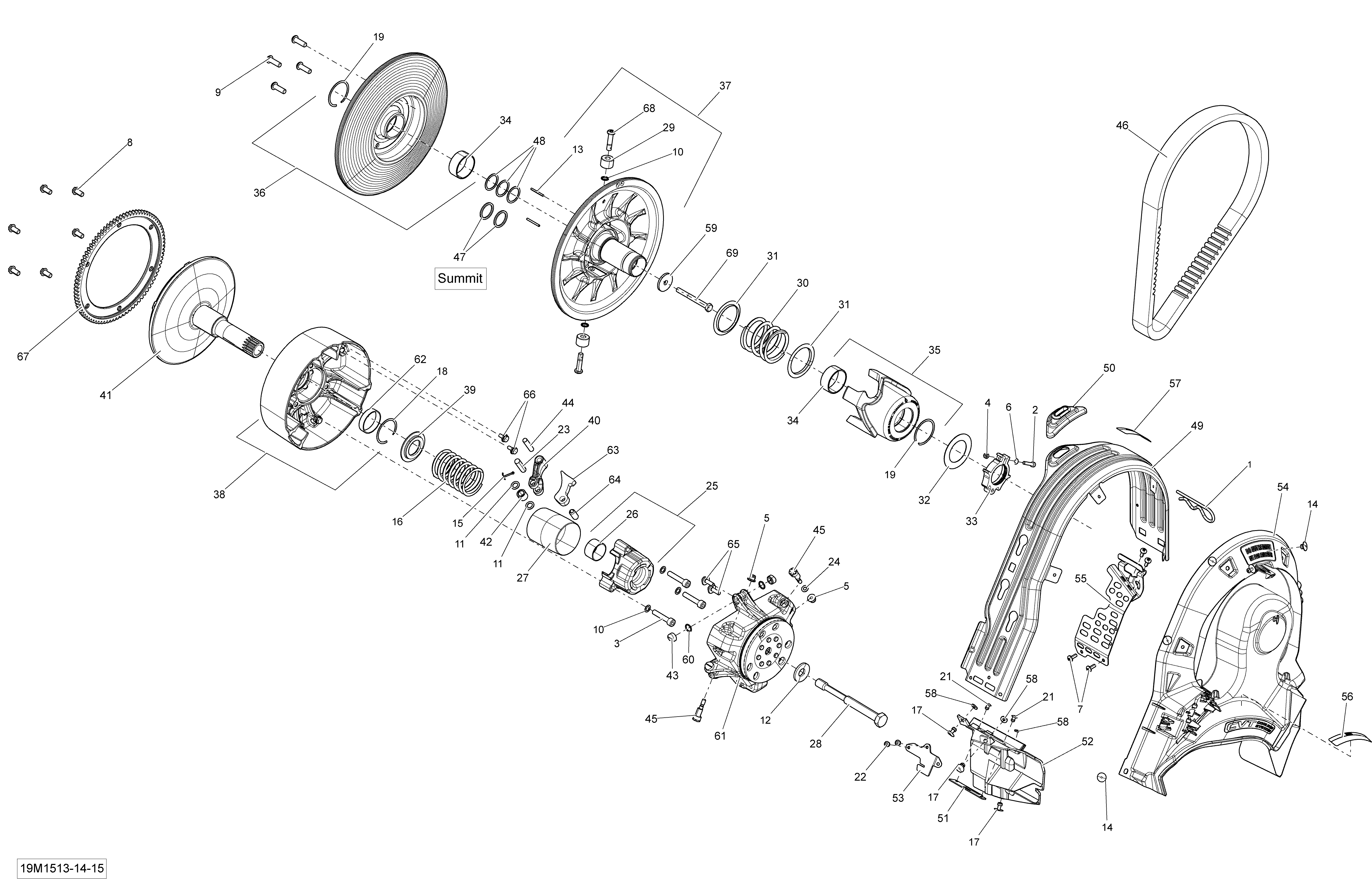

05- Pulley System _19M1515 для BRP Ski-Doo Summit Sport 600 XP146 - 2015
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
4232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234051410 Flat Washer M5Flat Washer M5
-
7250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
9250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
10250200009 Lock Washer 8 mmLock Washer 8 mm
-
11417004302 Stopper WasherStopper Washer
-
12250200144 Conical Spring Washer M14Conical Spring Washer M14
-
13250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
14293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
15250400060 Cotter PinCotter Pin
-
16414916300 Spring (Blue/Pink)Spring (Blue/Pink)
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293370037 CirclipCirclip
-
19293370049 CirclipCirclip
-
21390909100 Avex RivetAvex Rivet
-
22390909200 Avex RivetAvex Rivet
-
23417004308 PinPin
-
24417005600 WasherWasher
-
25417007500 Spring Cover Ass'ySpring Cover Ass'y
-
26417009204 BushingBushing
-
27417009205 GuardGuard
-
28417120000 Drive Pulley BoltDrive Pulley Bolt
-
29417127016 RollerRoller
-
30417127039 SpringSpring
-
31417127116 Swivel AbutmentSwivel Abutment
-
32417127155 WasherWasher
-
33415129604 Calibration Ass'yCalibration Ass'y
-
34417127318 BushingBushing
-
35417127371 Cam Ass'yCam Ass'y
-
36417127366 Slider Flange Ass'ySlider Flange Ass'y
-
37417127392 Fixe Flange Ass'yFixe Flange Ass'y
-
38417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
39417222312 Spring SeatSpring Seat
-
40417222671 LeverLever
-
41417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
42417222947 RollerRoller
-
43417222992 Slider ShoeSlider Shoe
-
44417223164 Lever AxleLever Axle
-
45417223501 Calibration ScrewCalibration Screw
-
46417300197 Drive BeltDrive Belt
-
47417300252 SpacerSpacer
-
48417300265 SpacerSpacer
-
49417300357 Belt GuardBelt Guard
-
50417300381 GuideGuide
-
51417300421 Reinforcement PlateReinforcement Plate
-
52417300422 Front SupportFront Support
-
53417300423 Front BracketFront Bracket
-
54417300439 CVT Air DuctCVT Air Duct
-
55417300448 Belt Guard BracketBelt Guard Bracket
-
56516005503 Decal, EnglishDecal, English
-
57516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
58517225900 Flat WasherFlat Washer
-
59517302322 Strength WasherStrength Washer
-
60732401030 O-RingO-Ring
-
61417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
62417222758 BushingBushing
-
63417222552 Ramp 417Ramp 417
-
64250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
65250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
66250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
68417127294 Pivot StudPivot Stud
-
69207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
