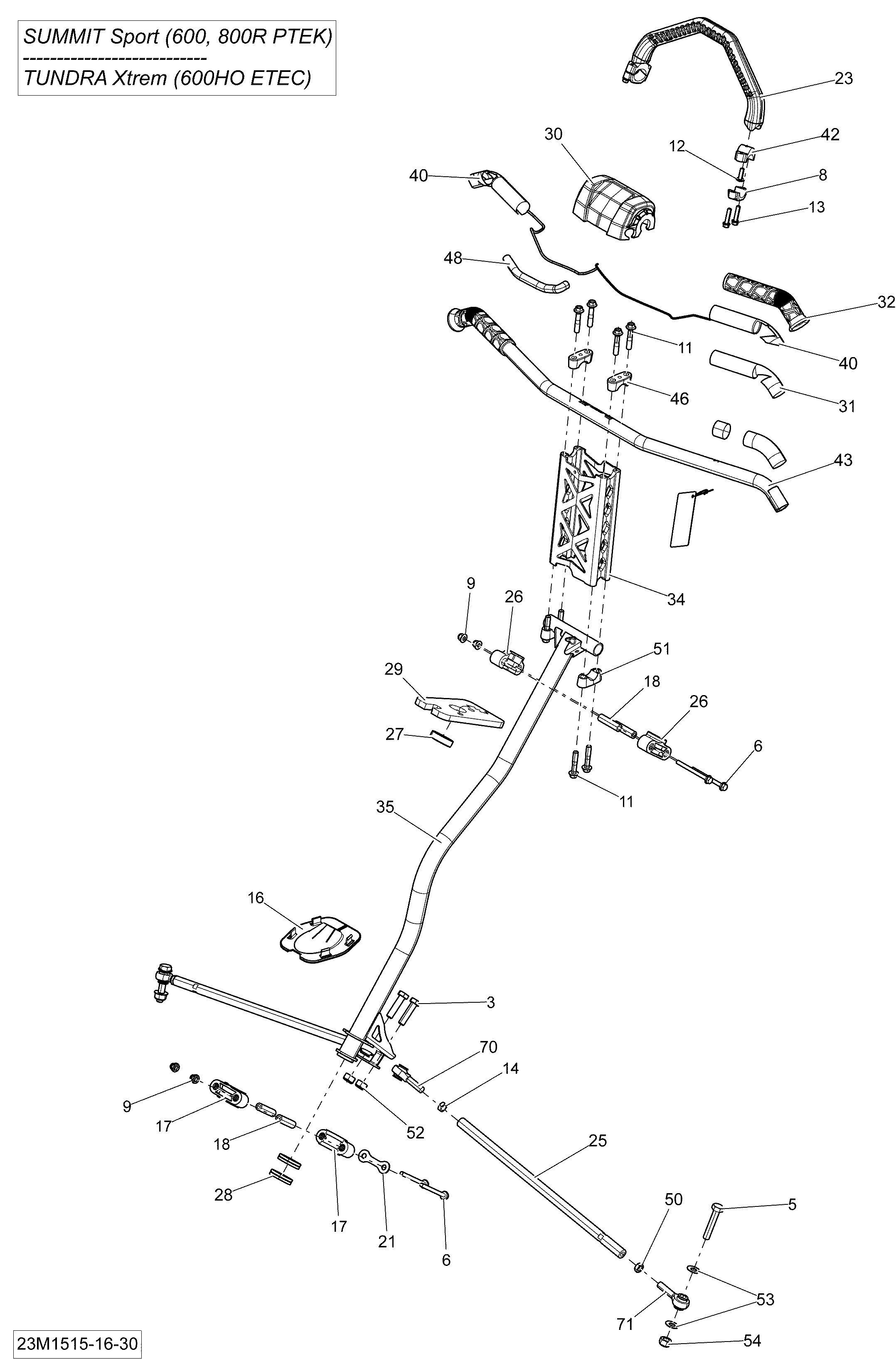

07- Steering _23M1515 для BRP Ski-Doo Summit Sport 600 XP146 - 2015
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
5207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
6207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
8219800081 ClampClamp
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
12250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
13250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
14250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
16506152163 PlatePlate
-
17506152217 Lower Half-HousingLower Half-Housing
-
18506152297 Housing BushingHousing Bushing
-
23506152460 Moulding StrapMoulding Strap
-
25506152482 Tie-RodTie-Rod
-
26506152508 Upper Half-HousingUpper Half-Housing
-
27506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
28506152518 Lower Vibration RingLower Vibration Ring
-
29506152521 CushionCushion
-
30506152541 Steering PadSteering Pad
-
31506152611 InsulantInsulant
-
32506152486 GripGrip
-
34860200821 Extension KitExtension Kit
-
35506152584 Black Main TubeBlack Main Tube
-
40506152602 Heating Element 28 WATTHeating Element 28 WATT
-
42506152703 Black Support PlateBlack Support Plate
-
43506152709 Clear Handle BarClear Handle Bar
-
46506152750 Steering SupportSteering Support
-
48515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
50732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
51506152751 Steering SupportSteering Support
-
52233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
53506152582 WasherWasher
-
54233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
70506152081 LH Thread Ball JointLH Thread Ball Joint
-
71506152019 RH Thread Ball JointRH Thread Ball Joint
