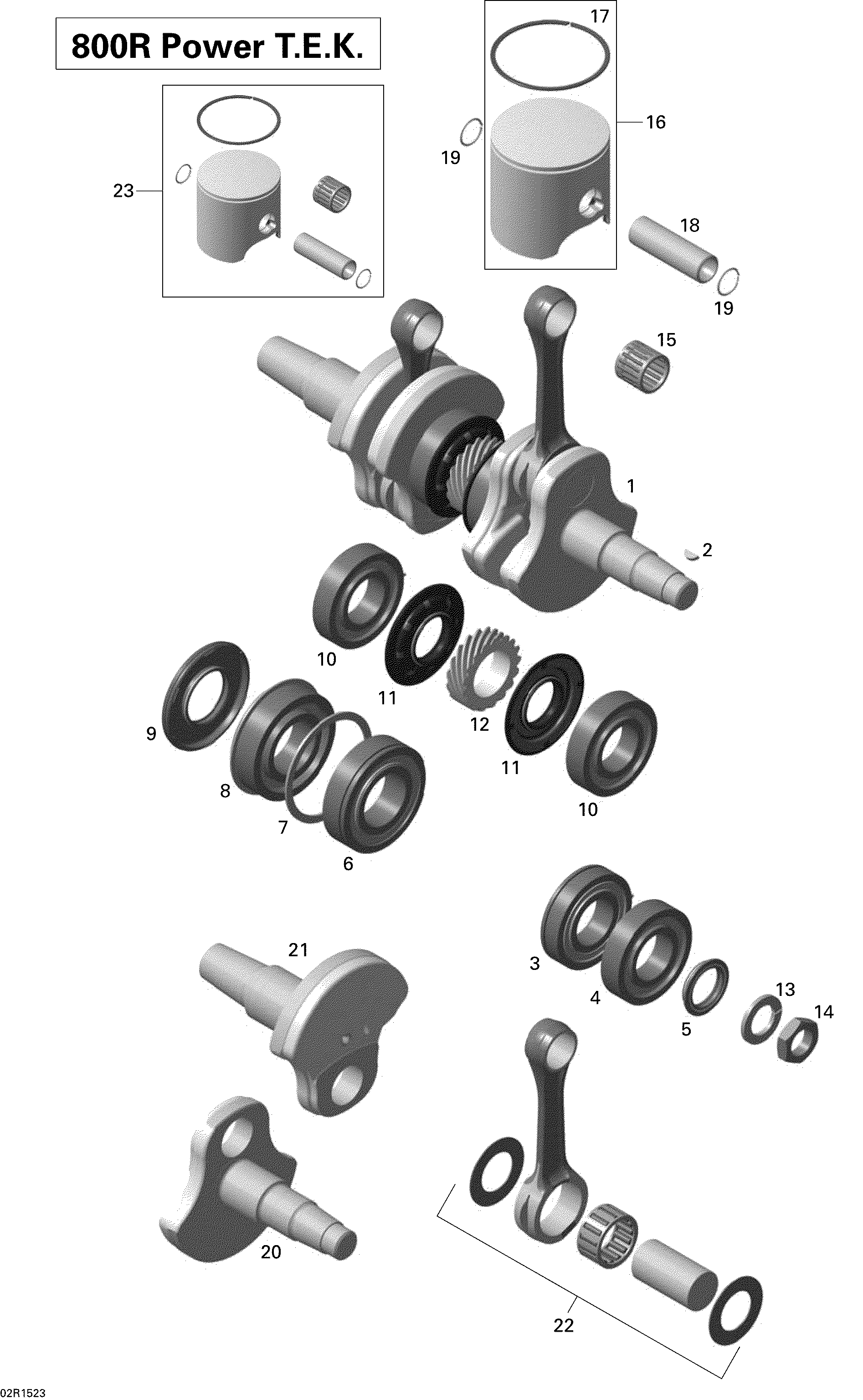

01- Crankshaft And Pistons _02R1523 для BRP Ski-Doo Summit Sport 800RPTEK XP154 - 2015
-
№АртикулНазвание
-
1420893097 Crankshaft Ass'y. Includes 1 to 12Crankshaft Ass'y. Includes 1 to 12
-
2420246015 Woodruff KeyWoodruff Key
-
3420832175 Ball BearingBall Bearing
-
4420832575 Ball BearingBall Bearing
-
5420931795 Oil SealOil Seal
-
6420832602 Ball BearingBall Bearing
-
7420926190 WasherWasher
-
8420832702 Ball BearingBall Bearing
-
9420931284 Oil SealOil Seal
-
10420832175 Ball BearingBall Bearing
-
11420931455 Oil SealOil Seal
-
12420834565 Central GearCentral Gear
-
13420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
14420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
15420832030 Needle BearingNeedle Bearing
-
16420890726 Piston Ass'y, 81.87 mm. Includes 16 to 17Piston Ass'y, 81.87 mm. Includes 16 to 17
-
17420815416 Semi-Trapez RingSemi-Trapez Ring
-
18420916480 Piston PinPiston Pin
-
19420845467 Piston CirclipPiston Circlip
-
22420892568 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
22420892569 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
23415129855 Piston KitPiston Kit
