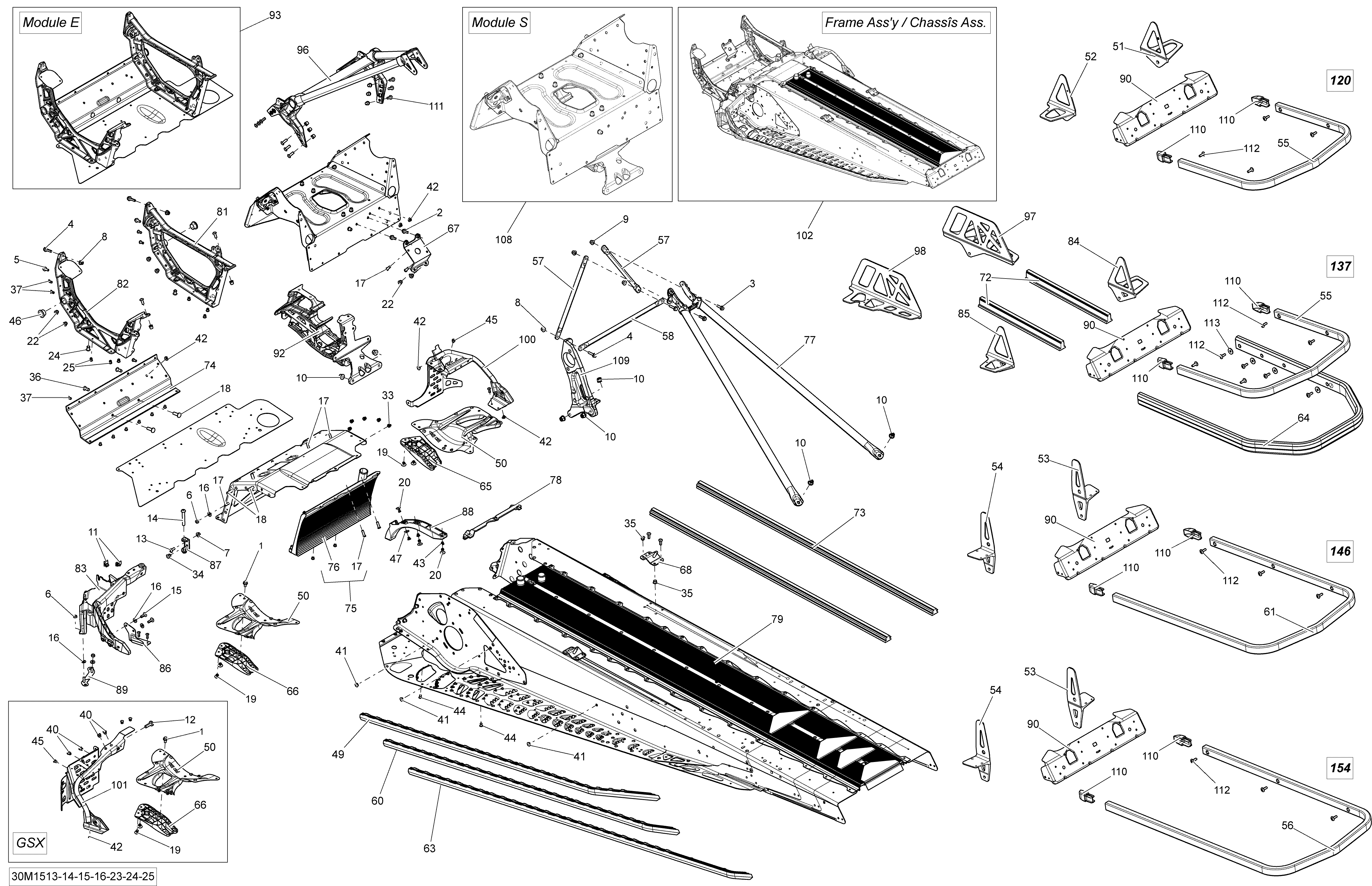

09- Frame _30M1516 для BRP Ski-Doo Summit Sport 800RPTEK XP154 - 2015
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
7233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
14250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
15250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
16250200039 Flat WasherFlat Washer
-
17250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
18250300038 Clinch StudClinch Stud
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
22293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
24293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
25293150144 Stavex RivetStavex Rivet
-
33293150146 Henrob RivetHenrob Rivet
-
34293150147 Hemlock RivetHemlock Rivet
-
35293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
36293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
37293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
41293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
41293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
41293730053 Black Dart 5 mmBlack Dart 5 mm
-
42293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
43390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
44390909100 Avex RivetAvex Rivet
-
45390909200 Avex RivetAvex Rivet
-
46505073317 Leg CushionLeg Cushion
-
50518324874 RH ReinforcementRH Reinforcement
-
50518324875 LH ReinforcementLH Reinforcement
-
53518324976 RH Suspension BracketRH Suspension Bracket
-
54518324977 LH Suspension BracketLH Suspension Bracket
-
56518324982 Clear Rear Bumper, 154''Clear Rear Bumper, 154''
-
57518325114 Upper Column SupportUpper Column Support
-
58518325115 Center Column SupportCenter Column Support
-
60518325159 RH RollerRH Roller
-
60518325160 LH RollerLH Roller
-
65518325782 RH DeflectorRH Deflector
-
66518325783 LH DeflectorLH Deflector
-
67518325943 MAG Engine SupportMAG Engine Support
-
68518325973 RH Rear BaseRH Rear Base
-
68518325974 LH Rear BaseLH Rear Base
-
74518326198 Front MemberFront Member
-
75518326485 Front RadiatorFront Radiator
-
76518326486 Front RadiatorFront Radiator
-
77518326559 Rear MemberRear Member
-
78518326656 SealSeal
-
79518326692 Rear Radiator Ass'y, 154''Rear Radiator Ass'y, 154''
-
81518326795 RH MemberRH Member
-
82518326796 LH MemberLH Member
-
83518326820 LH StirupLH Stirup
-
86518326960 SupportSupport
-
87518326961 U-AttachU-Attach
-
89518326986 AttachAttach
-
90518327105 Rear CapRear Cap
-
92518327487 Front Suspension Support. Included With 518328320 S ModuleFront Suspension Support. Included With 518328320 S Module
-
93518327567 Front E ModuleFront E Module
-
96518326970 Front MemberFront Member
-
100518327863 RH StirupRH Stirup
-
102415129903 Frame Ass'yFrame Ass'y
-
108518328320 Cross Member S Module. Include 518327487 Front Susp SupportCross Member S Module. Include 518327487 Front Susp Support
-
109518327460 Pulley SupportPulley Support
-
110520000567 Full Moon CapFull Moon Cap
-
111293150146 Henrob RivetHenrob Rivet
-
112250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
113224061201 Flat WasherFlat Washer
