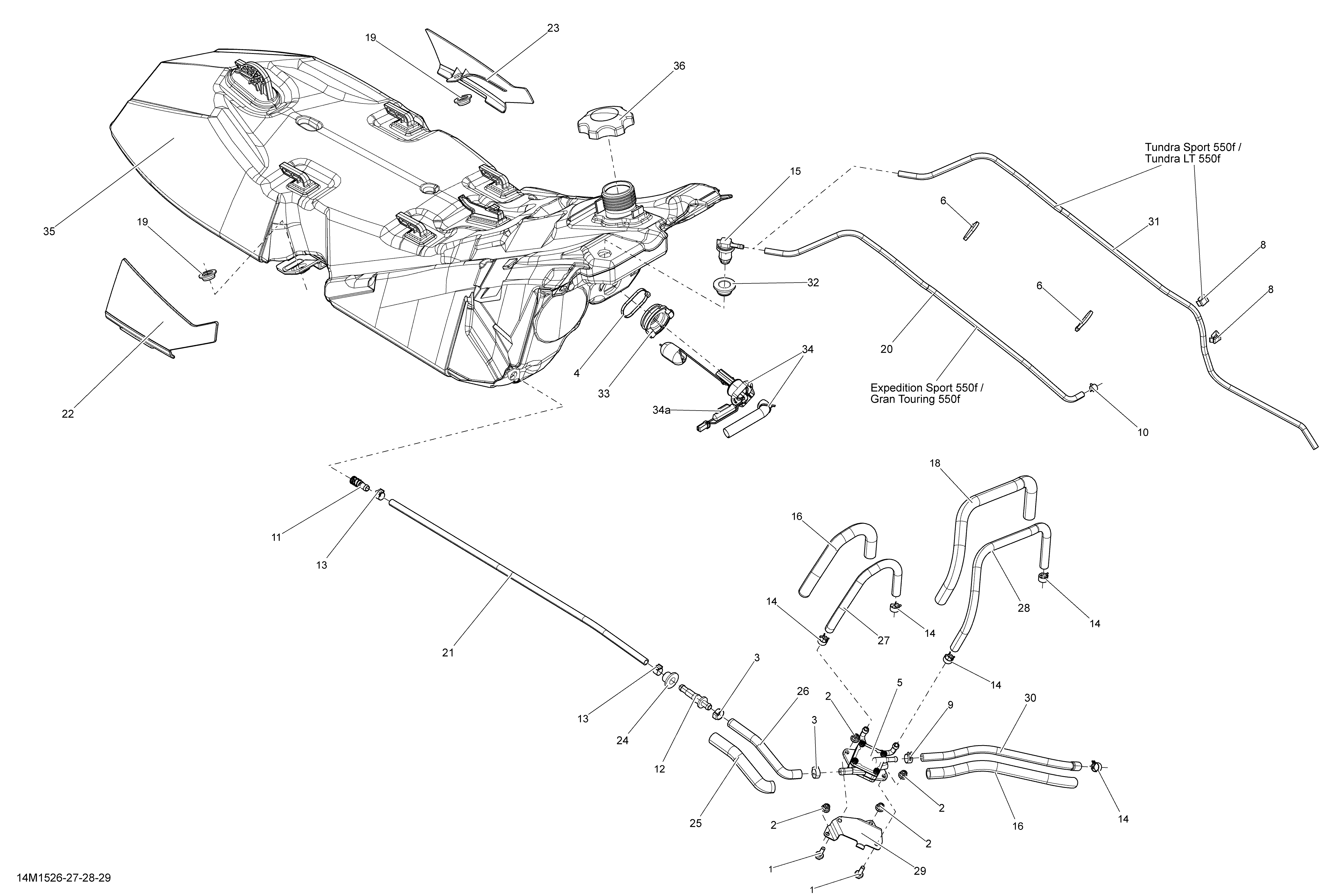

02- Fuel System _14M1528 для BRP Ski-Doo Tundra Sport 550F XU-137 - 2015
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3293650053 Crimp ClampCrimp Clamp
-
4293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
5403901813 Fuel PumpFuel Pump
-
6414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
8414227300 ClipClip
-
9414415200 Spring ClampSpring Clamp
-
11414872100 Fuel FilterFuel Filter
-
12414872700 Male ConnectorMale Connector
-
13513033010 Norma Spring ClampNorma Spring Clamp
-
14513033029 Universal Spring ClampUniversal Spring Clamp
-
15513033188 Check ValveCheck Valve
-
16415080000 Tubing 16 mmTubing 16 mm
-
18415080000 Tubing 16 mmTubing 16 mm
-
19513033326 Shoulder BushingShoulder Bushing
-
21513033332 HoseHose
-
22513033418 RH CapRH Cap
-
23513033419 LH CapLH Cap
-
24513033435 GrommetGrommet
-
25415080000 Tubing 16 mmTubing 16 mm
-
26513033499 Formed HoseFormed Hose
-
27415129492 HoseHose
-
28415129492 HoseHose
-
29513033543 Pump BracketPump Bracket
-
30513033553 Formed HoseFormed Hose
-
31415080200 Hose, PolyurethaneHose, Polyurethane
-
32513033596 GrommetGrommet
-
33513033606 GrommetGrommet
-
34513033642 Fuel Level Sensor Ass'y. Include 34 To 34aFuel Level Sensor Ass'y. Include 34 To 34a
-
34a710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
35513033695 Fuel TankFuel Tank
-
36513033720 Fuel Tank Cap. North AmericaFuel Tank Cap. North America
