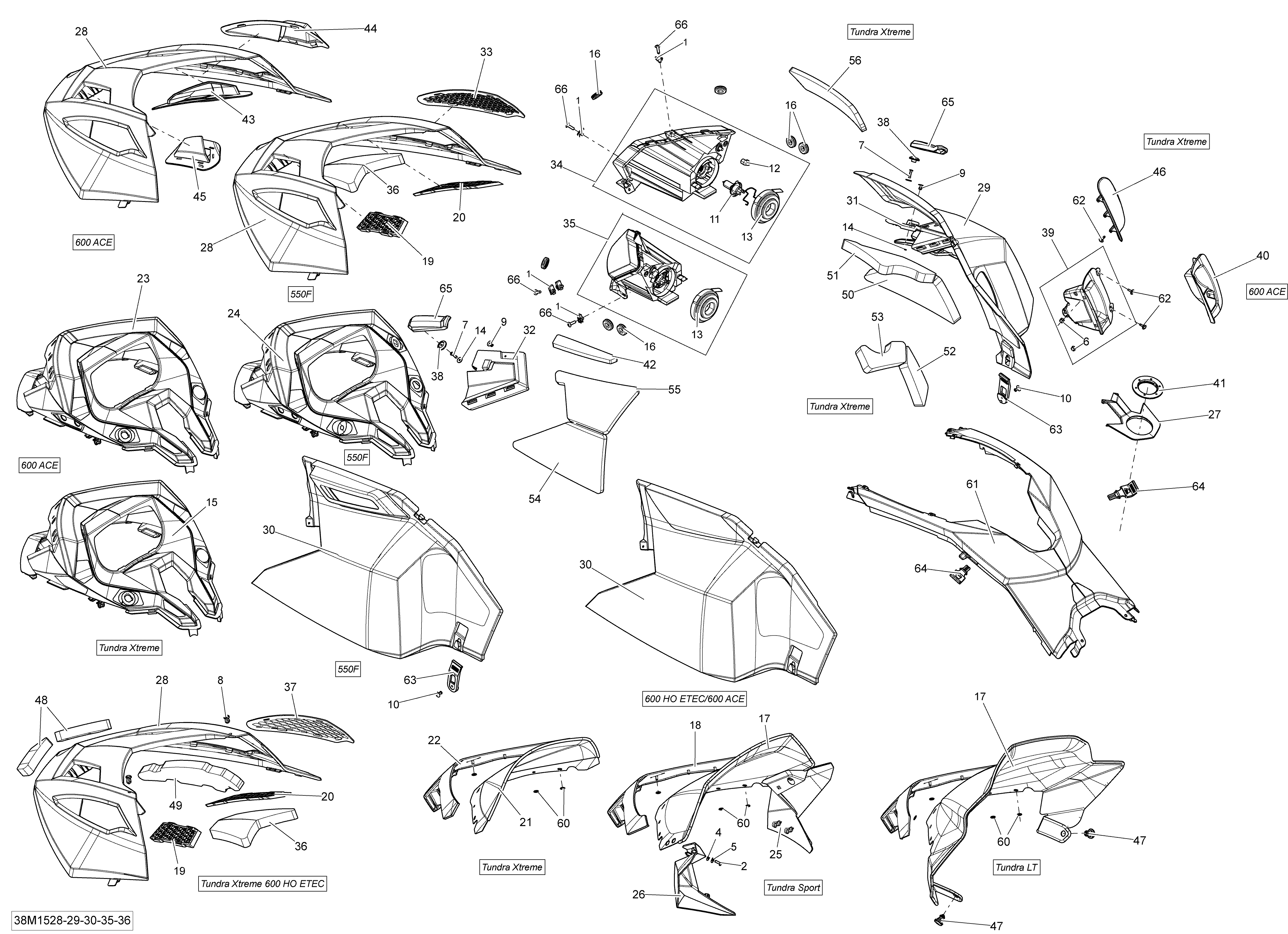

09- Hood _38M1528 для BRP Ski-Doo Tundra Sport 550F XU-137 - 2015
-
№АртикулНазвание
-
1250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
4250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
5250200025 Washer M5Washer M5
-
6275500241 Black CapBlack Cap
-
7293150014 Pop Rivet 3/16''Pop Rivet 3/16''
-
9293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
11515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
12515176498 CapCap
-
13515176499 CoverCover
-
14517124300 WasherWasher
-
16517303756 GrommetGrommet
-
17517305720 Windshield (430)Windshield (430)
-
18860200229 Medium Windshield SupportMedium Windshield Support
-
19517303804 LH Hood GrillLH Hood Grill
-
20517303805 RH Hood GrillRH Hood Grill
-
24517303999 Indicator SupportIndicator Support
-
25517304024 RH Console Air DeflectorRH Console Air Deflector
-
26517304025 LH Console Air DeflectorLH Console Air Deflector
-
27517304027 Deep Black Cap ConsoleDeep Black Cap Console
-
28517305014 HoodHood
-
29517305016 RH PanelRH Panel
-
30517305017 LH PanelLH Panel
-
31517304090 RH InsertRH Insert
-
32517304092 LH Panel InsertLH Panel Insert
-
33517304187 RH Lateral Hood GrillRH Lateral Hood Grill
-
34517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
35517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
36517304877 Foam HoodFoam Hood
-
38517304320 Anchor LinkAnchor Link
-
39517304322 Black RH ConsoleBlack RH Console
-
41517304518 Console NutConsole Nut
-
42517304880 FoamFoam
-
50517304870 FoamFoam
-
51517304871 FoamFoam
-
54517304874 FoamFoam
-
55517304875 FoamFoam
-
60732610072 Push NutPush Nut
-
61517305015 ConsoleConsole
-
62250000725 Screw M4 X 16Screw M4 X 16
-
63517304999 Rear Panel LatchRear Panel Latch
-
64517304093 Center Panel LatchCenter Panel Latch
-
65517305186 Front Latch PanelFront Latch Panel
-
66250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
