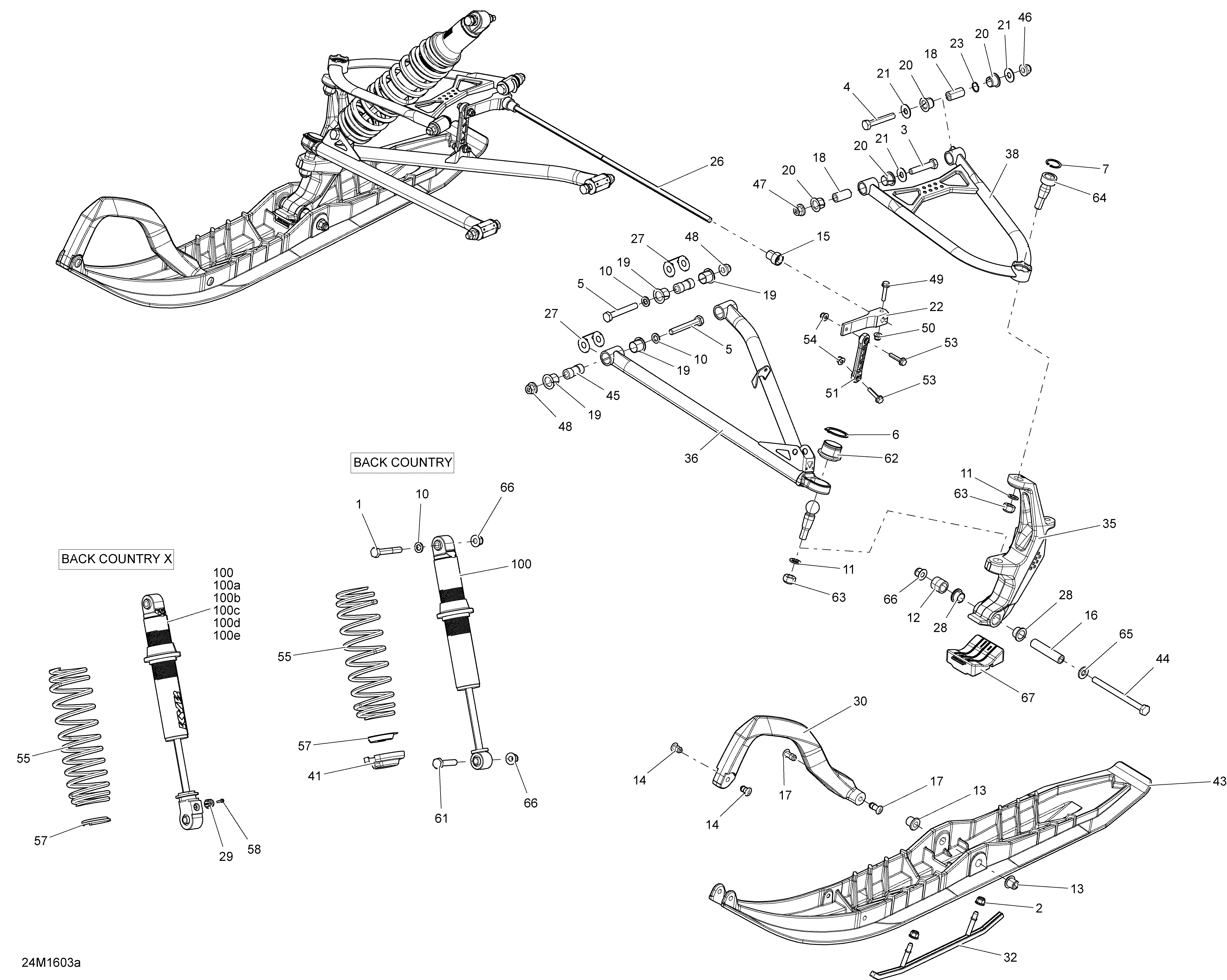

07- Front Suspension And Ski - 146 Model для BRP Ski-Doo RENEGADE 800R E-TEC - 2016

№

Артикул

Название
1

207006544 Hex. Screw M10 X 1.5 X 65

Hex. Screw M10 X 1.5 X 65

1 050 ₽
2

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
3

250000289 Screw Hex. M10 X 1.25 X 50

Screw Hex. M10 X 1.25 X 50

610 ₽
4

250000290 Screw Hex. M10 X 1.25 X 60

Screw Hex. M10 X 1.25 X 60

610 ₽
5

250000291 Screw Hex. M10 X 1.25 X 70

Screw Hex. M10 X 1.25 X 70

570 ₽
6

293370035 Circlip

Circlip

1 380 ₽
7

293370070 Circlip

Circlip

2 490 ₽
10

503189564 Washer

Washer

250 ₽
11

503192491 Washer

Washer

1 590 ₽
12

503193651 Spacer

Spacer

2 520 ₽
13

505071781 Ski Bushing

Ski Bushing

5 570 ₽
14

505071812 Retainer 17mm long

Retainer 17mm long

1 490 ₽
15

505072064 Bushing

Bushing

1 500 ₽
16

506133300 Spacer

Spacer

5 430 ₽
17

505072133 Retainer 23mm Long

Retainer 23mm Long

2 490 ₽
18

505072143 Sleeve

Sleeve

6 580 ₽
18

505072209 Sleeve

Sleeve

8 330 ₽
19

505072208 Bushing

Bushing

1 790 ₽
20

505072250 Bushing

Bushing

1 790 ₽
21

505072392 Washer

Washer

1 540 ₽
22

505072394 Stabilisator Lever

Stabilisator Lever

5 600 ₽
23

505072448 O-Ring

O-Ring

750 ₽
26

505072602 Stabilisator

Stabilisator

24 150 ₽
27

505072634 Wear Plate

Wear Plate

1 470 ₽
28

505072690 Leg Bushing

Leg Bushing

6 510 ₽
29

505072753 Adjustment Knob

Adjustment Knob

680 ₽
30

505073388 Red, Handle

Red, Handle

16 700 ₽
32

860201044 Carbide Runner Kit (Square Runner)

Carbide Runner Kit (Square Runner)

26 460 ₽
35

505073631 Black, Ski Leg RH

Black, Ski Leg RH

77 350 ₽
35

505073630 Black, LH Ski Leg

Black, LH Ski Leg

77 350 ₽
35

505073882 Red, LH Ski Leg

Red, LH Ski Leg

77 350 ₽
35

505073883 Red, RH Ski Leg

Red, RH Ski Leg

77 350 ₽
36

505073584 Black Epoxy, RH Lower Arm

Black Epoxy, RH Lower Arm

95 200 ₽
36

505073583 Black Epoxy, LH Lower Arm

Black Epoxy, LH Lower Arm

90 650 ₽
38

505073589 Black Epoxy, RH Upper Arm

Black Epoxy, RH Upper Arm

68 530 ₽
38

505073588 Black Epoxy, LH Upper Arm

Black Epoxy, LH Upper Arm

68 530 ₽
41

706200785 Cap

Cap

1 590 ₽
42

706200881 Spring Stopper

Spring Stopper

4 340 ₽
43

505073227 Black, Ski

Black, Ski

43 060 ₽
44

250000703 Hex. Screw M10 X 130

Hex. Screw M10 X 130

3 610 ₽
46

250100165 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

310 ₽
49

207663056 Hex Flanged Screw M6 X 1.0 X 30

Hex Flanged Screw M6 X 1.0 X 30

410 ₽
50

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

1 470 ₽
51

505072204 Sway Bar Double Joint Link

Sway Bar Double Joint Link

1 520 ₽
55

505072526 Deep Black, Spring. Package Backcountry

Deep Black, Spring. Package Backcountry

5 610 ₽
55

505072846 Deep Black Spring. Package Backcountry X

Deep Black Spring. Package Backcountry X

5 100 ₽
57

503194270 Spring Stopper. Package Backcountry X

Spring Stopper. Package Backcountry X

5 600 ₽
58

205031060 Socket Screw M3 X 0.5 x 10. Package Backcountry X

Socket Screw M3 X 0.5 x 10. Package Backcountry X

200 ₽
61

207005554 Hex Screw M10 X 1.5 X 55

Hex Screw M10 X 1.5 X 55

2 650 ₽
62

505073636 Ball Joint

Ball Joint

40 250 ₽
63

232521464 Hex Elastic Nut M12 X 1.25

Hex Elastic Nut M12 X 1.25

740 ₽
64

505072913 Upper Ball Joint

Upper Ball Joint

37 100 ₽
65

503192496 Washer

Washer

280 ₽
66

233201464 Hex. Elast. Flanged Nut M10 x 1.5

Hex. Elast. Flanged Nut M10 x 1.5

2 650 ₽
67

505072594 Ski Stopper

Ski Stopper

10 660 ₽
100

505073555 Front Shock. Package Backcountry X. Europe Model

Front Shock. Package Backcountry X. Europe Model

40 250 ₽
100

505073699 Front Shock. Package Backcountry

Front Shock. Package Backcountry

28 290 ₽
100

505073702 Front Shock. Package Backcountry X. North America Model

Front Shock. Package Backcountry X. North America Model

40 250 ₽
100a

414888312 O-Ring

O-Ring

1 380 ₽
100b

505070400 O-Ring

O-Ring

370 ₽
100c

503189308 Piston Ring

Piston Ring

6 610 ₽
100e

505070398 Air Valve

Air Valve

5 950 ₽
100f

505070399 Screw

Screw

350 ₽
