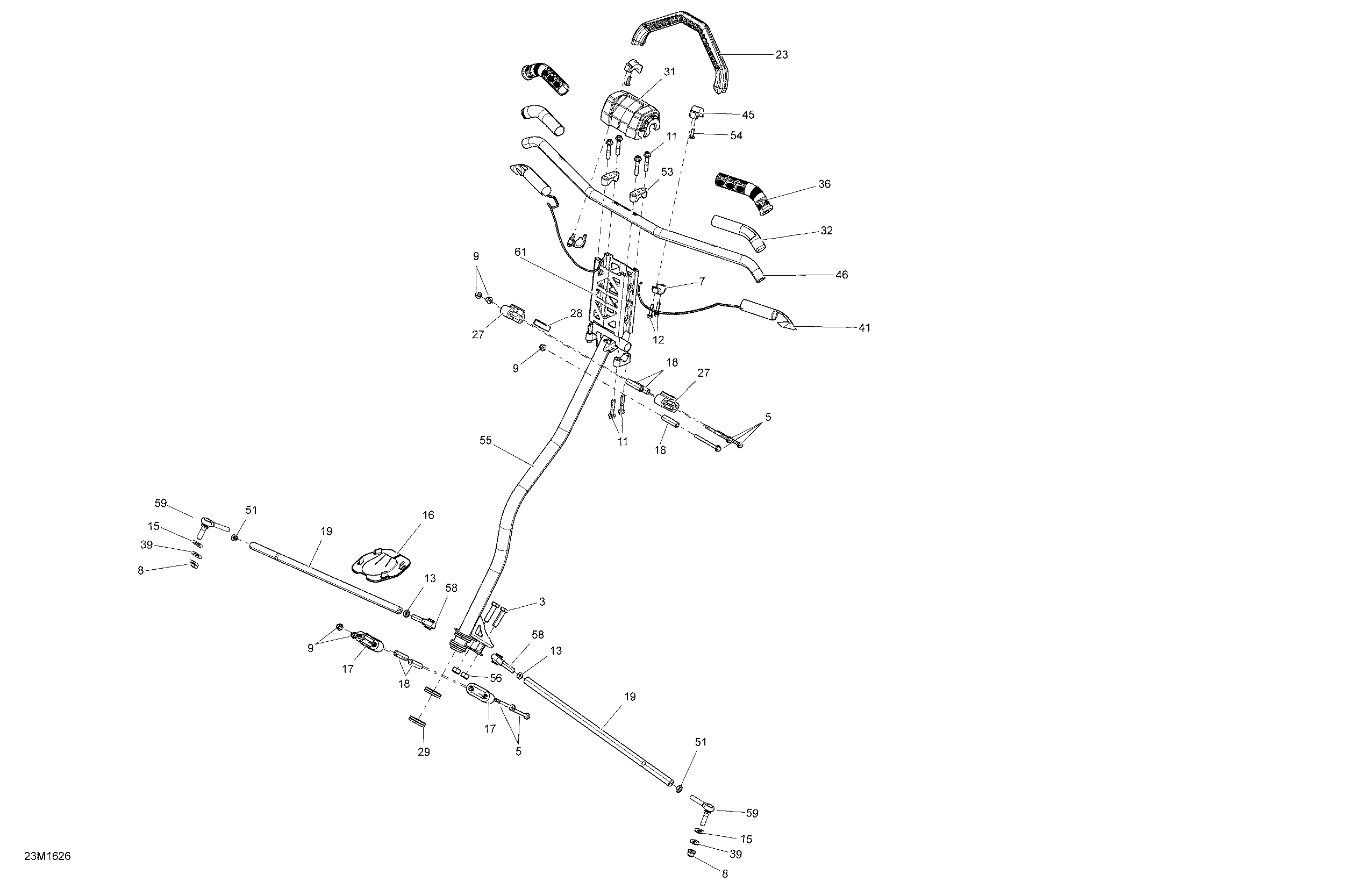

07- Steering - 800R ETEC для BRP Ski-Doo RENEGADE 800R E-TEC - 2016
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 1.5 X 40Hex. Screw M10 X 1.5 X 40
-
5207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
7719000049 Clamps KitClamps Kit
-
8233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
9233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
12250000447 Hex Flanged Screw M6 X 25. Package BC, BCXHex Flanged Screw M6 X 25. Package BC, BCX
-
13250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
15503192496 WasherWasher
-
16506152163 PlatePlate
-
17506152588 Lower Half-HousingLower Half-Housing
-
18506152297 Housing BushingHousing Bushing
-
19506152496 Tie-Rod. EXCEPT Package BC, BCXTie-Rod. EXCEPT Package BC, BCX
-
19506152498 Tie-Rod. Package BC, BCXTie-Rod. Package BC, BCX
-
23506152460 Moulding Strap. Package BC, BCXMoulding Strap. Package BC, BCX
-
27506152508 Upper Half-HousingUpper Half-Housing
-
28506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
29506152518 Lower Vibration RingLower Vibration Ring
-
31506152541 Steering Pad, Deep BlackSteering Pad, Deep Black
-
32506152548 IsolantIsolant
-
36506152560 Grip 148mmGrip 148mm
-
39506152582 WasherWasher
-
41506152758 Heating Element 32 Watt 2 WiresHeating Element 32 Watt 2 Wires
-
45506152703 Black Support Plate. Package BC, BCXBlack Support Plate. Package BC, BCX
-
46506152709 Handle Bar, Non Dyed Clear AnodizingHandle Bar, Non Dyed Clear Anodizing
-
51732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
53506152751 Steering SupportSteering Support
-
54250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip. Package BC, BCXTorx Screw M6 X 1.0 X 18, Scotch Grip. Package BC, BCX
-
55506152839 Tube Main WeldTube Main Weld
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
58506152081 LH Thread Ball Joint. InnerLH Thread Ball Joint. Inner
-
59506152684 RH Thread Ball Joint. OuterRH Thread Ball Joint. Outer
-
60506152570 Black Handlebar Extension. Package Enduro, AdrenalineBlack Handlebar Extension. Package Enduro, Adrenaline
-
60506152616 Black Handlebar Extension. Package X, XRSBlack Handlebar Extension. Package X, XRS
-
60506152617 Black Handlebar Extension. Package BC, BCXBlack Handlebar Extension. Package BC, BCX
