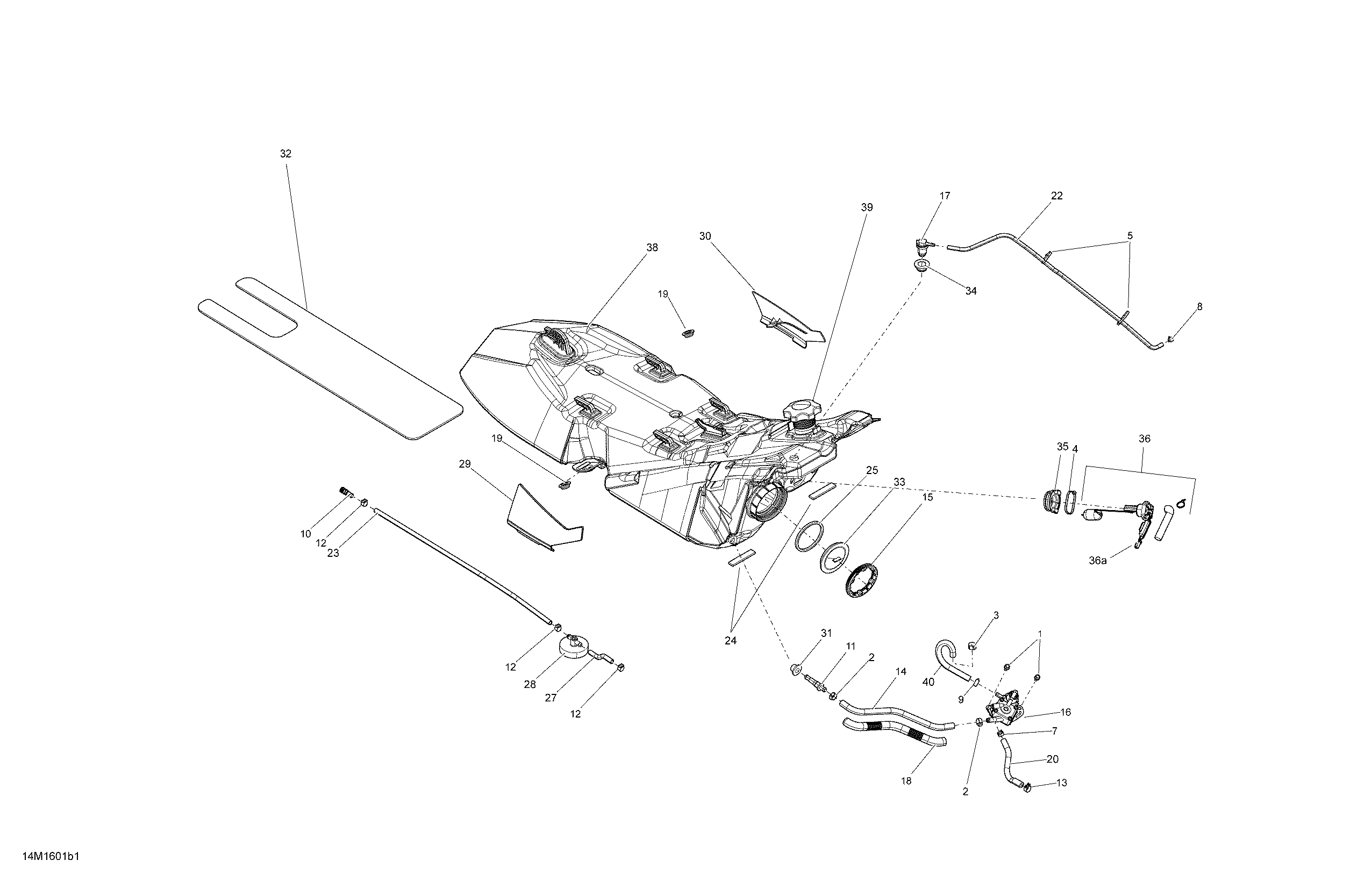

02- Fuel - 600 CARB для BRP Ski-Doo SUMMIT 600 CARB - 2016
-
№АртикулНазвание
-
1210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
2293650053 Crimp ClampCrimp Clamp
-
3293650125 Oetiker ClampOetiker Clamp
-
4293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
5414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
7414415200 Spring ClampSpring Clamp
-
8414554800 Spring ClampSpring Clamp
-
9414655700 Spring ClampSpring Clamp
-
10414872100 Fuel Filter Strainer. Internal Fuel Tank PartFuel Filter Strainer. Internal Fuel Tank Part
-
11414872700 Male ConnectorMale Connector
-
12513033010 Norma Spring Clamp. SUMMIT. Internal Fuel Tank PartNorma Spring Clamp. SUMMIT. Internal Fuel Tank Part
-
13513033029 Universal Spring ClampUniversal Spring Clamp
-
14513033165 Formed HoseFormed Hose
-
15513033180 Ring. SUMMITRing. SUMMIT
-
16513033184 Fuel PompeFuel Pompe
-
17513033188 Check ValveCheck Valve
-
18415080000 Tubing 16 mmTubing 16 mm
-
19513033326 Shoulder BushingShoulder Bushing
-
20513033327 Formed HoseFormed Hose
-
22415080200 Hose, Polyurethane, iD 5.7mmHose, Polyurethane, iD 5.7mm
-
23513033332 Hose. Internal Fuel Tank PartHose. Internal Fuel Tank Part
-
24513033813 GasketGasket
-
25513033334 Gasket. SUMMITGasket. SUMMIT
-
27513033352 Formed Hose. SUMMIT. Internal Fuel Tank PartFormed Hose. SUMMIT. Internal Fuel Tank Part
-
28513033353 Multi-Point Pick-Up. SUMMIT. Internal Fuel Tank PartMulti-Point Pick-Up. SUMMIT. Internal Fuel Tank Part
-
29513033418 RH CapRH Cap
-
30513033419 LH CapLH Cap
-
31513033435 GrommetGrommet
-
32513033588 Insulating FoamInsulating Foam
-
33513033591 Cap. SUMMITCap. SUMMIT
-
34513033596 GrommetGrommet
-
35513033606 GrommetGrommet
-
36513033642 Fuel Level Sensor Ass'y. Includes 36 To 36aFuel Level Sensor Ass'y. Includes 36 To 36a
-
36a710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
38513033696 Fuel Tank. SUMMITFuel Tank. SUMMIT
-
39513033720 Fuel Tank Cap, 87 OctaneFuel Tank Cap, 87 Octane
-
40513033343 Formed HoseFormed Hose
