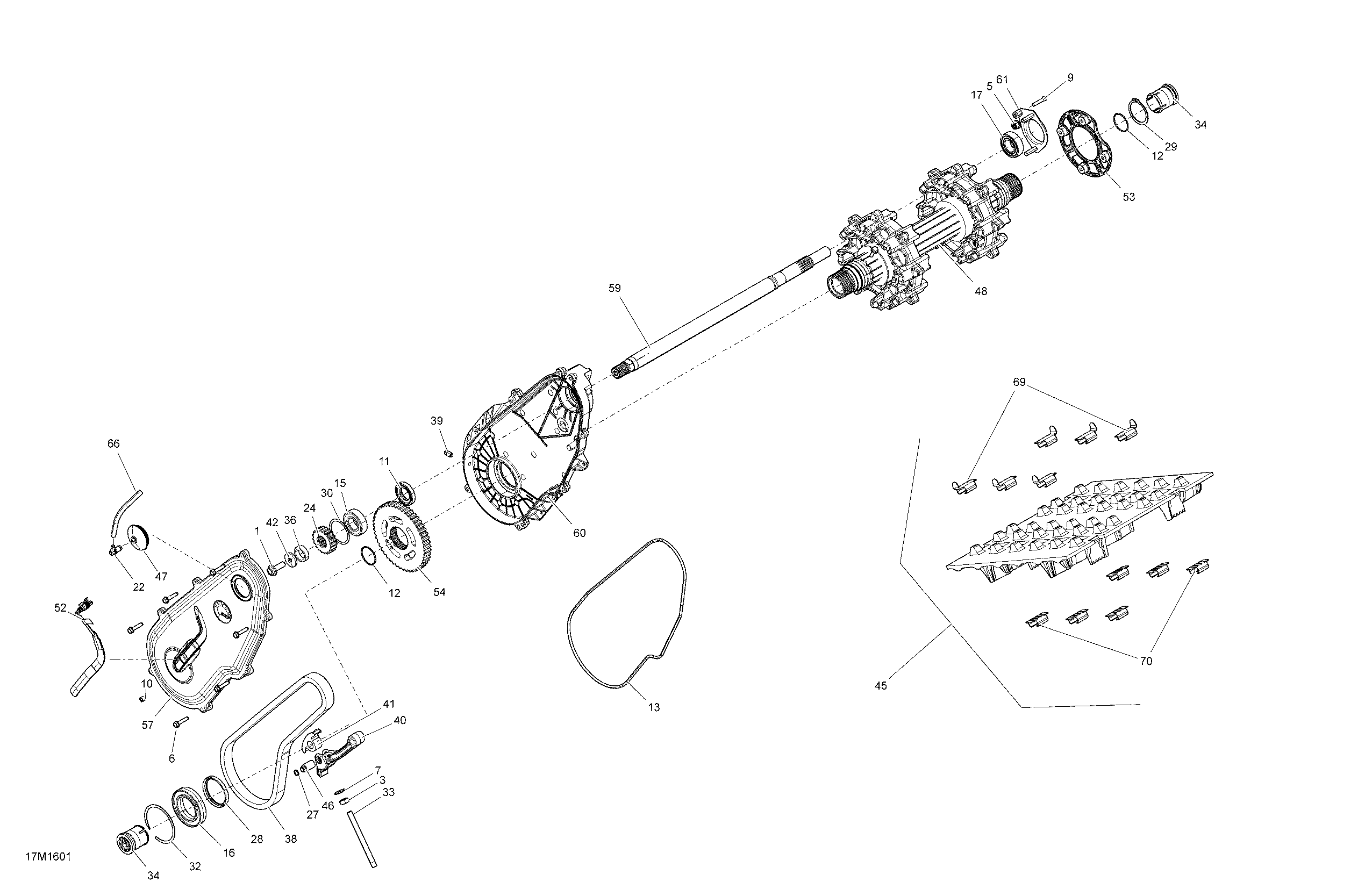

05- Drive - 600 CARB для BRP Ski-Doo SUMMIT 600 CARB - 2016
-
№АртикулНазвание
-
1207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
3232006414 Hex. Nut M10 X 1.5Hex. Nut M10 X 1.5
-
5233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
6210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
6250000360 Flanged Hex. Screw M6 X 1.0 X 30Flanged Hex. Screw M6 X 1.0 X 30
-
7250200100 Bonded WasherBonded Washer
-
9250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
10250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
11293250175 Oil SealOil Seal
-
12293300122 O-RingO-Ring
-
14293300177 O-RingO-Ring
-
15293350055 Ball BearingBall Bearing
-
16293350059 Ball BearingBall Bearing
-
17293350074 Ball BearingBall Bearing
-
22414580700 Male ConnectorMale Connector
-
24504152031 Sprocket, 19 TeethSprocket, 19 Teeth
-
27504152282 CirclipCirclip
-
28504152571 SealSeal
-
29504152572 CirclipCirclip
-
30504152576 CirclipCirclip
-
32504152582 CirclipCirclip
-
33504152602 Adjustment ScrewAdjustment Screw
-
34504152619 Magnetic CapMagnetic Cap
-
36504152628 ShimShim
-
38504152629 Drive Chain, 104 LinksDrive Chain, 104 Links
-
39504152636 Magnetic Plug 1/8 - 27 NPTFMagnetic Plug 1/8 - 27 NPTF
-
40504152685 Chain TensionerChain Tensioner
-
41504152739 Slider ChainSlider Chain
-
42504152784 Spring Washer M10Spring Washer M10
-
45504153222 Track Ass'y 16'' X 146'' X 2.2''PSHTrack Ass'y 16'' X 146'' X 2.2''PSH
-
46504152841 Tensioner AxleTensioner Axle
-
47504152860 CapCap
-
48504152869 Drive Axle Ass'yDrive Axle Ass'y
-
52504152896 Rotation SensorRotation Sensor
-
53504152949 Housing BearingHousing Bearing
-
57504153147 Chaincase Cover Ass'y. Includes Ref# 52 SensorChaincase Cover Ass'y. Includes Ref# 52 Sensor
-
59504153000 CountershaftCountershaft
-
60504153181 ChaincaseChaincase
-
61504153185 Bearing HousingBearing Housing
-
65504153275 SensorSensor
-
66415080200 Hose, Polyurethane, iD 5.7mmHose, Polyurethane, iD 5.7mm
-
68518325816 PlatePlate
-
69415129528 Track GuideTrack Guide
-
70415129529 CleatCleat
