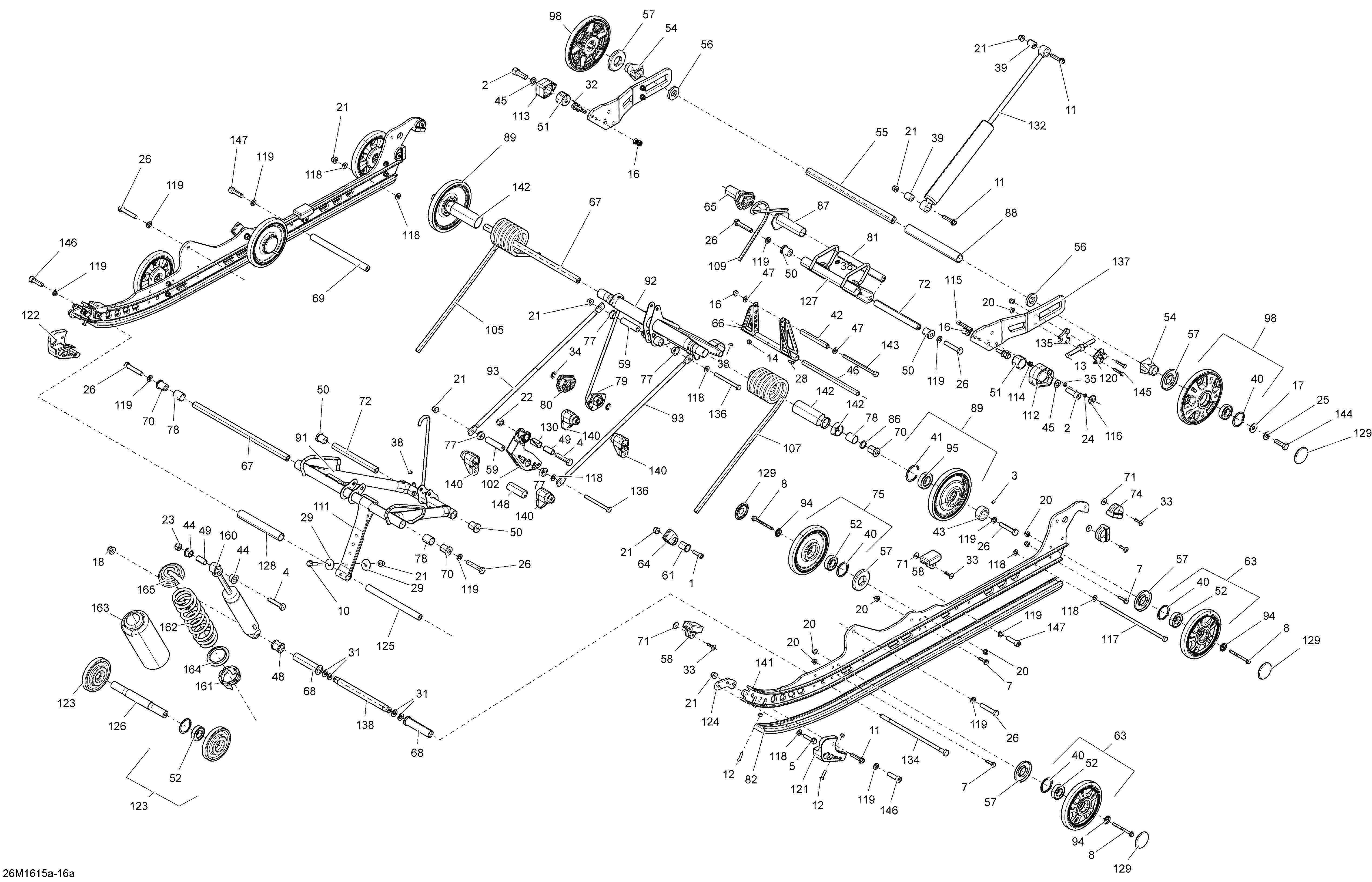

08- Rear Suspension - Package LT для BRP Ski-Doo TUNDRA - LT-Sport_4-STROKE - 2016
-
№АртикулНазвание
-
1205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
2205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
3206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
4207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
7207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
8207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
9207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
10207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
11207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
12208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
13230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
14232061404 Hexagonal Nut M6Hexagonal Nut M6
-
15232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
16232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
17503191910 WasherWasher
-
18233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
20233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
22233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
23233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
24234051410 Flat Washer M5Flat Washer M5
-
25234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
26250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
28250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
29250200128 Flat Washer 8 mmFlat Washer 8 mm
-
31250200143 Flat WasherFlat Washer
-
32250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
33293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
34293370013 E-CirclipE-Circlip
-
35293370068 CirclipCirclip
-
36293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
38408200700 Grease FittingGrease Fitting
-
39414936000 CushionCushion
-
40415129371 Retaining RingRetaining Ring
-
41415129780 Retaining RingRetaining Ring
-
42503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
43503168800 Retaining RingRetaining Ring
-
44503189117 CushionCushion
-
45503189148 WasherWasher
-
46503189156 Pivot Arm AxlePivot Arm Axle
-
47503189157 WasherWasher
-
48503189271 CushionCushion
-
49503189282 BushingBushing
-
50503189324 CushionCushion
-
51503189488 Block GuideBlock Guide
-
52503190396 Ball BearingBall Bearing
-
54503190428 Rear Wheel SpacerRear Wheel Spacer
-
55503190429 Rear AxleRear Axle
-
56503190432 WasherWasher
-
57503190434 Labyrinth SealLabyrinth Seal
-
58503190576 Rubber StopperRubber Stopper
-
59503190643 Axle Bar (Long)Axle Bar (Long)
-
61503190754 Retainer CushionRetainer Cushion
-
63503191152 Deep Black Wheel Ass'y, 147 mmDeep Black Wheel Ass'y, 147 mm
-
64503191183 Spring SupportSpring Support
-
65503191190 RH Spring CamRH Spring Cam
-
66503191209 Pivot ArmPivot Arm
-
67503191215 Upper ShaftUpper Shaft
-
68503191259 Center BushingCenter Bushing
-
69503191260 Axle StrapAxle Strap
-
70503191262 BushingBushing
-
71503191273 WasherWasher
-
74503191291 Rubber StopperRubber Stopper
-
75503191311 Black Wheel Ass'y, 147 mmBlack Wheel Ass'y, 147 mm
-
77503191555 Swivel BushingSwivel Bushing
-
78503191556 Extended BushingExtended Bushing
-
79503191565 LH Cam AdjusterLH Cam Adjuster
-
80503191566 RH Cam AdjusterRH Cam Adjuster
-
81503191608 Cam AxelCam Axel
-
82503192618 Black Slider, 154''Black Slider, 154''
-
86503191651 WasherWasher
-
87503191668 LH Spring CamLH Spring Cam
-
88503191736 Rear Spacer, LongRear Spacer, Long
-
89503191738 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
91503191752 Front ArmFront Arm
-
92503191762 Rear ArmRear Arm
-
93503191765 Link RodLink Rod
-
94503191820 Wheel Cup M6Wheel Cup M6
-
95503191982 Ball BearingBall Bearing
-
98503192128 Deep Black Wheel Ass'y, 165 mmDeep Black Wheel Ass'y, 165 mm
-
102503192211 RockerRocker
-
105503192137 Black RH Spring, SquareBlack RH Spring, Square
-
107503192136 Black LH Spring, SquareBlack LH Spring, Square
-
109503192282 Pivot SpringPivot Spring
-
111503192360 Stopper StrapStopper Strap
-
112503192426 LH BlocLH Bloc
-
113503192427 RH BlocRH Bloc
-
114503192436 Compression SpringCompression Spring
-
115503192437 RodeRode
-
116503192438 HandleHandle
-
117503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
118503192494 WasherWasher
-
119503192496 WasherWasher
-
120503192583 TensionerTensioner
-
121503192609 LH ProtectorLH Protector
-
122503192610 RH ProtectorRH Protector
-
123503192611 Black Wheel Ass'y, 100 mmBlack Wheel Ass'y, 100 mm
-
124503192612 PlatePlate
-
125503192613 Axle StrapAxle Strap
-
126503192644 Front Wheel AxleFront Wheel Axle
-
127503192647 Runner PivotRunner Pivot
-
128503192678 SpacerSpacer
-
129503192771 Black Wheel CapBlack Wheel Cap
-
130503193037 BushingBushing
-
132503193191 Rear Shock HPG SEALRear Shock HPG SEAL
-
134503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
135503193250 SpacerSpacer
-
136503193372 Screw M8 X 90Screw M8 X 90
-
137503193969 LH Rail PivotLH Rail Pivot
-
137503193970 RH Rail PivotRH Rail Pivot
-
138503193435 Pivot AxlePivot Axle
-
140503193894 Casted SupportCasted Support
-
141503193958 RunnerRunner
-
142572080700 BushingBushing
-
143732601197 Bolt M8, ShortBolt M8, Short
-
144250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
145207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
146205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
147205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
148503191552 CushionCushion
-
160503192266 Center ShockCenter Shock
-
161505073625 Adjustment CamAdjustment Cam
-
162503191880 Black SpringBlack Spring
-
163503193663 ProtectorProtector
-
164503191872 Spring GuideSpring Guide
-
165706200881 Spring StopperSpring Stopper
