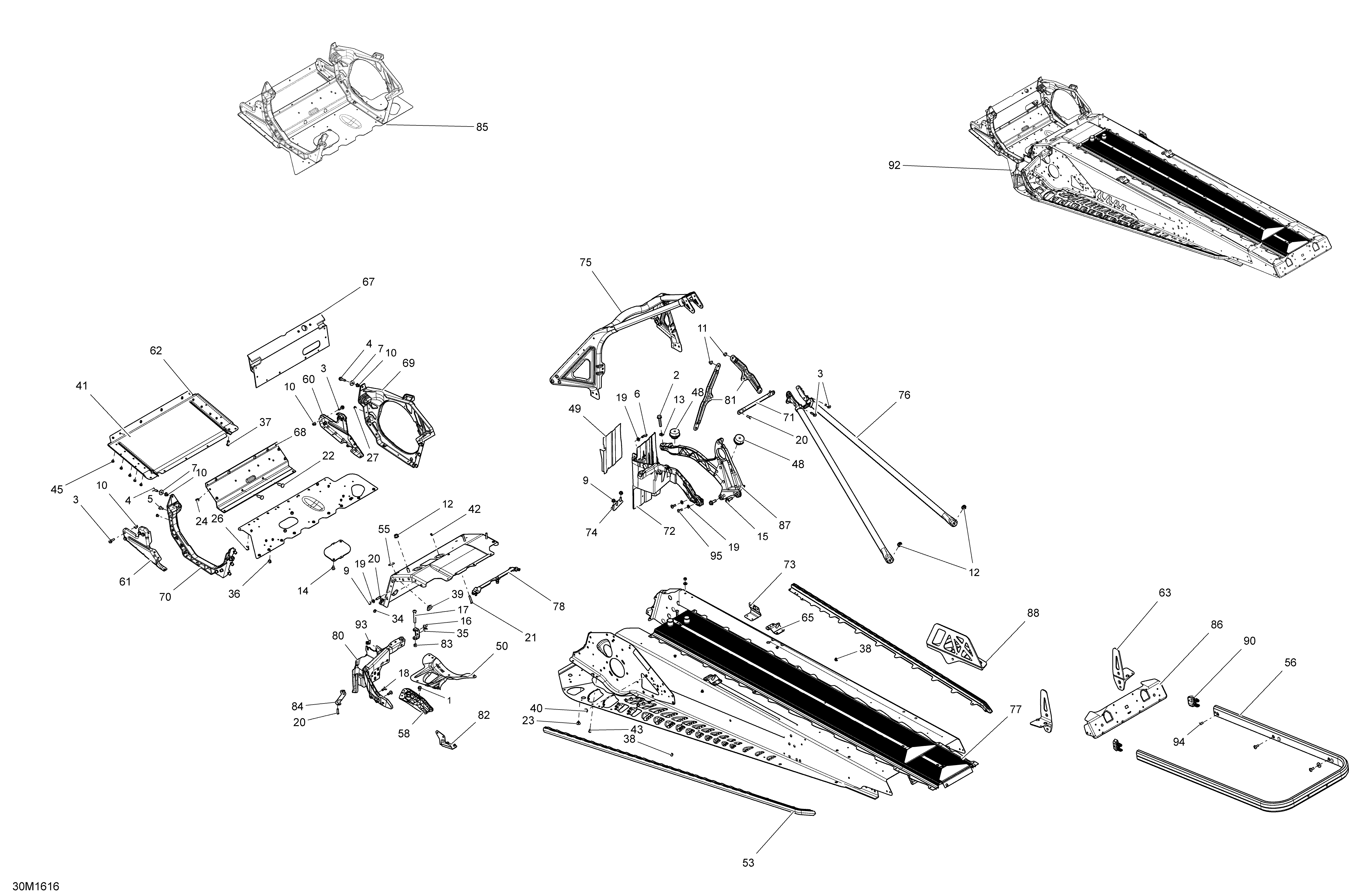

09- Frame для BRP Ski-Doo TUNDRA - LT-Sport_4-STROKE - 2016
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7224061201 Flat WasherFlat Washer
-
9233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
15250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
16250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
17250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
18250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
19250200039 Flat WasherFlat Washer
-
20250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
21250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
22250300038 Clinch StudClinch Stud
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
24293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
26293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
27293150144 Stavex RivetStavex Rivet
-
34293150146 Henrob RivetHenrob Rivet
-
35293150147 Hemlock RivetHemlock Rivet
-
36293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
37293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
38293730047 Black Dart 8 mmBlack Dart 8 mm
-
38293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
39293730052 Black PlugBlack Plug
-
40293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
41390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
42390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
43390909100 Avex RivetAvex Rivet
-
45390909200 Avex RivetAvex Rivet
-
46293450275 InsertInsert
-
48512060295 Rubber MountRubber Mount
-
49514054755 Heat ShieldHeat Shield
-
50518324874 RH ReinforcementRH Reinforcement
-
50518324875 LH ReinforcementLH Reinforcement
-
53518325159 RH Roller. 154''RH Roller. 154''
-
53518325160 LH Roller. 154''LH Roller. 154''
-
53518325377 RH Roller. 137''RH Roller. 137''
-
53518325378 LH Roller. 137''LH Roller. 137''
-
55518325560 Adhesive PatchAdhesive Patch
-
56518325577 Clear Rear Bumper. 137''Clear Rear Bumper. 137''
-
56518325579 Clear Rear Bumper. 154''Clear Rear Bumper. 154''
-
58518325782 RH DeflectorRH Deflector
-
58518325783 LH DeflectorLH Deflector
-
60518325949 RH Front MemberRH Front Member
-
61518325950 LH Front MemberLH Front Member
-
62518325951 Front Bottom PlateFront Bottom Plate
-
63518325955 RH Slide BracketRH Slide Bracket
-
63518325956 LH Slide BracketLH Slide Bracket
-
65518325973 RH Rear BaseRH Rear Base
-
65518325974 LH Rear BaseLH Rear Base
-
67518326140 Engine SupportEngine Support
-
68518326198 Front MemberFront Member
-
69518326328 RH Side MemberRH Side Member
-
70518326330 LH Side MemberLH Side Member
-
71518326355 Center Column SupportCenter Column Support
-
72518326472 Battery SupportBattery Support
-
73518326482 RH SupportRH Support
-
74518326550 Retaining PlateRetaining Plate
-
75518326557 Front Member, S ModuleFront Member, S Module
-
76518326559 Rear MemberRear Member
-
77518326641 Rear Radiator Ass'y, 137''Rear Radiator Ass'y, 137''
-
77518326692 Rear Radiator Ass'y, 154''Rear Radiator Ass'y, 154''
-
78518326656 SealSeal
-
80518326820 LH StirupLH Stirup
-
81518326848 Upper Column SupportUpper Column Support
-
82518326960 SupportSupport
-
83518326961 U-AttachU-Attach
-
84518326986 AttachAttach
-
85518327006 E-ModuleE-Module
-
86518327105 Rear CapRear Cap
-
87518327535 Brace Ass'yBrace Ass'y
-
88518328787 RH BracketRH Bracket
-
88518328788 LH BracketLH Bracket
-
90520000711 Full Moon RH CapFull Moon RH Cap
-
90520000712 Full Moon LH CapFull Moon LH Cap
-
92415129941 Frame Ass'y 154''Frame Ass'y 154''
-
92415130042 Frame Ass'y 137''Frame Ass'y 137''
-
93250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
94250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
95250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
