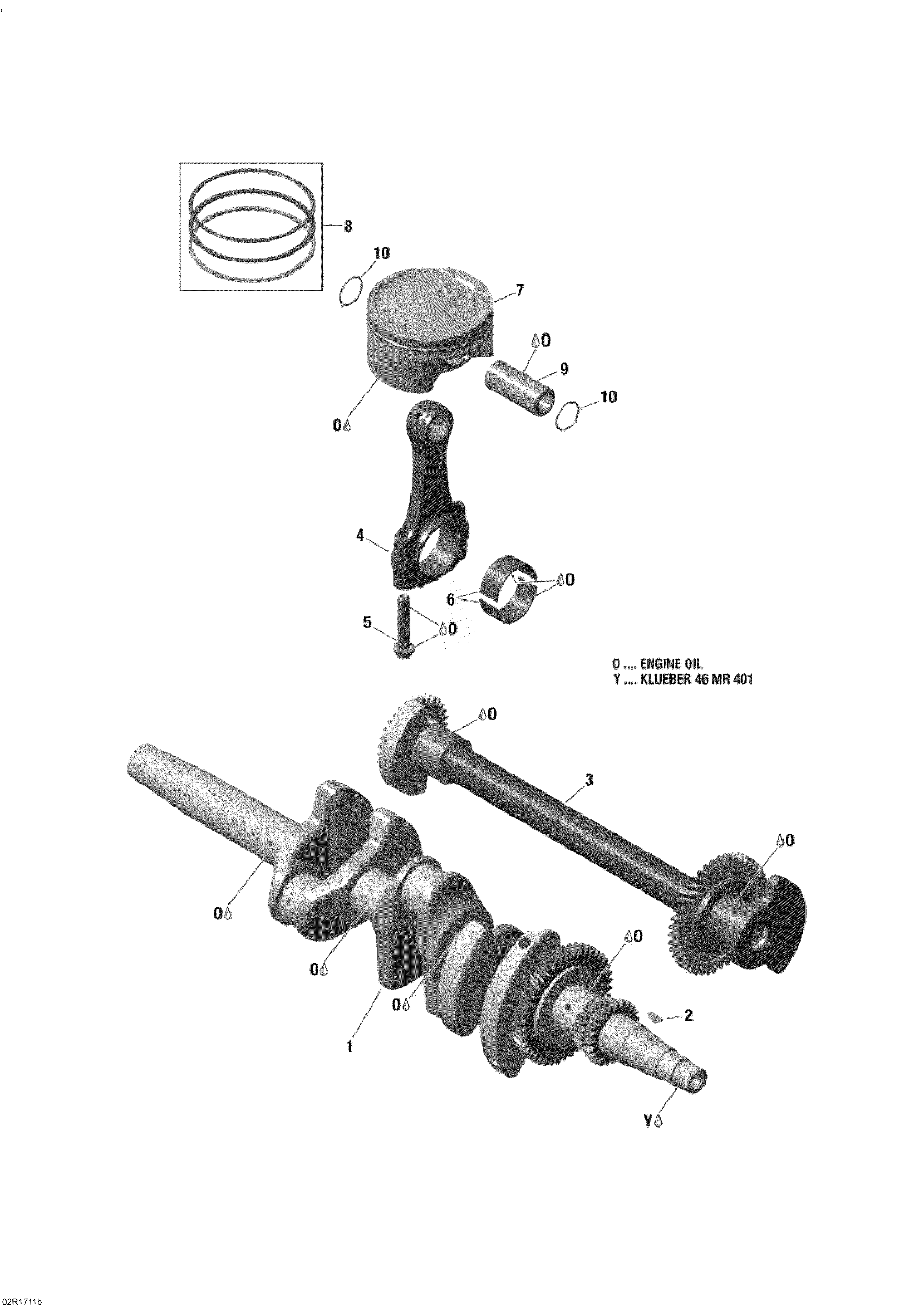

01- Crankshaft, Pistons And Balance Shaft - 1200 4-TEC для BRP Ski-Doo EXPEDITION - 4-STROKE - LE-SE - 2017
-
№АртикулНазвание
-
1420819796 Crankshaft Ass'y. Includes 1 To 2Crankshaft Ass'y. Includes 1 To 2
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3420820053 Balance ShaftBalance Shaft
-
4420917645 Connecting Rod Ass'y. Includes 4 To 5Connecting Rod Ass'y. Includes 4 To 5
-
5420641475 Connecting Rod Screw M9 X 1Connecting Rod Screw M9 X 1
-
6420933842 Plain BearingPlain Bearing
-
7420891890 Piston Ass'y, 90.958 mm. Includes 7 To 8Piston Ass'y, 90.958 mm. Includes 7 To 8
-
8420296774 Piston Ring SetPiston Ring Set
-
9420216274 Piston PinPiston Pin
-
10420245436 Piston Circlip. Included In Gasket KitPiston Circlip. Included In Gasket Kit
