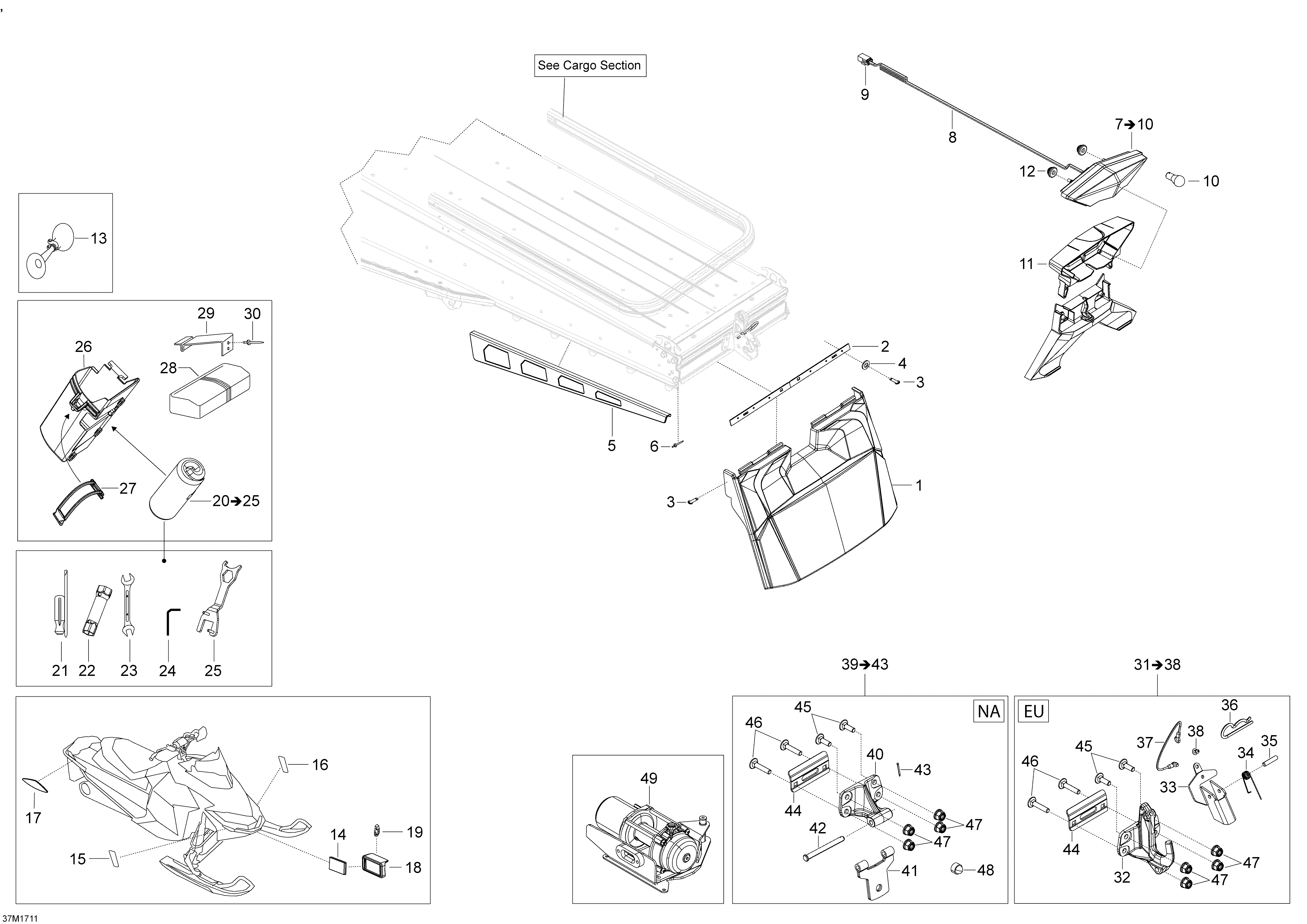

09- Utilities для BRP Ski-Doo EXPEDITION - 4-STROKE - LE-SE - 2017
-
№АртикулНазвание
-
1520001410 Snow Guard. Model EuropeSnow Guard. Model Europe
-
1520001406 Snow Guard. Model North AmericaSnow Guard. Model North America
-
2520001021 PlatePlate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
7520000848 Rear Light. Includes 7 To 10Rear Light. Includes 7 To 10
-
8520000849 Rear Wiring HarnessRear Wiring Harness
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10520000758 BulbBulb
-
11511000764 Rear Light CoverRear Light Cover
-
12705003666 Rubber GrommetRubber Grommet
-
13549011291 Horn. Model EuropeHorn. Model Europe
-
1421118 Reflector (Bright). Model EuropeReflector (Bright). Model Europe
-
15520001600 Yellow RH Reflector. Model LEYellow RH Reflector. Model LE
-
16520001601 Yellow LH Reflector. Model LEYellow LH Reflector. Model LE
-
17705002423 Amber Lateral Reflector. Model EuropeAmber Lateral Reflector. Model Europe
-
17705003412 Red Lateral Reflector. Model North AmericaRed Lateral Reflector. Model North America
-
18520000871 Reflector Support. Model EuropeReflector Support. Model Europe
-
1927120 Tie Rap. Model EuropeTie Rap. Model Europe
-
20529000078 Tool Kit. Includes 20 To 25Tool Kit. Includes 20 To 25
-
21529000004 Screw DriverScrew Driver
-
22529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
23529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
24520001142 Spacing ToolSpacing Tool
-
25520001442 WrenchWrench
-
26520000894 Tool Kit Rack. Engine 900 ACETool Kit Rack. Engine 900 ACE
-
27520000528 Latch. Engine 900 ACELatch. Engine 900 ACE
-
28708200043 Tool Box. Engine 1200 4-TECTool Box. Engine 1200 4-TEC
-
295346728 Tool Kit Rack. Engine 1200 4-TECTool Kit Rack. Engine 1200 4-TEC
-
3036108 Rivet. Engine 1200 4-TECRivet. Engine 1200 4-TEC
-
31520001475 Hitch Ass'y. Model Europe. Includes 31 To 38Hitch Ass'y. Model Europe. Includes 31 To 38
-
3541012 PinPin
-
3641029 Hair pinHair pin
-
38390909100 Avex RivetAvex Rivet
-
39520001398 Hitch Ass'y. Model North America. Includes 39 To 43Hitch Ass'y. Model North America. Includes 39 To 43
-
42560309200 Pin-RetainerPin-Retainer
-
4341031 Cotter PinCotter Pin
-
44520000727 PlatePlate
-
45207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
46207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
47233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4828056 Cover. Model North AmericaCover. Model North America
-
49619400069 Winch Kit. Model SEWinch Kit. Model SE
-
50705011222 Amber Reflector. Model SEAmber Reflector. Model SE
-
51520001744 LH Reflector Mount. Model SELH Reflector Mount. Model SE
-
51520001746 RH Reflector Mount. Model SERH Reflector Mount. Model SE
-
52205082044 Socket Head Screw M8 X 20. Model SESocket Head Screw M8 X 20. Model SE
-
53233281414 Hex. Flanged Elastic Nut M8. Model SEHex. Flanged Elastic Nut M8. Model SE
-
5428056 Cover. Model SECover. Model SE
-
55233251494 Elastic Flanged Nut M5. Model SEElastic Flanged Nut M5. Model SE
