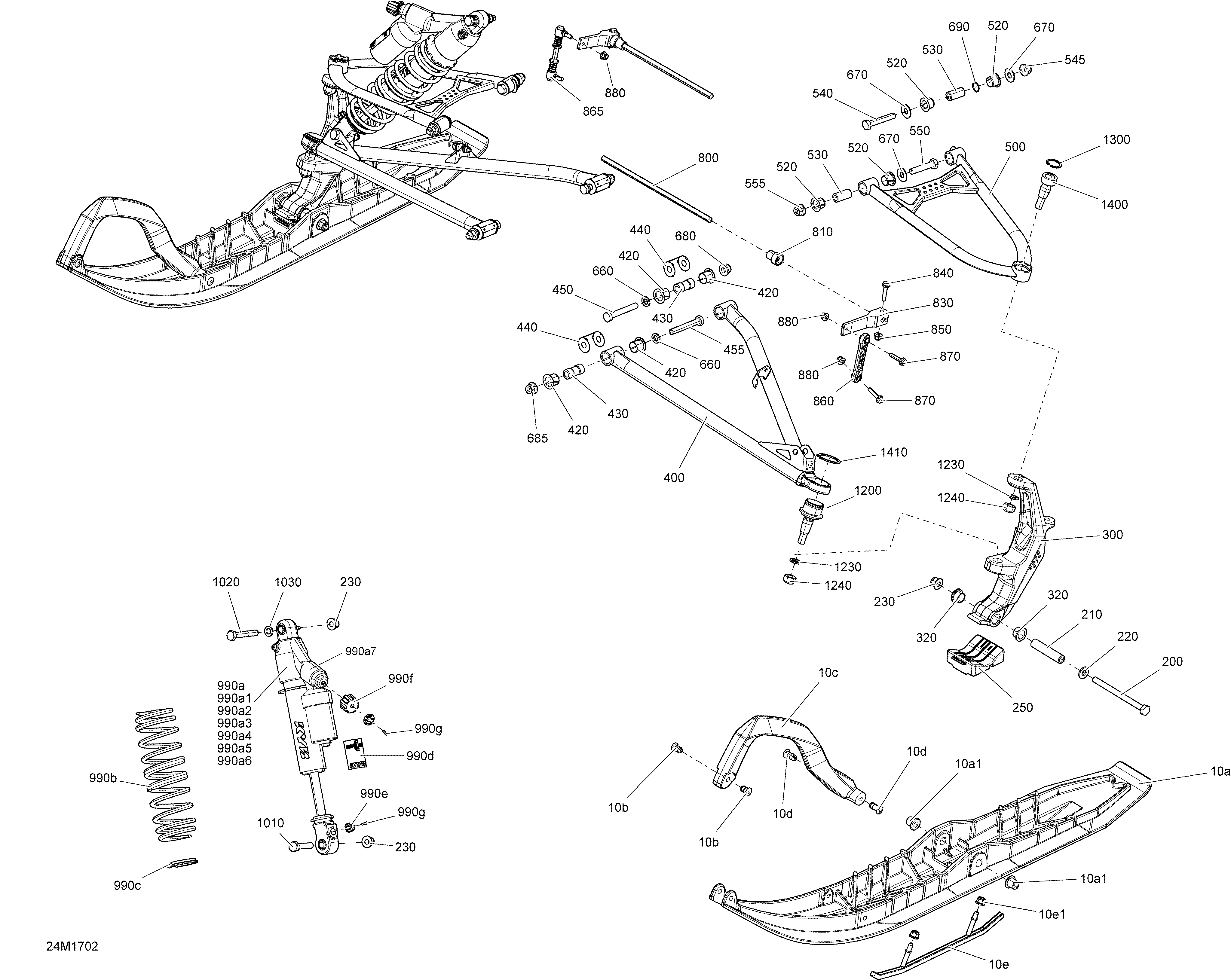

07- Front Suspension And Ski - All Models для BRP Ski-Doo FREERIDE - 2017
-
№АртикулНазвание
-
10a>10a1505073354 Green DS 2 Ski. Includes 10a to 10a1Green DS 2 Ski. Includes 10a to 10a1
-
10a1505071781 Ski StopperSki Stopper
-
10b505071812 RetainerRetainer
-
10c505072976 Black HandleBlack Handle
-
10d505072133 RetainerRetainer
-
10e>10e1860201044 Carbide Runner Kit. Includes 10e to 10e1Carbide Runner Kit. Includes 10e to 10e1
-
10e1233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
220503192496 WasherWasher
-
230233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
250505072594 Ski StopperSki Stopper
-
300505074076 Blue LH Ski LegBlue LH Ski Leg
-
300505074077 Blue RH Ski LegBlue RH Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
400505073584 Lower RH ArmLower RH Arm
-
400505073583 Lower LH ArmLower LH Arm
-
420505072208 BushingBushing
-
430505072214 BushingBushing
-
440505072634 Wear PlateWear Plate
-
450250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
500505073588 Uper LH ArmUper LH Arm
-
500505073589 Uper RH ArmUper RH Arm
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073609 Carbide Runner KitCarbide Runner Kit
-
810505072786 BushingBushing
-
830505073176 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505073172 Double Ball Joint LinkDouble Ball Joint Link
-
865860200811 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
990a>990a7505073124 RH Front Shock. Includes 990a to 990a7RH Front Shock. Includes 990a to 990a7
-
990a>990a7505073123 LH Front Shock. Includes 990a to 990a7LH Front Shock. Includes 990a to 990a7
-
990a1415093807 O-RingO-Ring
-
990a2415093806 Piston RingPiston Ring
-
990a3505070398 Air ValveAir Valve
-
990a4505070399 ScrewScrew
-
990a5505070400 O-RingO-Ring
-
990a6415093804 O-RingO-Ring
-
990a7415130165 Base ValveBase Valve
-
990b505072760 Deep Black SpringDeep Black Spring
-
990c503194270 Spring StopperSpring Stopper
-
990d516005534 Shock Adjustment DecalShock Adjustment Decal
-
990e505072753 Adjustment KnobAdjustment Knob
-
990f503193033 Shock Adjuster KnobShock Adjuster Knob
-
990g250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
1010207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
1020207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
1030503189564 WasherWasher
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
-
6000503192496 WasherWasher
-
6001233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
6002505072594 Ski StopperSki Stopper
-
6003233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
