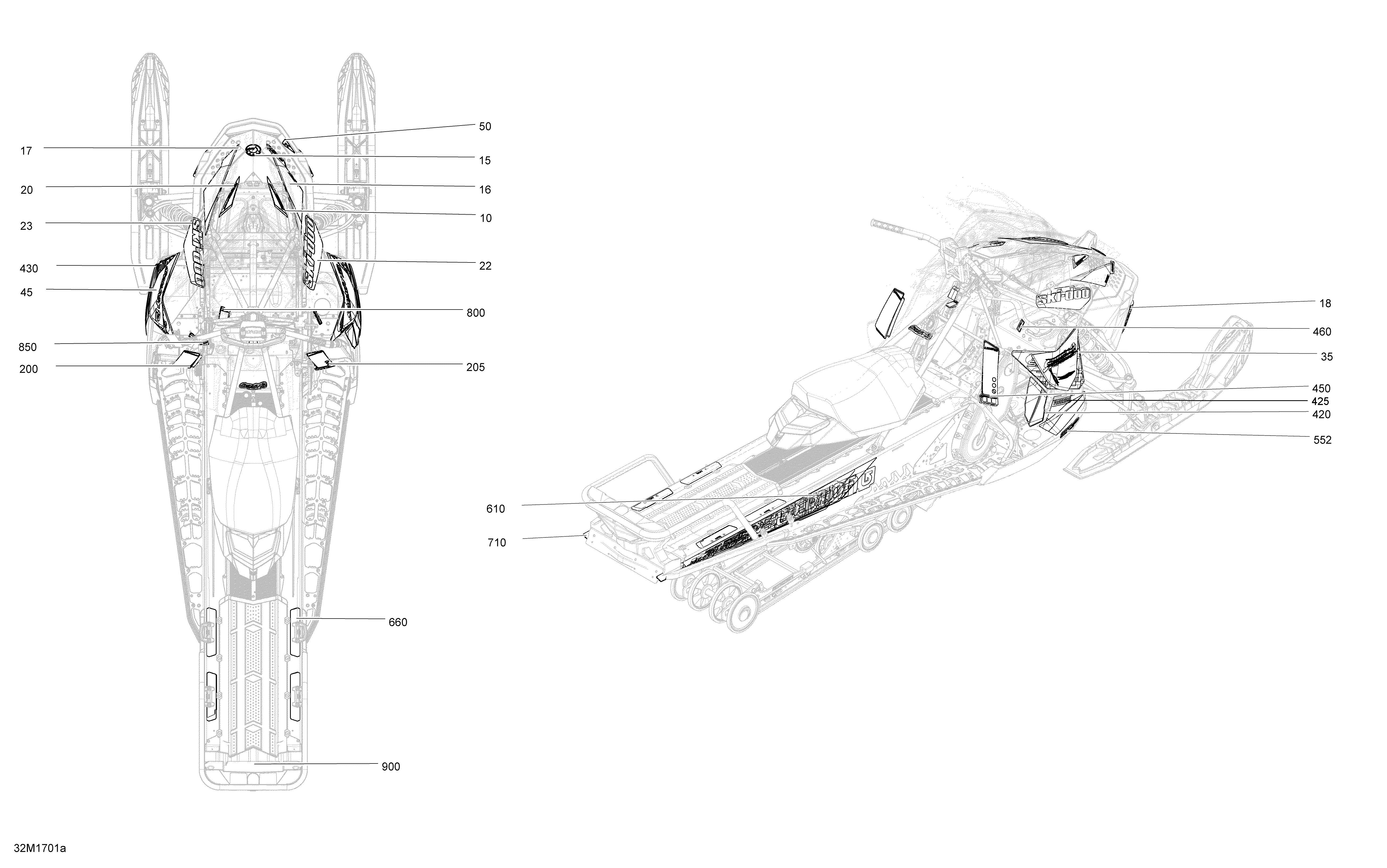

09- Decals - All Models для BRP Ski-Doo FREERIDE - 2017
-
№АртикулНазвание
-
10516008053 RH Hood Decal, 800RERH Hood Decal, 800RE
-
15516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
18516008054 Bottom Pan Decal FreerideBottom Pan Decal Freeride
-
20516008052 LH Hood Decal, 800RELH Hood Decal, 800RE
-
22516008056 RH Hood DecalRH Hood Decal
-
23516008055 LH Hood DecalLH Hood Decal
-
35516008058 RH Side Decal ''Top F''RH Side Decal ''Top F''
-
45516008057 LH Side Decal ''Top F''LH Side Decal ''Top F''
-
200516005055 Warning Decal, SecurityWarning Decal, Security
-
205516005056 Warning Decal, SecurityWarning Decal, Security
-
420516008066 RH Trim Decal ''Bottom F''RH Trim Decal ''Bottom F''
-
425516008113 Lower Trim Decal ''Freeride''Lower Trim Decal ''Freeride''
-
430516008065 LH Trim Decal '' Bottom F''LH Trim Decal '' Bottom F''
-
450516005226 Warning Decal, Pictogram. Model EuropeWarning Decal, Pictogram. Model Europe
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
552516008045 Rotax Power DecalRotax Power Decal
-
610516008060 RH Frame 137 Decal. Model 137RH Frame 137 Decal. Model 137
-
610516008062 RH Frame 146 Decal. Model 146RH Frame 146 Decal. Model 146
-
610516008064 RH Frame 154 Decal. Model 154RH Frame 154 Decal. Model 154
-
660516006860 Rear Top Frame Decal. Model 137Rear Top Frame Decal. Model 137
-
660516006860 Rear Top Frame Decal. Model 146Rear Top Frame Decal. Model 146
-
660516006860 Rear Top Frame Decal. Model 154Rear Top Frame Decal. Model 154
-
665516006859 RH Top Frame Decal, XS-XM. Model 137RH Top Frame Decal, XS-XM. Model 137
-
670516006858 LH Top Frame Decal, XS-XM. Model 137LH Top Frame Decal, XS-XM. Model 137
-
710516008059 LH Frame 137 Decal. Model 137LH Frame 137 Decal. Model 137
-
710516008061 LH Frame 146 Decal. Model 146LH Frame 146 Decal. Model 146
-
710516008063 LH Frame 154 Decal. Model 154LH Frame 154 Decal. Model 154
-
800516007661 Warning Decal, InjectorsWarning Decal, Injectors
-
850516007492 Decal CommodoDecal Commodo
