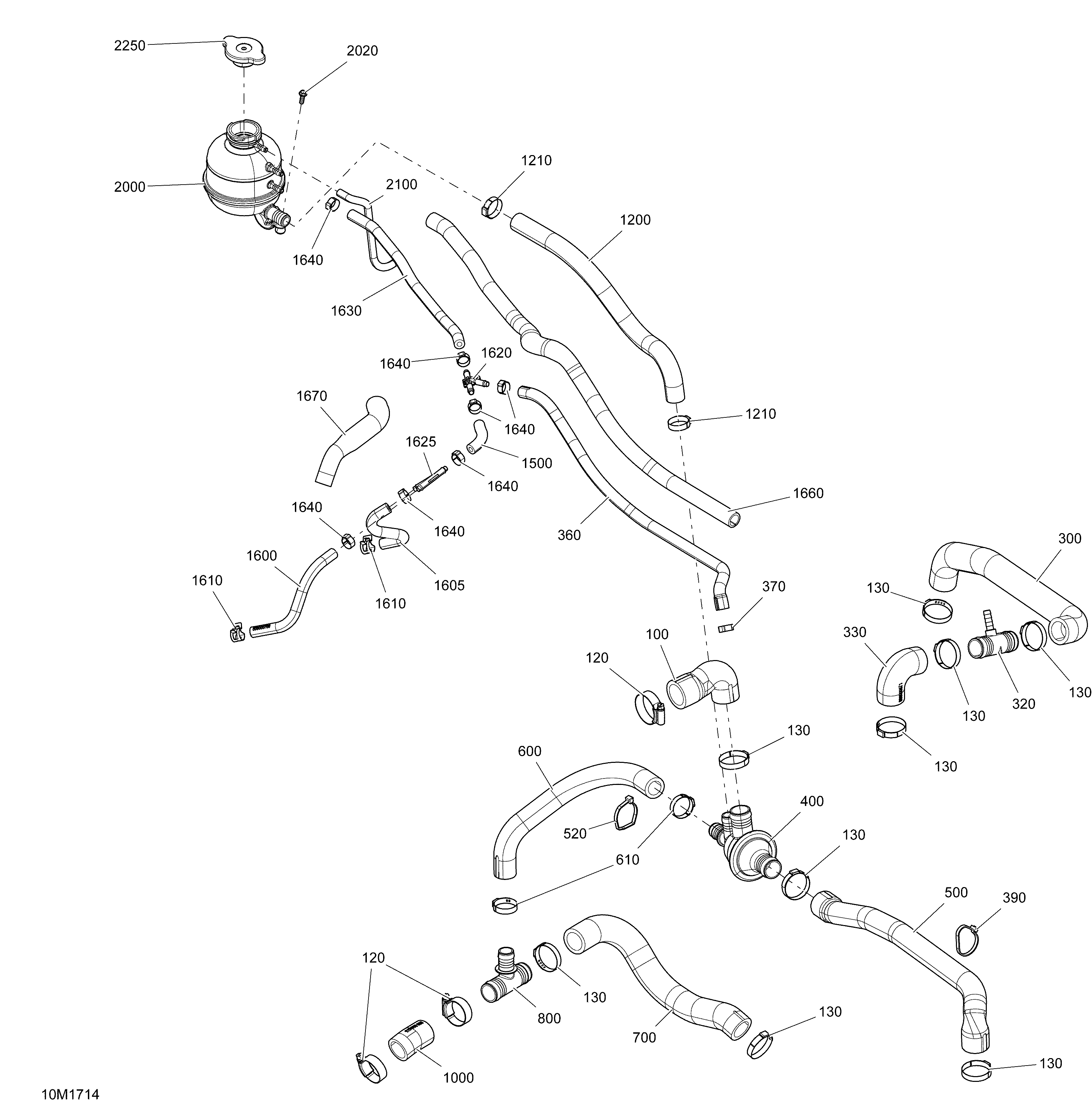

01- Cooling System - 600 CARB для BRP Ski-Doo MXZ - 2-STROKE - 600 CARB - 2017
-
№АртикулНазвание
-
100509000678 Engine Outlet HoseEngine Outlet Hose
-
120509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
130509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
300509000670 Radiator HoseRadiator Hose
-
320509000510 T-FittingT-Fitting
-
330509000671 Radiator HoseRadiator Hose
-
360509000502 Bleeder HoseBleeder Hose
-
370293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
390414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
400509000499 Thermostat HousingThermostat Housing
-
500509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
520293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
600509000672 Bypass HoseBypass Hose
-
610293650099 Crimp Clamp, 28.6-706RCrimp Clamp, 28.6-706R
-
700509000673 Radiator HoseRadiator Hose
-
800509000372 T-FittingT-Fitting
-
1000509000675 Engine Inlet HoseEngine Inlet Hose
-
1200509000676 Filling HoseFilling Hose
-
1210509000442 Gear Clamp, 25.6-706RGear Clamp, 25.6-706R
-
1500415129508 Bleeder HoseBleeder Hose
-
1600509000769 Bleeder HoseBleeder Hose
-
1605509000768 Bleeder HoseBleeder Hose
-
1610293650210 Spring ClampSpring Clamp
-
1620293710140 Y-FittingY-Fitting
-
1625293710059 Y-FittingY-Fitting
-
1630415129508 Bleeder HoseBleeder Hose
-
1640293650046 Oetiker Clamp, 14.5-706ROetiker Clamp, 14.5-706R
-
1660415080000 Tubing 16 mmTubing 16 mm
-
1670513033231 Protector Tube, 16 mmProtector Tube, 16 mm
-
2000509000368 Coolant TankCoolant Tank
-
2020241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
2100415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
2250509000180 Pressure CapPressure Cap
