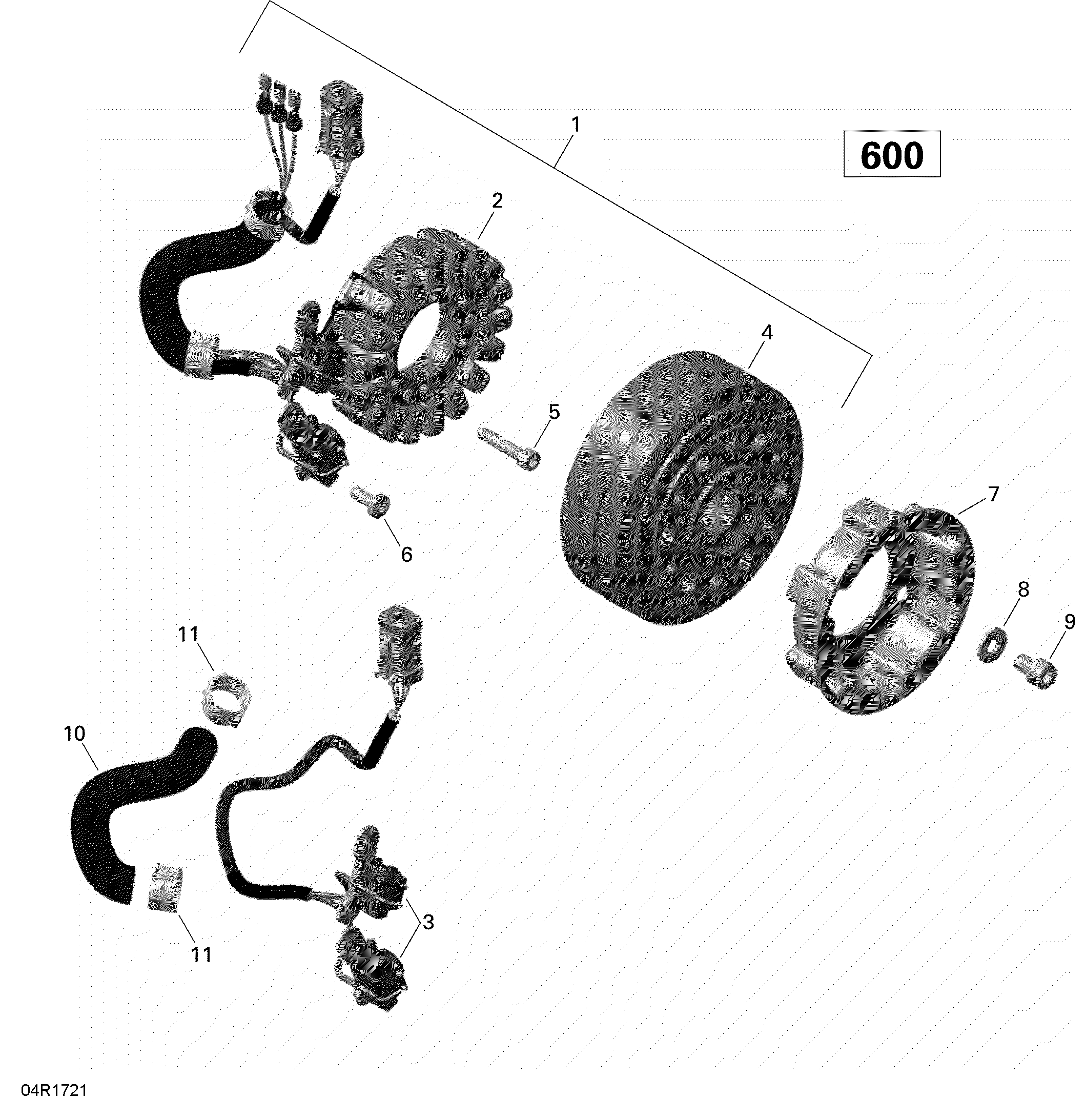

03- Magneto - 600 CARB для BRP Ski-Doo MXZ - 2-STROKE - 600 CARB - 2017
-
№АртикулНазвание
-
2420889904 Stator Plate. Includes 2 to 3Stator Plate. Includes 2 to 3
-
3420966804 Pickup Ass'yPickup Ass'y
-
4420665722 FlywheelFlywheel
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640324 Torx Screw M6 X 16Torx Screw M6 X 16
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10420460871 TubeTube
-
11420960896 Conduit ClipConduit Clip
