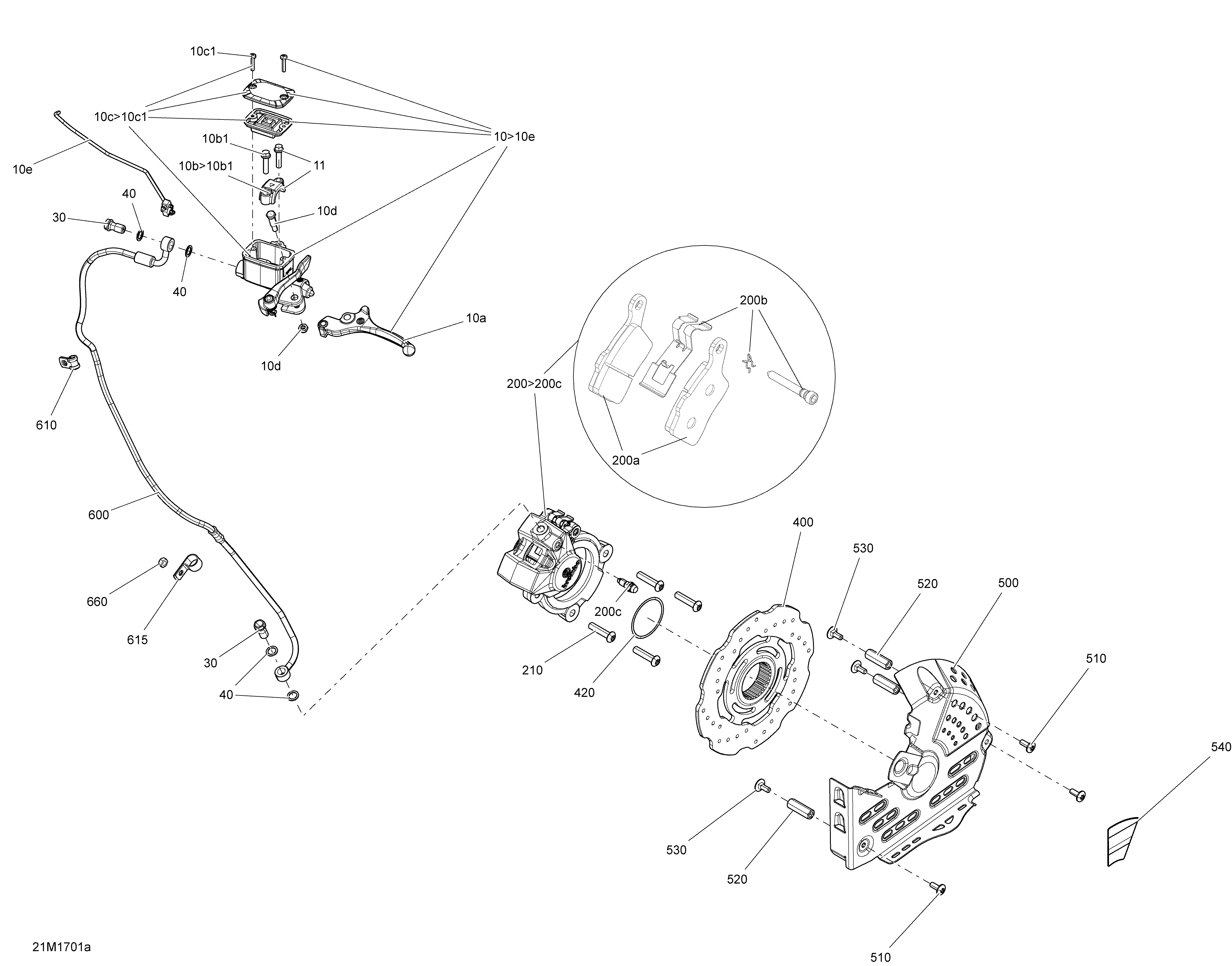

06- Brakes для BRP Ski-Doo RENEGADE - 2-STROKE - 800R E-TEC - 2017
-
№АртикулНазвание
-
10>10e507032596 Master Cylinder Ass'y. Includes 10 to 10eMaster Cylinder Ass'y. Includes 10 to 10e
-
10a507032476 LeverLever
-
10b507032477 Clamp And Screw KitClamp And Screw Kit
-
10b1250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10c507032478 Master Cylinder Reservoir Ass'yMaster Cylinder Reservoir Ass'y
-
10c1415129356 Screw M4 X 20Screw M4 X 20
-
10d415030000 Pin Ass'yPin Ass'y
-
10e507032592 MicroswitchMicroswitch
-
11719000049 Clamps KitClamps Kit
-
12250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30507032551 Banjo BoltBanjo Bolt
-
40705600310 Copper WasherCopper Washer
-
200>200c507032594 Brake caliper assembly. Package X-RS, Backcountry X. Includes 200 to 200cBrake caliper assembly. Package X-RS, Backcountry X. Includes 200 to 200c
-
200>200c507032602 Brake caliper assembly. Package BackCountry, Enduro. Includes 200 to 200cBrake caliper assembly. Package BackCountry, Enduro. Includes 200 to 200c
-
200a507032473 Brake Pads KitBrake Pads Kit
-
200b507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
200c507032475 BleederBleeder
-
210250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
400507032487 Disk. Package Enduro, XRSDisk. Package Enduro, XRS
-
400507032554 Disk. Package Backcountry, Backcountry XDisk. Package Backcountry, Backcountry X
-
420293300134 O-RingO-Ring
-
500507032492 Black Disk ProtectorBlack Disk Protector
-
510250000717 Torx Head Screw M6 X 1.0 X 16Torx Head Screw M6 X 1.0 X 16
-
520507032497 Threaded TubeThreaded Tube
-
530207761644 Carriage Bolt M6 X 1.0 X 16Carriage Bolt M6 X 1.0 X 16
-
540516005525 Warning DecalWarning Decal
-
600507032528 Hose. Package Backcountry, Backcountry XHose. Package Backcountry, Backcountry X
-
600507032540 Hose. Package Enduro, XRSHose. Package Enduro, XRS
-
610293650256 ClampClamp
-
615518321570 Open ClampOpen Clamp
-
660232561414 Elastic Stop Nut M6 x 1.0Elastic Stop Nut M6 x 1.0
