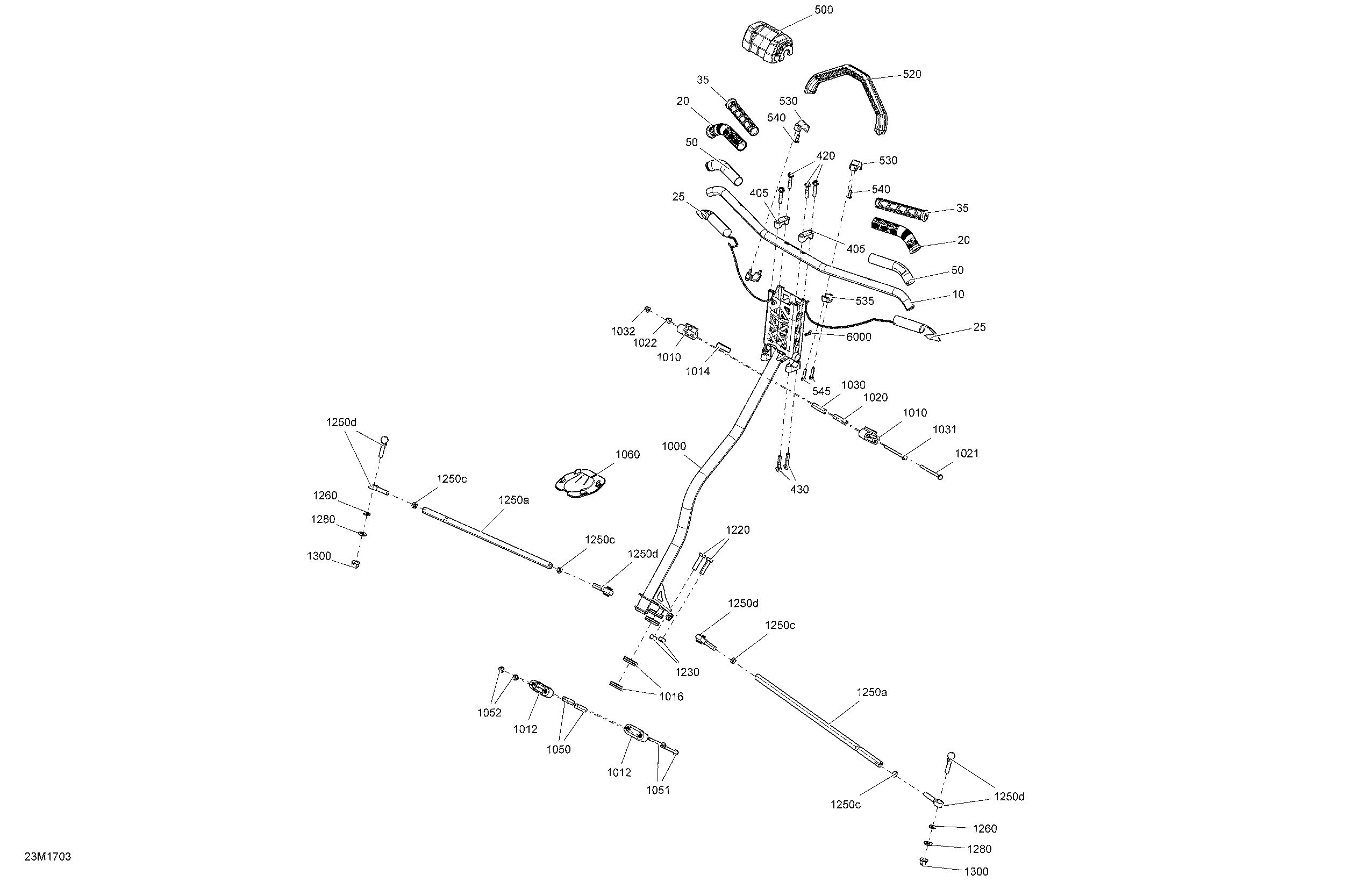

07- Steering для BRP Ski-Doo RENEGADE - 2-STROKE - 800R E-TEC - 2017
-
№АртикулНазвание
-
10506152709 Handle Bar, Non Dyed Clear AnodizingHandle Bar, Non Dyed Clear Anodizing
-
20506152560 Grip 148mmGrip 148mm
-
25506152758 Heating Element 32 Watt 2 WiresHeating Element 32 Watt 2 Wires
-
35515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
50506152548 InsulantInsulant
-
400506152570 Black Handlebar Extension. Package EnduroBlack Handlebar Extension. Package Enduro
-
400506152616 Black Handlebar Extension. Package X-RSBlack Handlebar Extension. Package X-RS
-
400506152617 Black Handlebar Extension. Package Backcountry, Backcountry XBlack Handlebar Extension. Package Backcountry, Backcountry X
-
405506152750 Steering SupportSteering Support
-
410>410a506152751 Steering Support. Includes 410 to 410aSteering Support. Includes 410 to 410a
-
410a506152750 Steering SupportSteering Support
-
420250000852 Hexagonal Flange Screw M8 X 1.25 x 60Hexagonal Flange Screw M8 X 1.25 x 60
-
430250000852 Hexagonal Flange Screw M8 X 1.25 x 60Hexagonal Flange Screw M8 X 1.25 x 60
-
500506152541 Steering Pad, Deep BlackSteering Pad, Deep Black
-
520506152460 Moulding Strap. Package Backcountry, Backcountry XMoulding Strap. Package Backcountry, Backcountry X
-
530506152703 Black Support Plate. Package Backcountry, Backcountry XBlack Support Plate. Package Backcountry, Backcountry X
-
535719000049 Clamps Kit. Package Backcountry, Backcountry XClamps Kit. Package Backcountry, Backcountry X
-
540250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip. Package Backcountry, Backcountry XTorx Screw M6 X 1.0 X 18, Scotch Grip. Package Backcountry, Backcountry X
-
545250000447 Hex Flanged Screw M6 X 25. Package Backcountry, Backcountry XHex Flanged Screw M6 X 25. Package Backcountry, Backcountry X
-
1000506152962 Steering ColumnSteering Column
-
1010506152508 Upper Half-HousingUpper Half-Housing
-
1012506152217 Lower Half-HousingLower Half-Housing
-
1012506152588 Lower Half-Housing. Package X-RSLower Half-Housing. Package X-RS
-
1014506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
1016506152518 Lower Vibration RingLower Vibration Ring
-
1020506152297 Housing BushingHousing Bushing
-
1021207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
1022233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1030506152297 Housing BushingHousing Bushing
-
1031207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
1032233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1050506152297 Housing BushingHousing Bushing
-
1051207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
1052233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1060506152163 PlatePlate
-
1220207004034 Hex. Screw M10 X 1.5 X 40Hex. Screw M10 X 1.5 X 40
-
1230233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
1250a506152496 Tie-RodTie-Rod
-
1250a506152498 Tie-Rod. Package Backcountry, Backcountry XTie-Rod. Package Backcountry, Backcountry X
-
1250c250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
1250c732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
1250d506152684 RH Thread Ball JointRH Thread Ball Joint
-
1250d506152081 LH Thread Ball JointLH Thread Ball Joint
-
1260503192496 Washer. Package X-RSWasher. Package X-RS
-
1280506152582 WasherWasher
-
1300233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
6000250000760 Torx Screw Truss Head K50X20 T20. Package EnduroTorx Screw Truss Head K50X20 T20. Package Enduro
